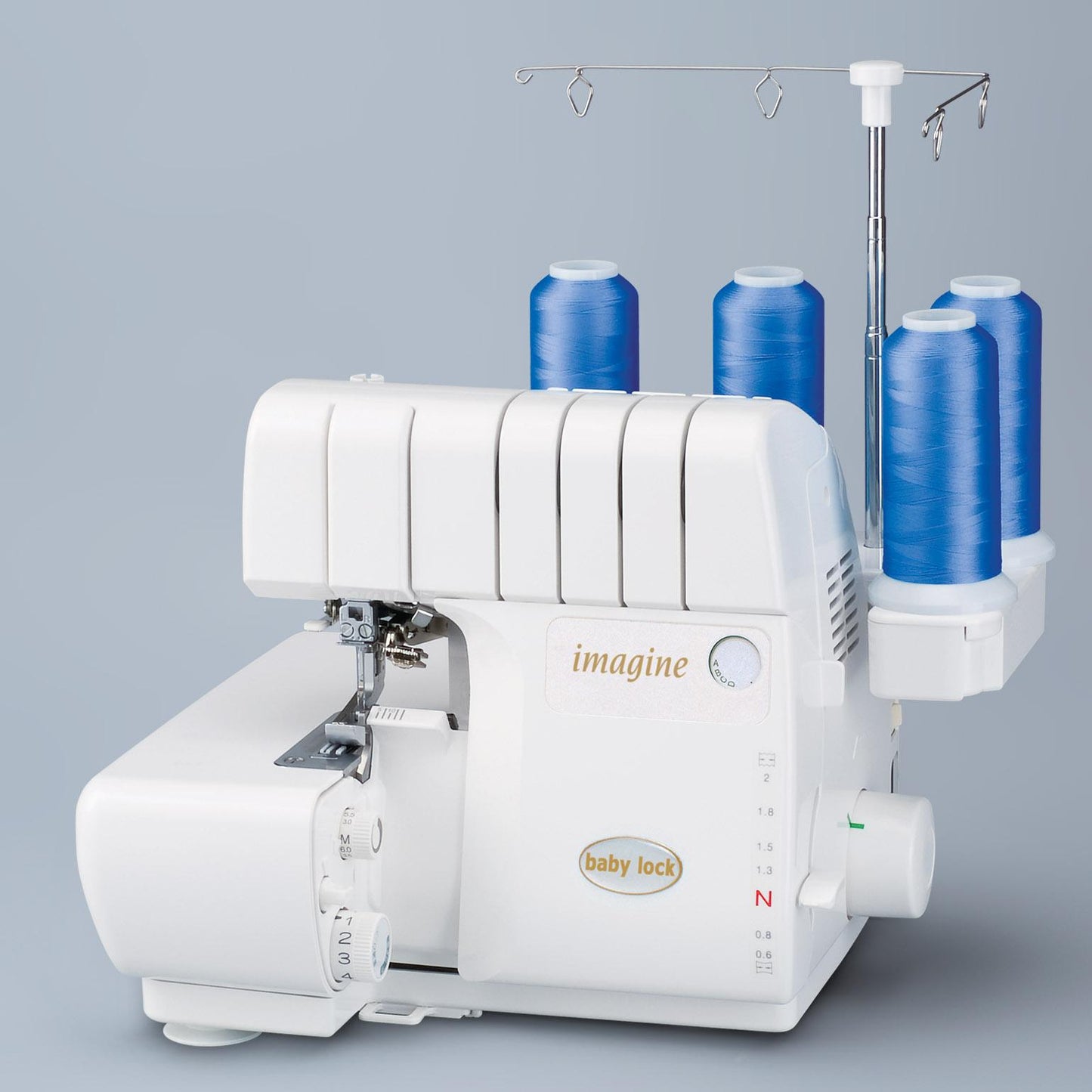

Imagine

Imagine

BLE1AT-2

Specifications, accessories and support materials are included below for your reference.

Top Imagine features:

  • JetAir™ Threading for loopers
  • Automatic Thread Delivery (ATD) System - no tensions
  • Built-in needle threader
  • Automatic rolled hem stitch

What's in the box

  • Instruction manual
  • Quick reference threading guide
  • Combination foot control & power cord
  • Package of assorted sized needles Organ HAx1SP/CR
  • Lint brush/needle insert tool
  • Allen wrench
  • Medium screwdriver
  • Screwdriver
  • Tweezers
  • Upper cutting blade for replacement
  • Looper threading tool
  • 2 x needle clamp screws
  • 4 x Thread nets
  • 4 x Spool caps with sponge
  • 4 x Spool caps
  • 4 x Cone holders
  • Machine cover
  • Standard grooved presser foot

Downloads

Imagine Specifications

Specifications
Machine Type 4-Thread Overlocker
Threading System JetAir™
Key Technology
Number of Threads 4
RevolutionAir™ Threading – Needles & Loopers ✘
ExtraordinAir™ Threading ✘
NEW JetAir™ (easier looper threader engagement) ✘

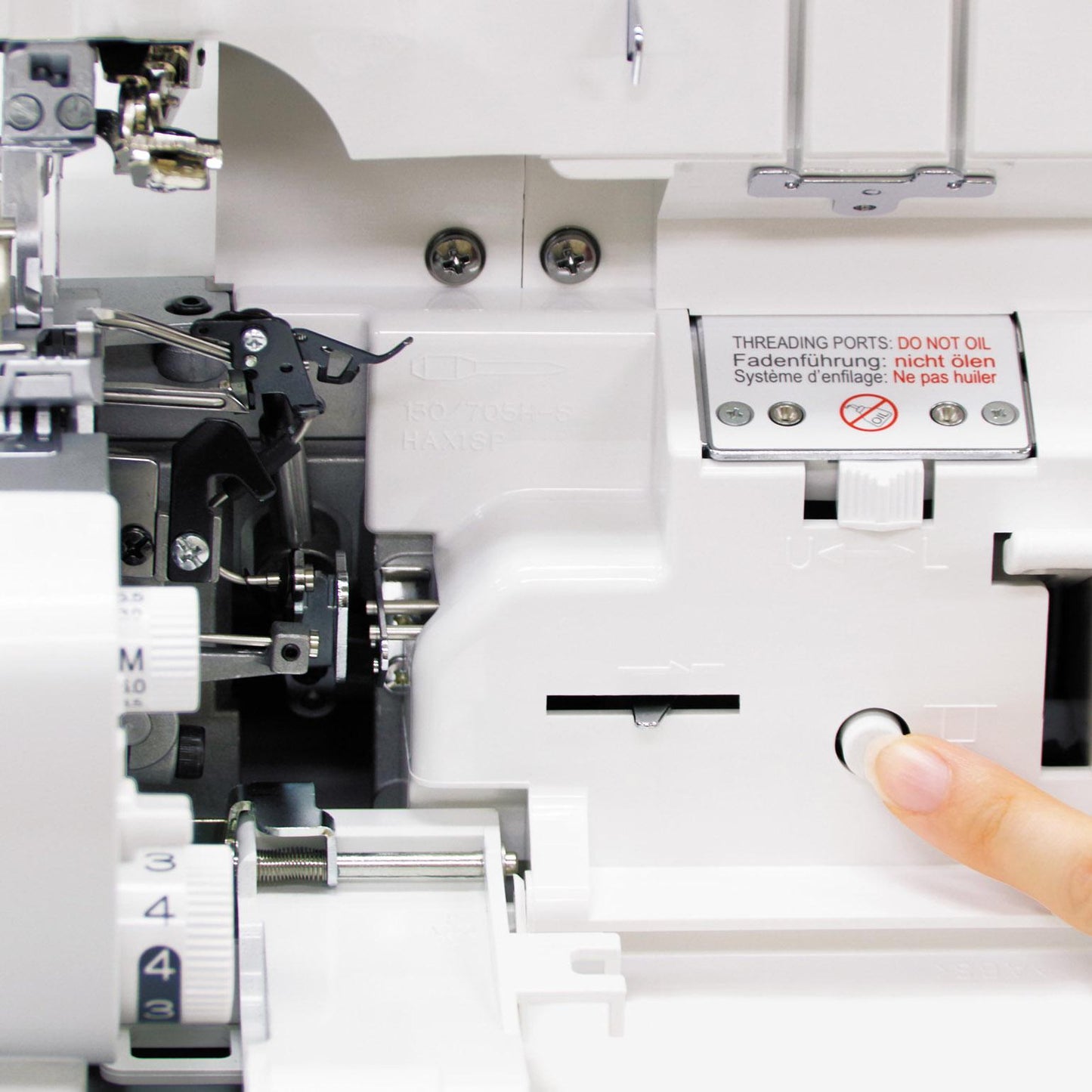

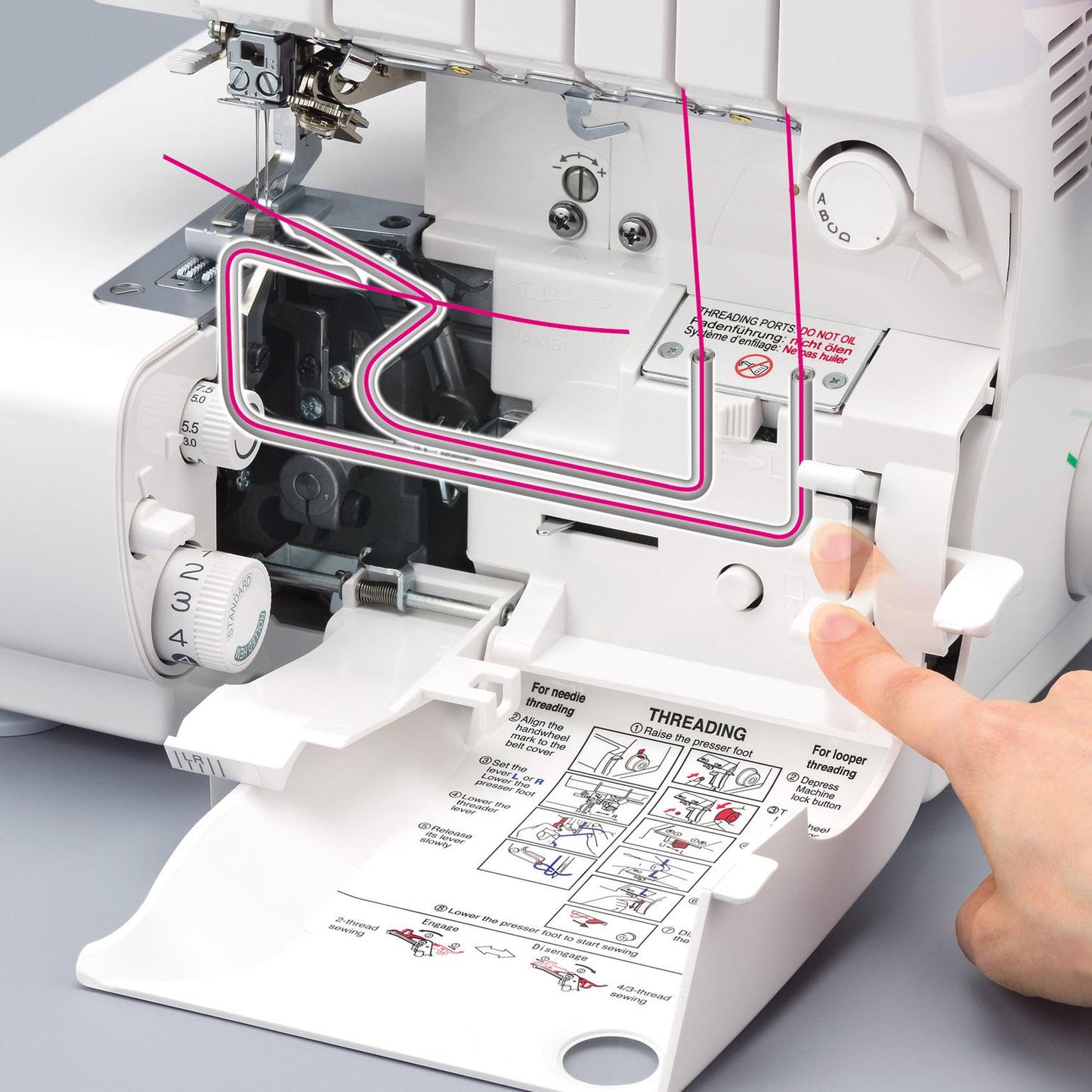

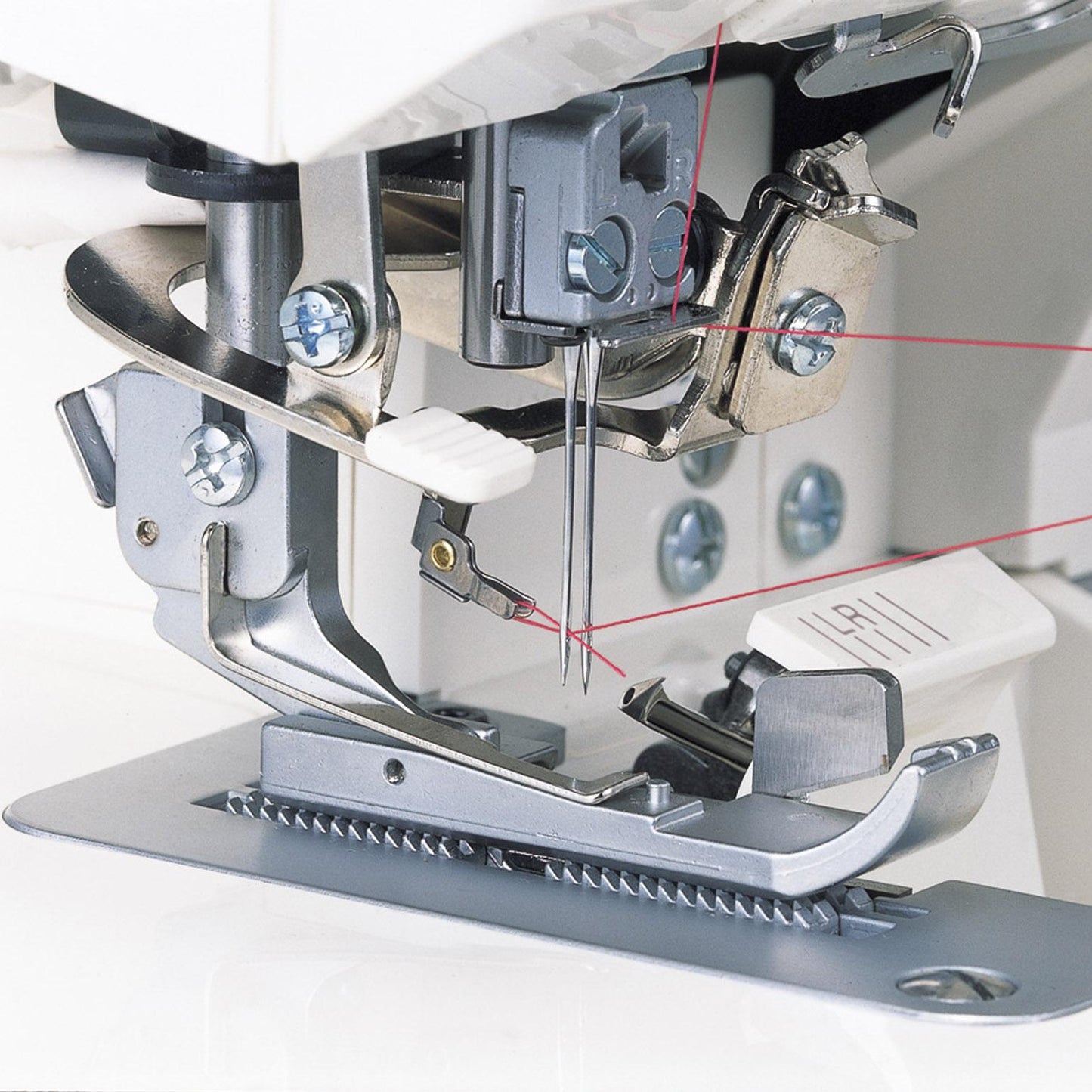

JetAir™ Threading ✔
Tension System Auto Thread Delivery (ATD) System
Lighting Standard Globe
Throat Space -

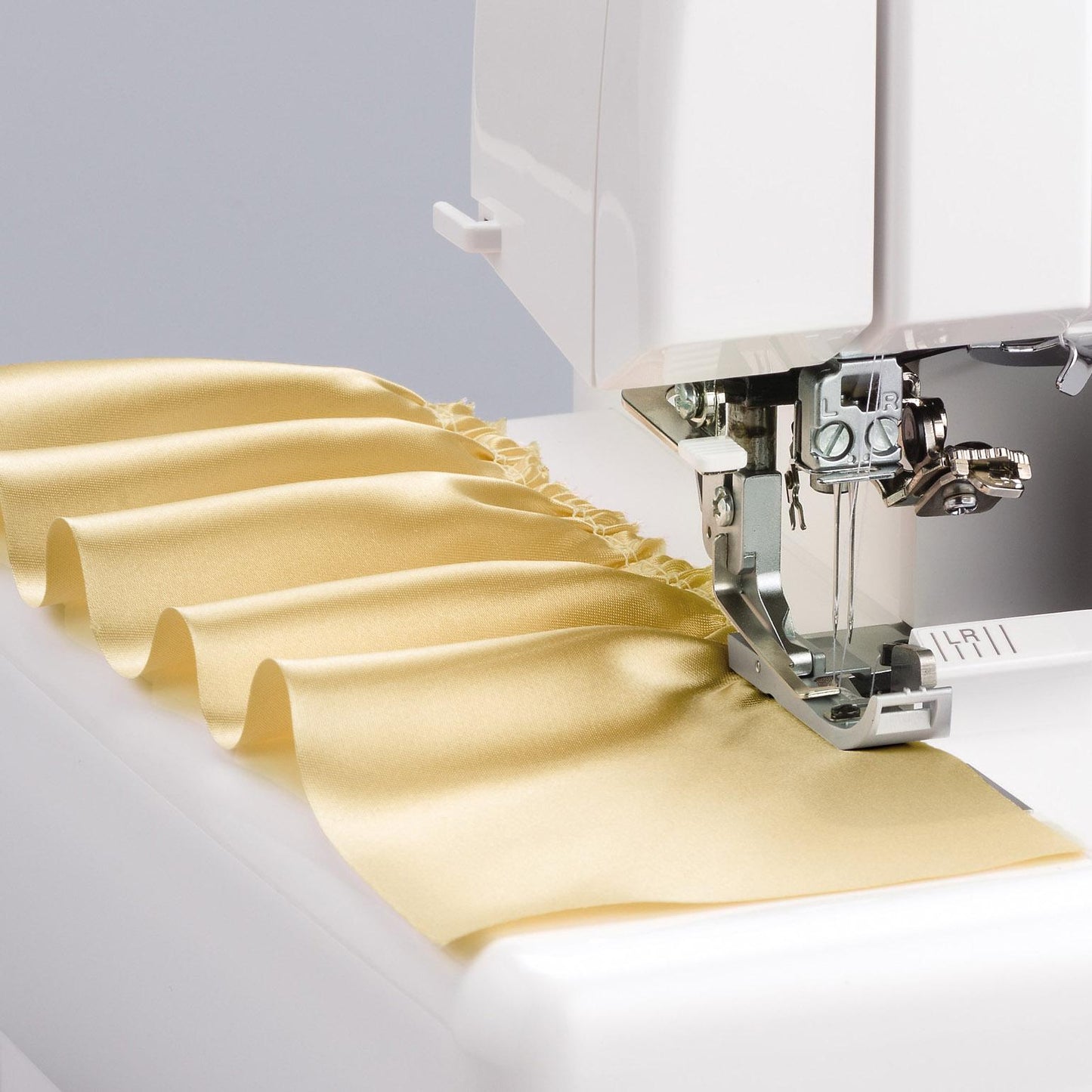

True 2 to 1 ratio differential feed - ranging from 0.6 to 2 ✔
Knee Lift (Presser Foot) ✘
Variable Speed Control (easily set the maximum speed) ✘
Exclusive Fabric Support System ✔

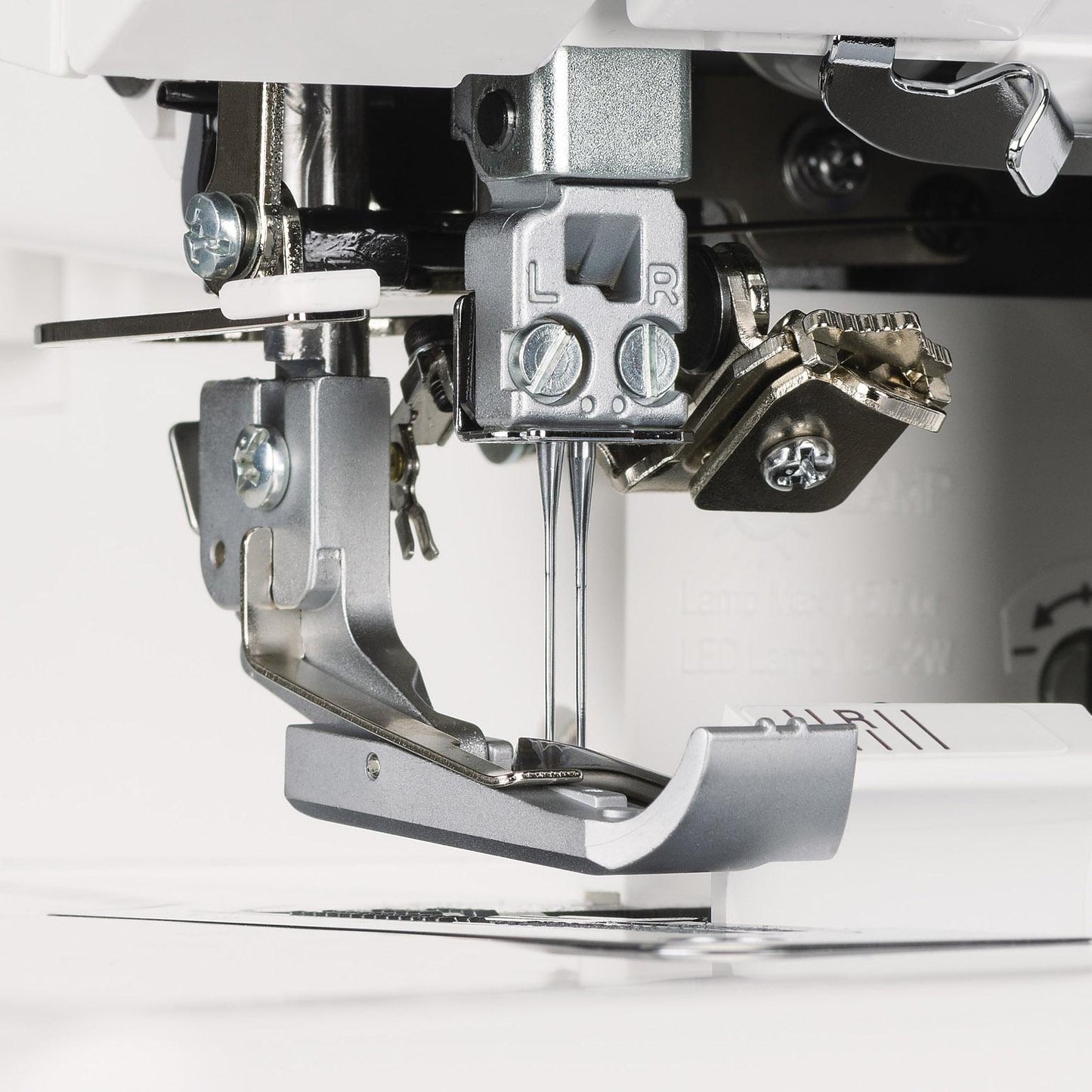

Vertical Needle System – minimises needle deflection ✔
Advanced Features
Combination Stitch Options -
Coverstitch: triple, wide (6mm), narrow (3mm) & single chain stitch -
Overlocking stitch Options: 4/3/2 Thread ✔
Exclusive Wave Stitch and Reverse Wave Stitch ✘

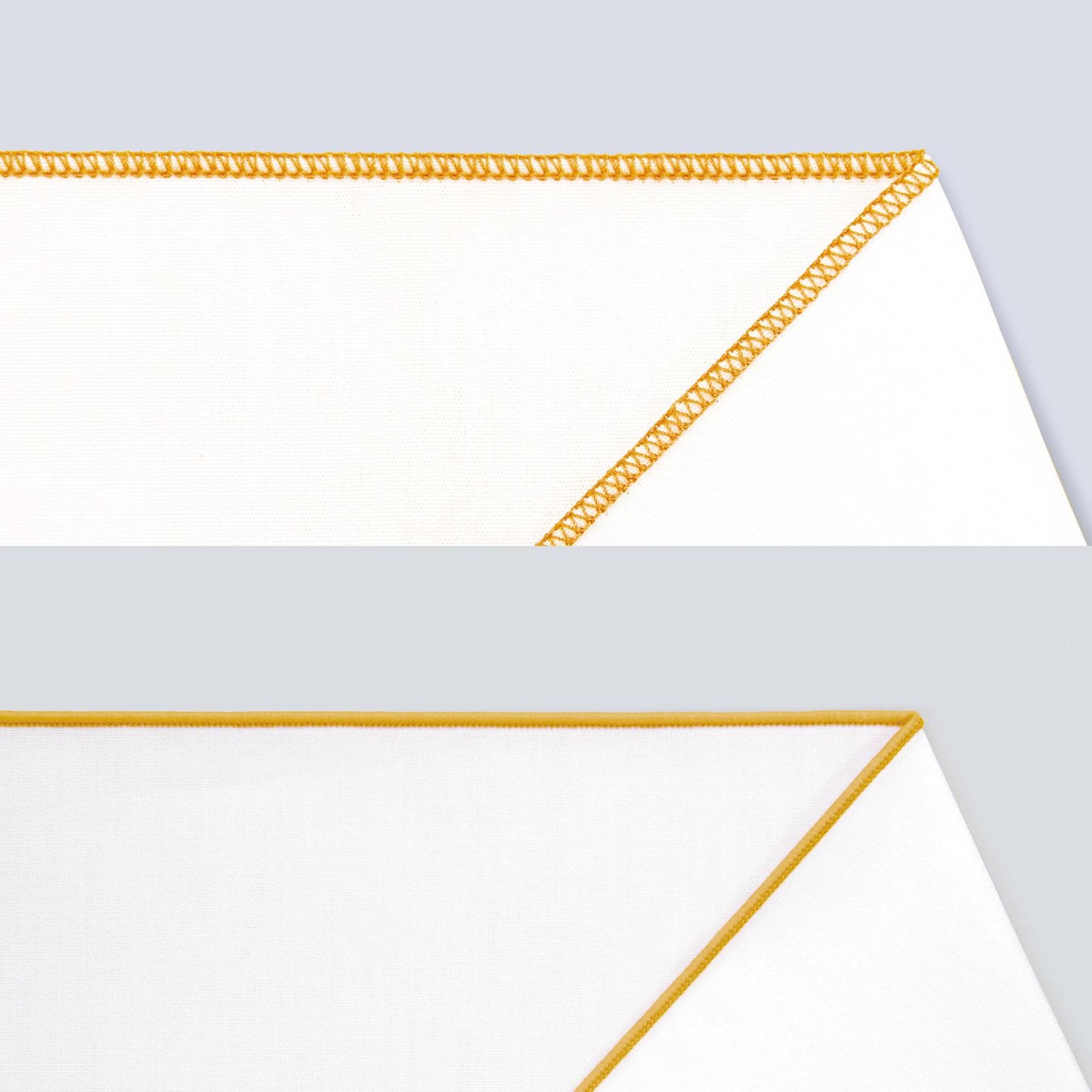

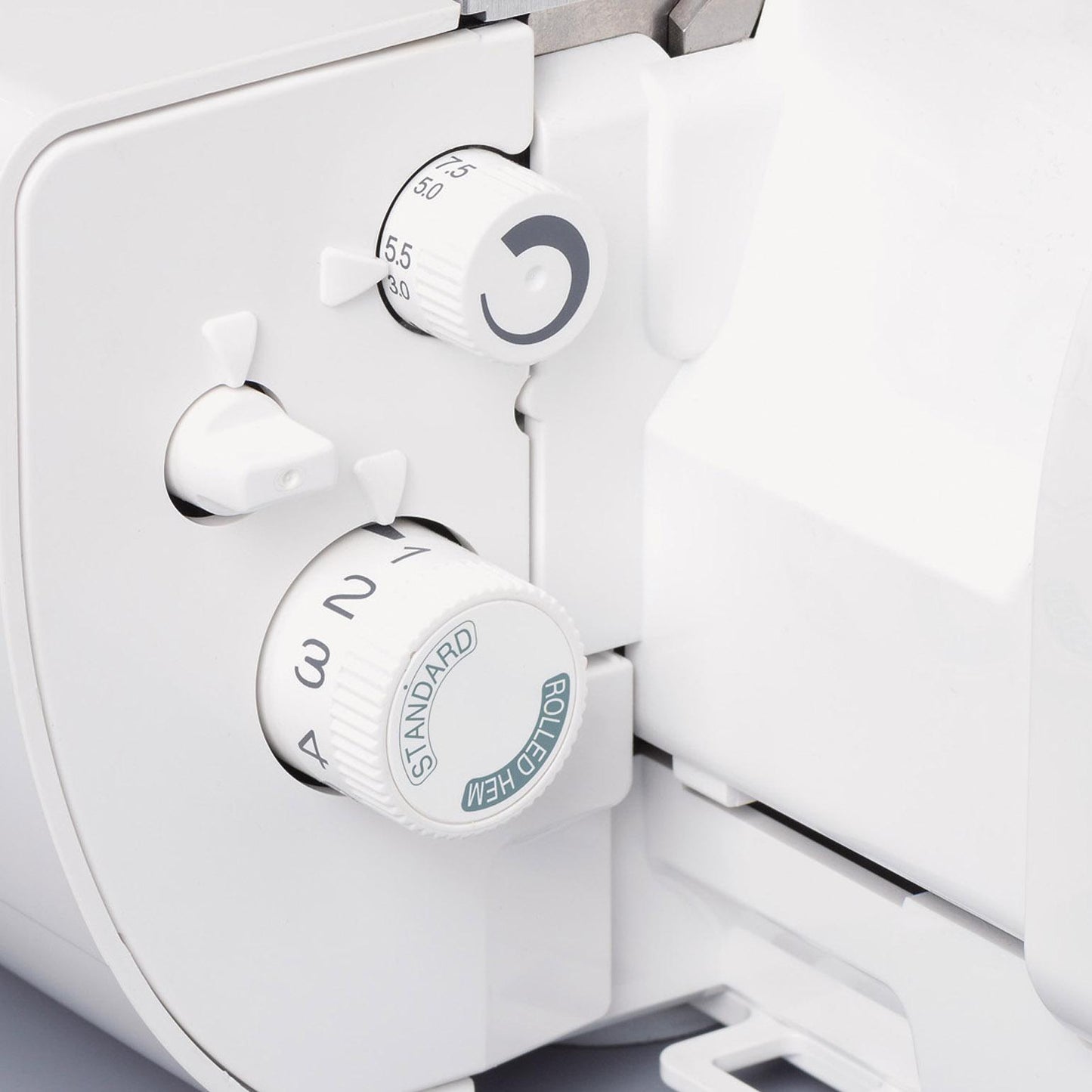

Automatic rolled hem stitch with the turn of a dial ✔
Flatlock stitch option for seaming and decorative effects ✔
Stitch Length 0.75 to 4mm
Stitch Width – Overlocking 1.5 to 7.5mm
Stitch Width – Expressive (overlocking & coverstitch combined) -

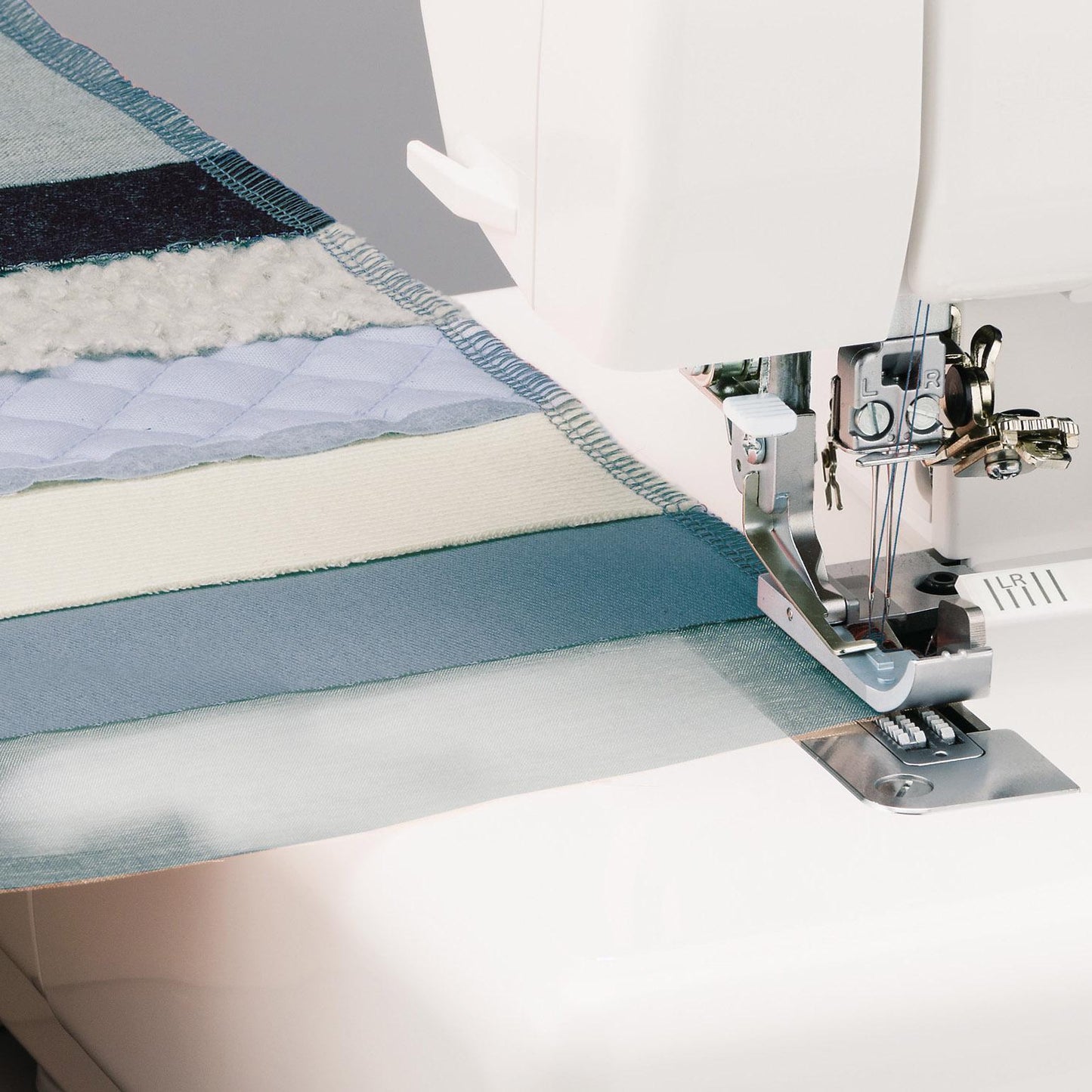

Heavy duty cutting system – cut thick fabrics easily ✔
Presser Foot Pressure Adjustment Adjustable Screw
Presser Foot Height 4.5mm
Sewing speed (stitches per minute) up to 1500
Convenience Features
Thread Stand Tray with Magnet ✘
Colour Coded Quick Reference Threading Guide ✔
Built-in Manual Needle Threader ✔
Position of presser foot lever Rear
Included Foot Grooved Foot
Built in Thread Cutter ✔
Guard plate for needle screws ✘
Built in Accessory Storage ✔
Safety Switches ✘
Needle Drop Tray ✔
Electronic Foot Control ✔
Other Features
Needle Type HAx1SP
Machine Weight 7.5KG
Made in Japan & 5 Year Conditional Warranty ✔
Optional Accessories
Optional Feet Available 11
Optional Attachments -
Compatibility with Knit Binders/Lap Seam Binder -
Clear Extension Table Compatibility CT-1
