Ovation

Ovation

Elevate your overlocking with the Ovation's large workspace, ExtraordinAir™ Threading (instantly thread all 3 tubular loopers at once), Automatic Thread Delivery (ATD) System, 6 LED lights, variable speed control and convenient knee-lift.

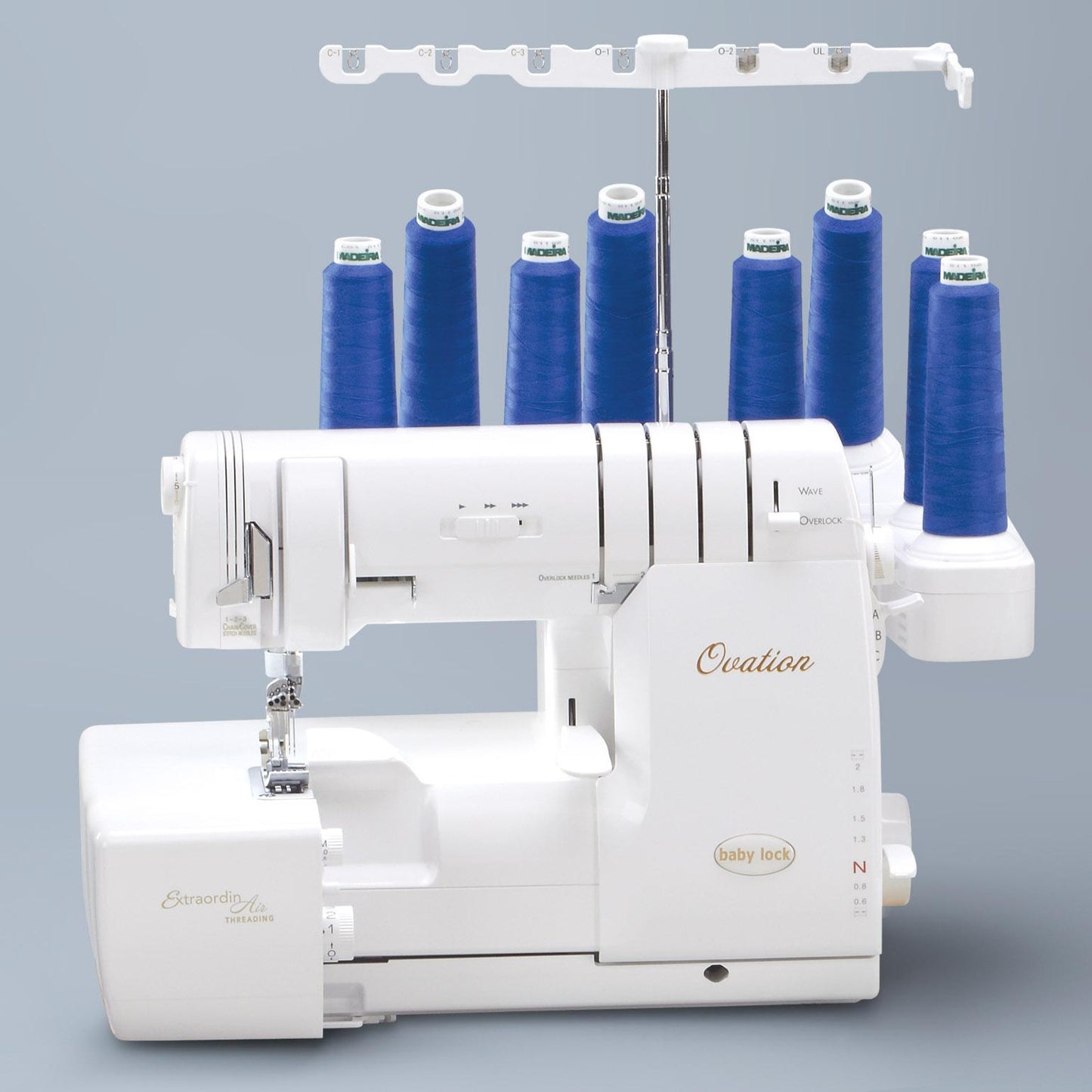

The Ovation is an 8-thread overlocker/coverstitch machine that sets a new standard of technology and features. This 2-in-1 machine offers an amazing variety of 87 stitch options including overlock stitches, chain and cover stitches as well as Baby Lock's exclusive wave stitch. You can also combine stitches to form expressive and decorative 8 thread stitches.

Ovation features:

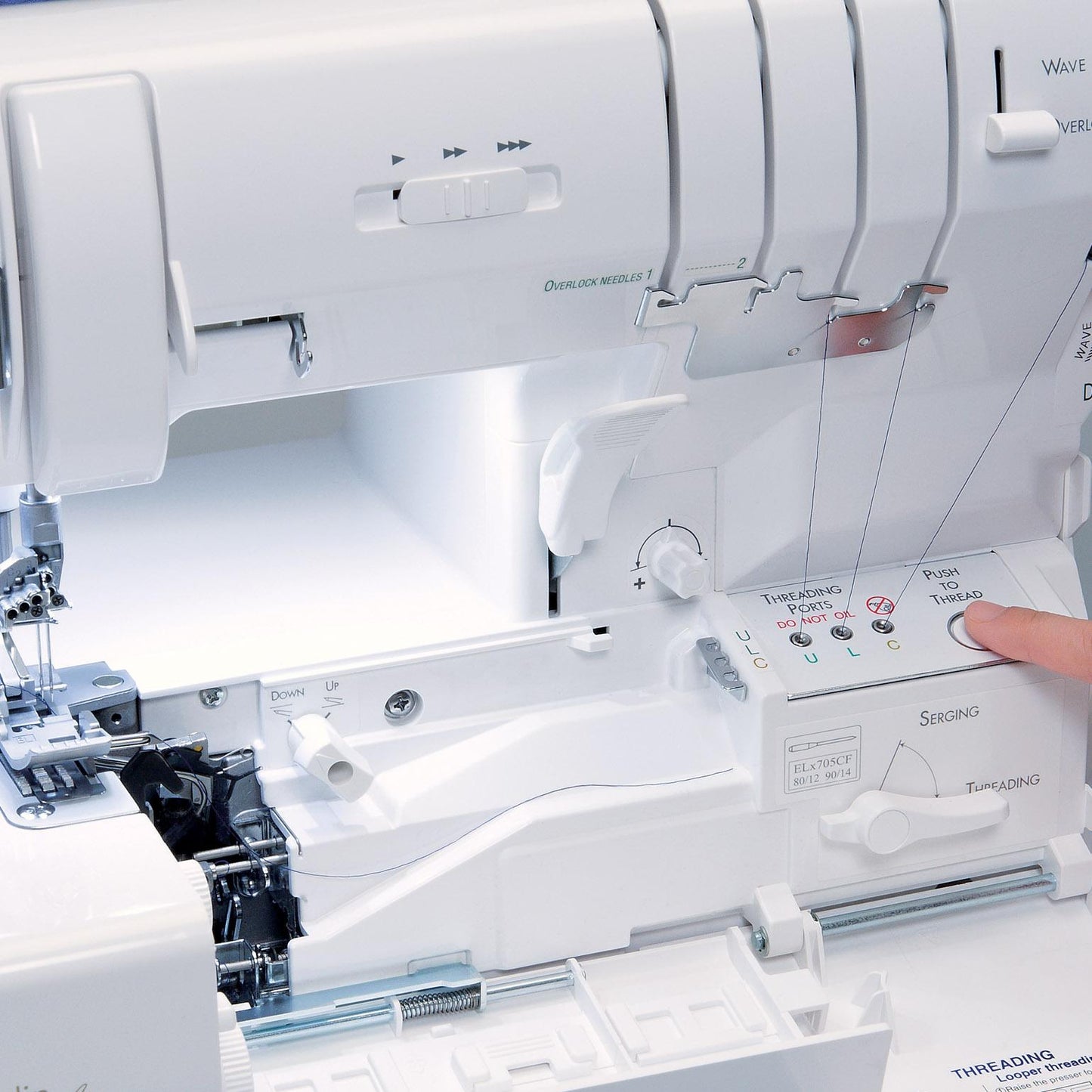

  • ExtraordinAir™ Threading for loopers
  • Automatic Thread Delivery (ATD) System - no tensions
  • Variable speed control

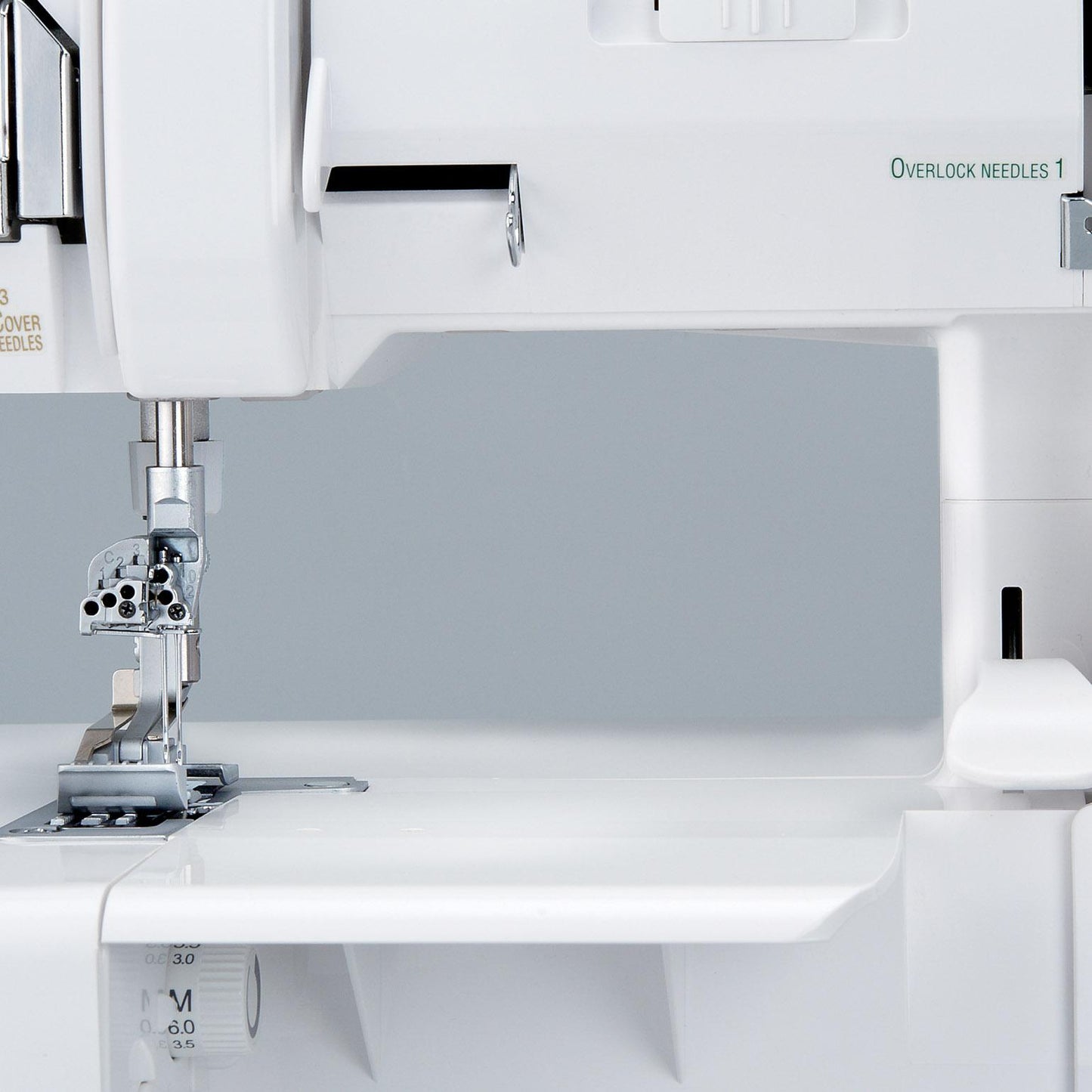

  • 5 Inch throat space
  • Knee lift

What's in the box

  • Instruction manual
  • Quick reference threading guide
  • Power cord
  • Foot control
  • Sewing table for chain/cover stitching
  • 2 x Guide fixing screws for sewing table
  • Package of assorted sized needles Organ ELx705CF
  • Lint brush/needle insert tool
  • Manual needle threader
  • Allen screwdriver
  • Tweezers
  • Upper cutting blade for replacement
  • Screwdriver
  • Looper threading tool
  • 8 x Thread nets
  • 8 x Spool caps with sponge
  • 8 x Spool caps
  • Machine cover
  • 2 x Spool pin disks (large)
  • 8 x Cone holders
  • Knee lifter
  • Standard grooved presser foot
  • Thread stand extension

Downloads

Ovation Specifications

Specifications
Machine Type 8-Thread Overlocker
Machine Type Coverstitch
Threading System ExtraordinAir™
Key Technology
Number of Threads 8
RevolutionAir™ Threading – Needles & Loopers ✘
ExtraordinAir™ Threading ✔
NEW JetAir™ (easier looper threader engagement) ✘
JetAir™ Threading ✘
Tension System Auto Thread Delivery (ATD) System

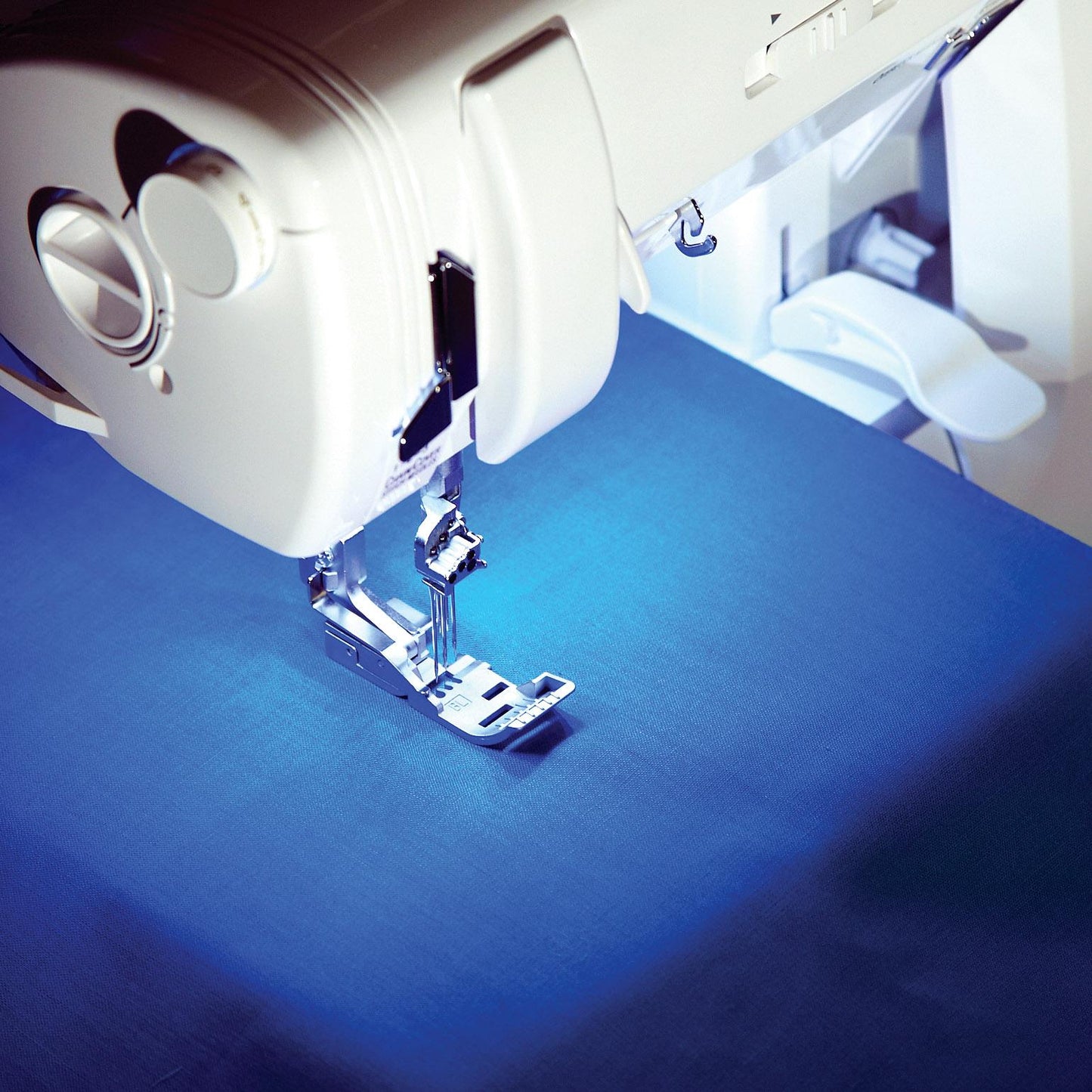

Lighting 6 LED
Throat Space 5"
True 2 to 1 ratio differential feed - ranging from 0.6 to 2 ✔

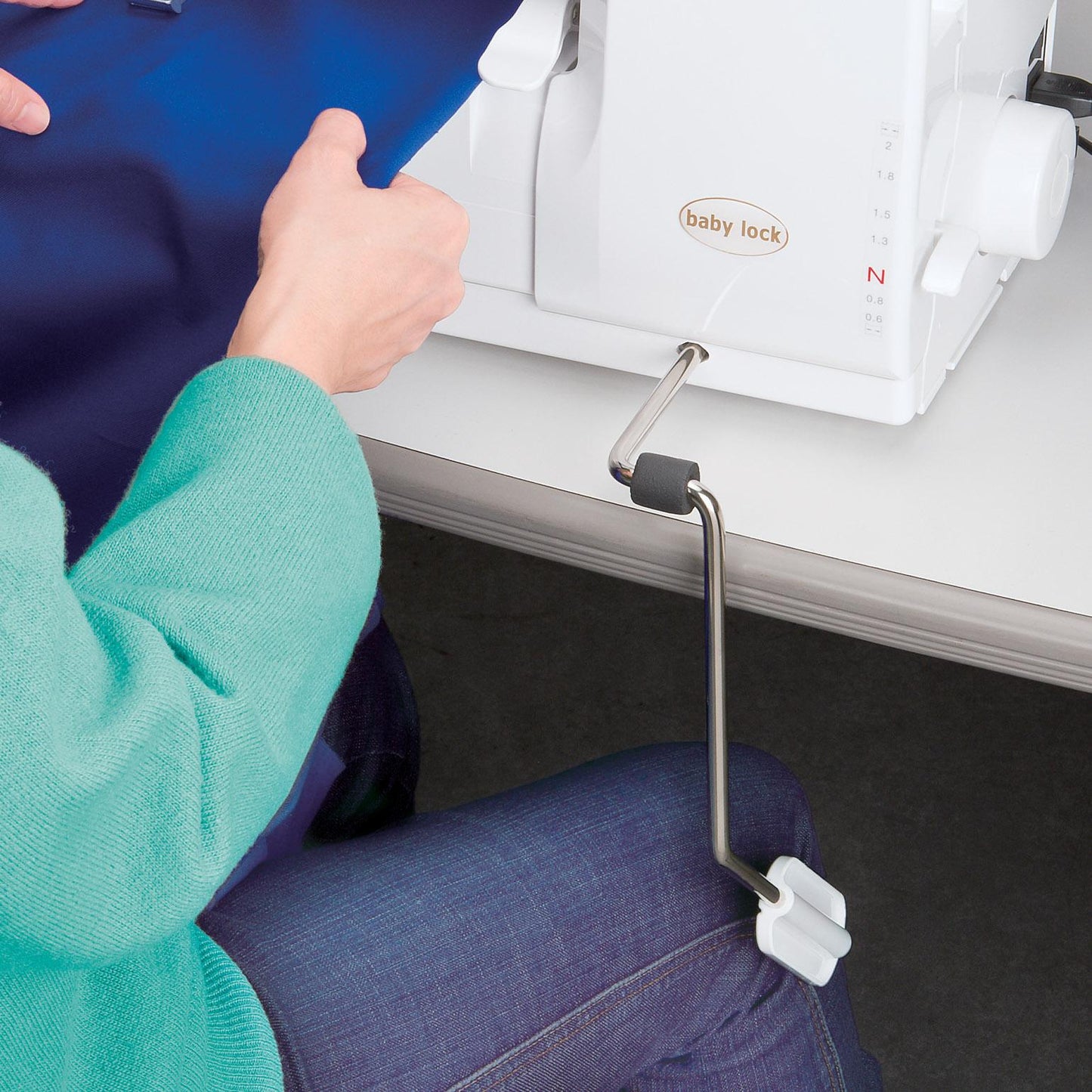

Knee Lift (Presser Foot) ✔

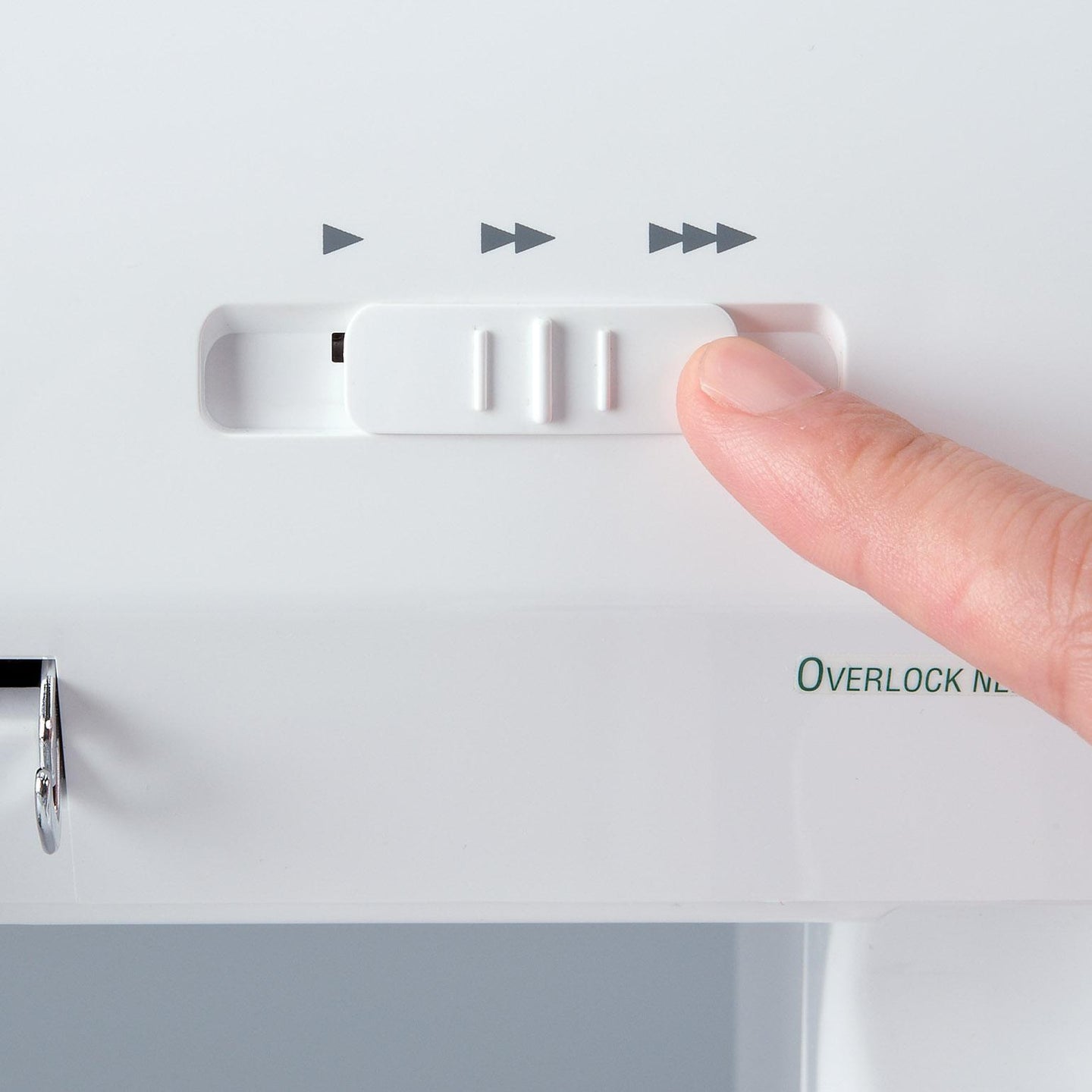

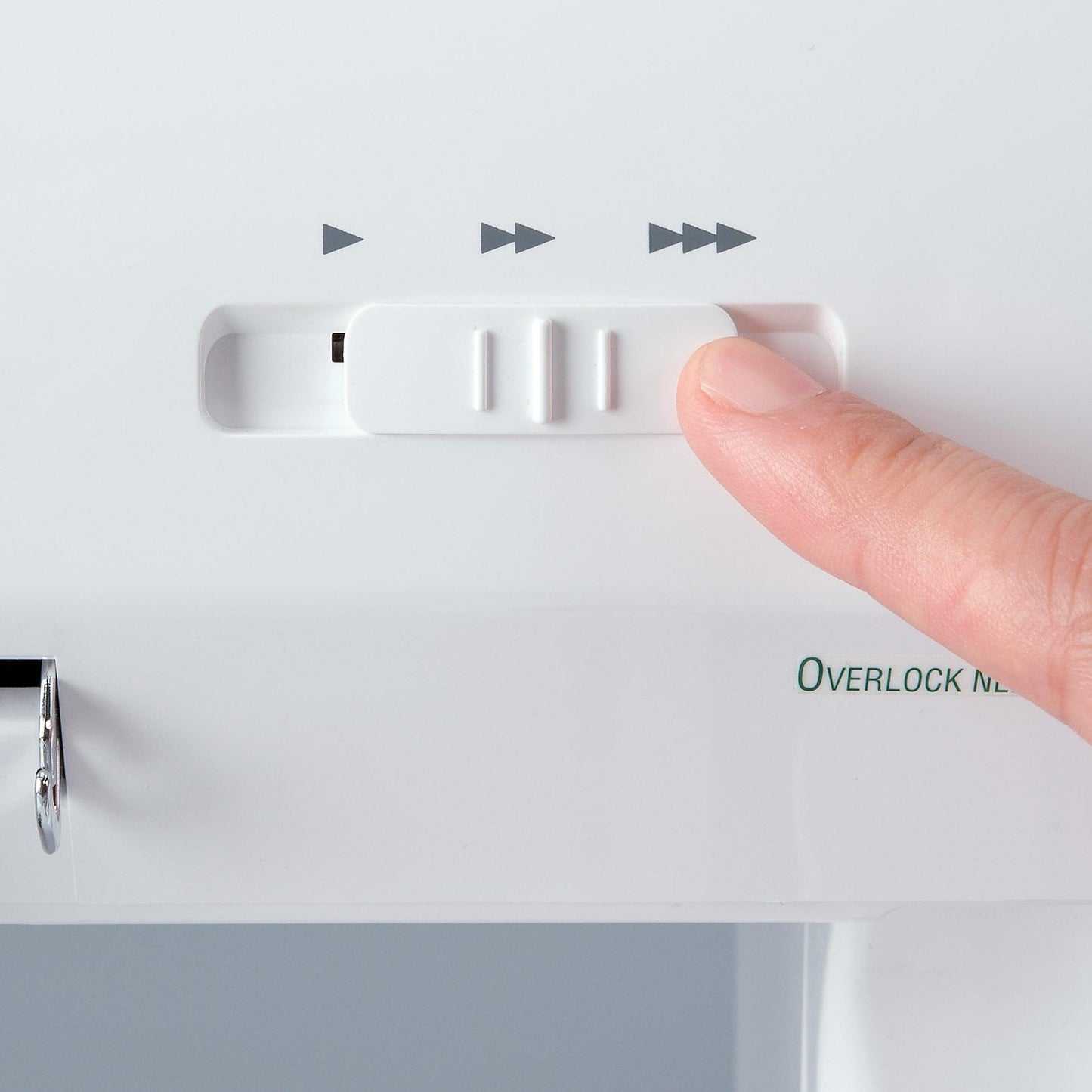

Variable Speed Control (easily set the maximum speed) 530 to 1300 stitches per minute
Exclusive Fabric Support System ✔
Vertical Needle System – minimises needle deflection ✔
Advanced Features
Combination Stitch Options 87

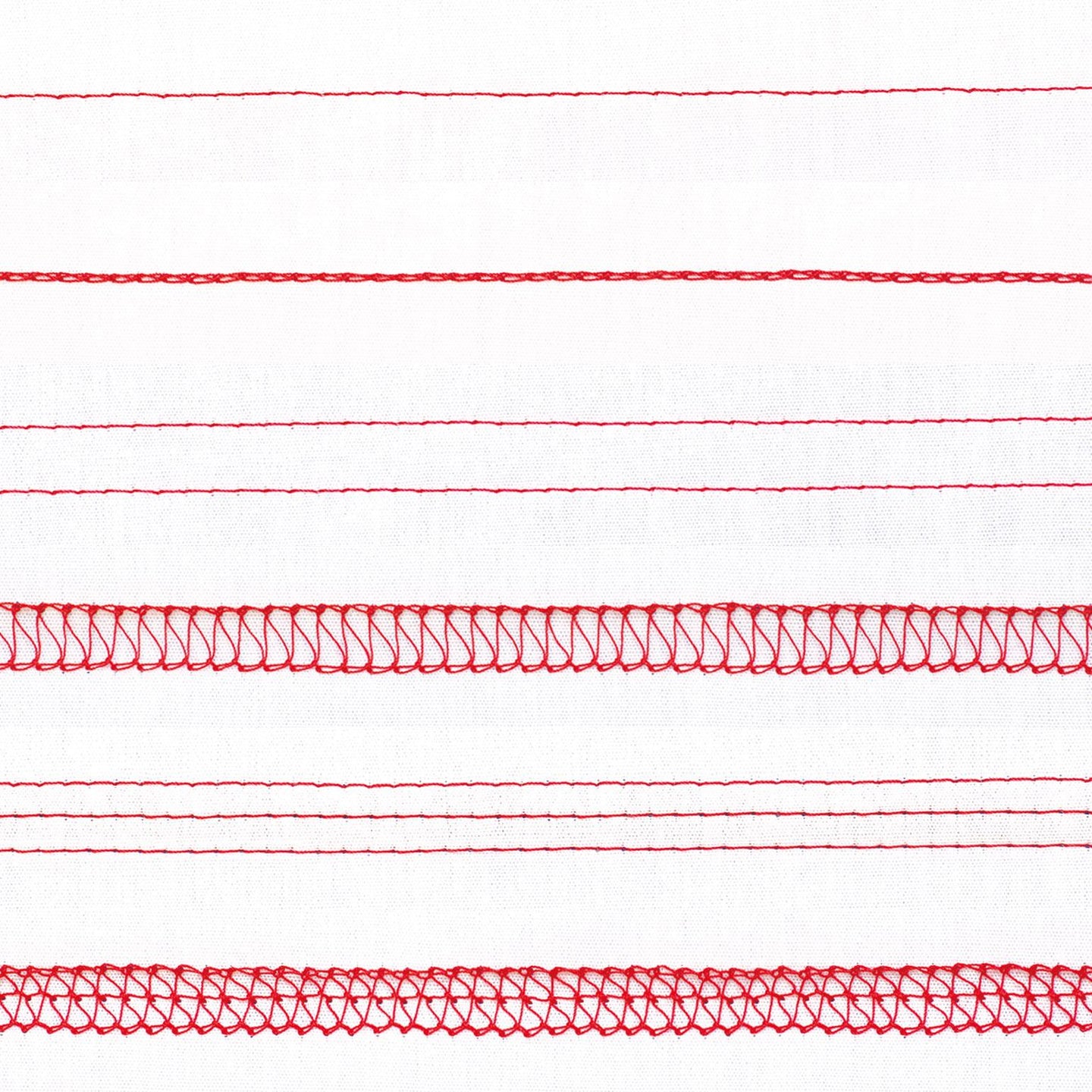

Coverstitch: triple, wide (6mm), narrow (3mm) & single chain stitch ✔

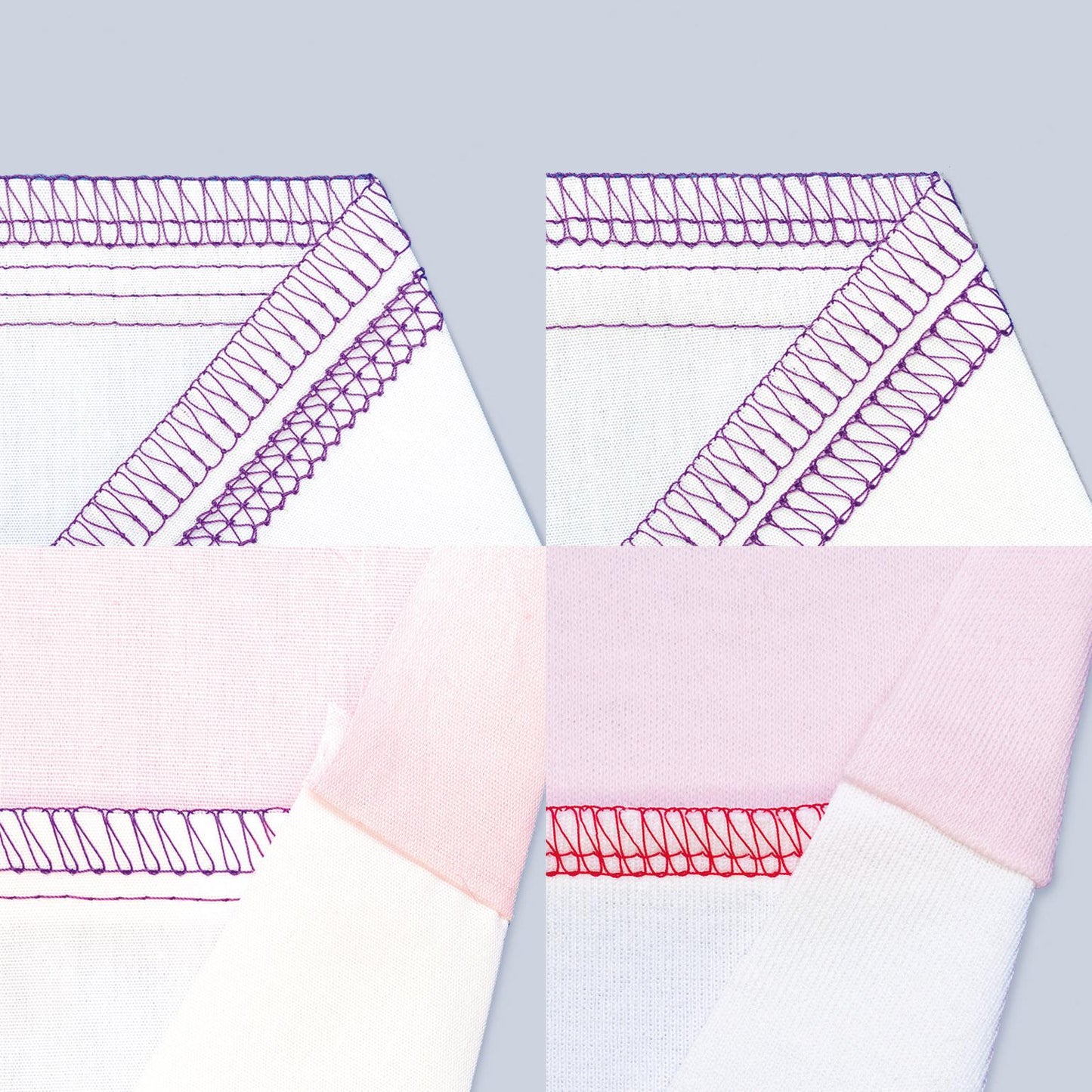

Overlocking stitch Options: 4/3/2 Thread ✔

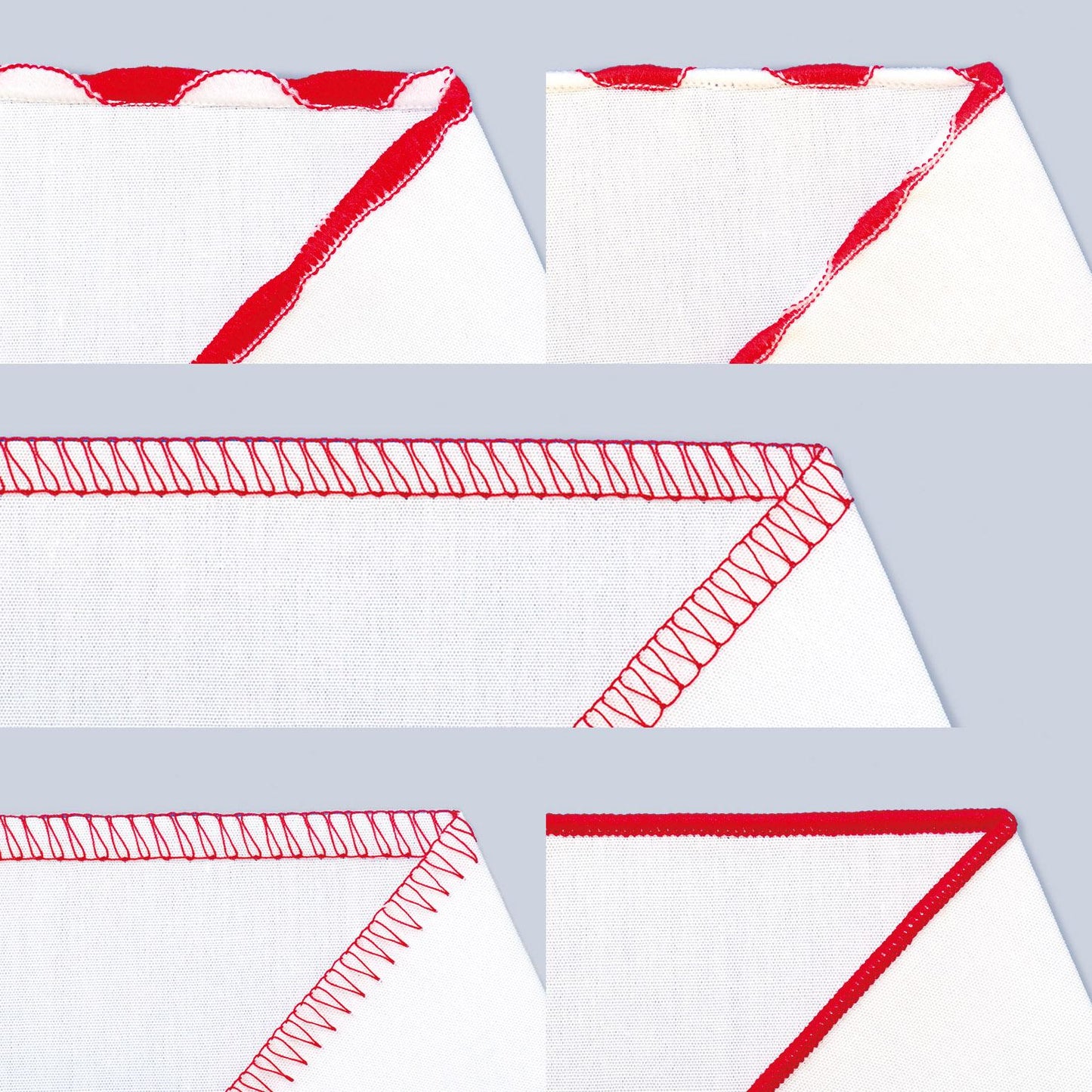

Exclusive Wave Stitch and Reverse Wave Stitch ✔
Automatic rolled hem stitch with the turn of a dial ✔
Flatlock stitch option for seaming and decorative effects ✔
Stitch Length 0.75 to 4mm
Stitch Width – Overlocking 1.5 to 7.5mm
Stitch Width – Expressive (overlocking & coverstitch combined) Up to 16mm
Heavy duty cutting system – cut thick fabrics easily ✔
Presser Foot Pressure Adjustment Easy Dial
Presser Foot Height 4.5mm
Sewing speed (stitches per minute) up to 1300
Convenience Features
Thread Stand Tray with Magnet ✘
Colour Coded Quick Reference Threading Guide ✔
Built-in Manual Needle Threader ✘
Position of presser foot lever Front
Included Foot Grooved Foot
Built in Thread Cutter ✔
Guard plate for needle screws ✔
Built in Accessory Storage ✔Large
Saftey Switches 2

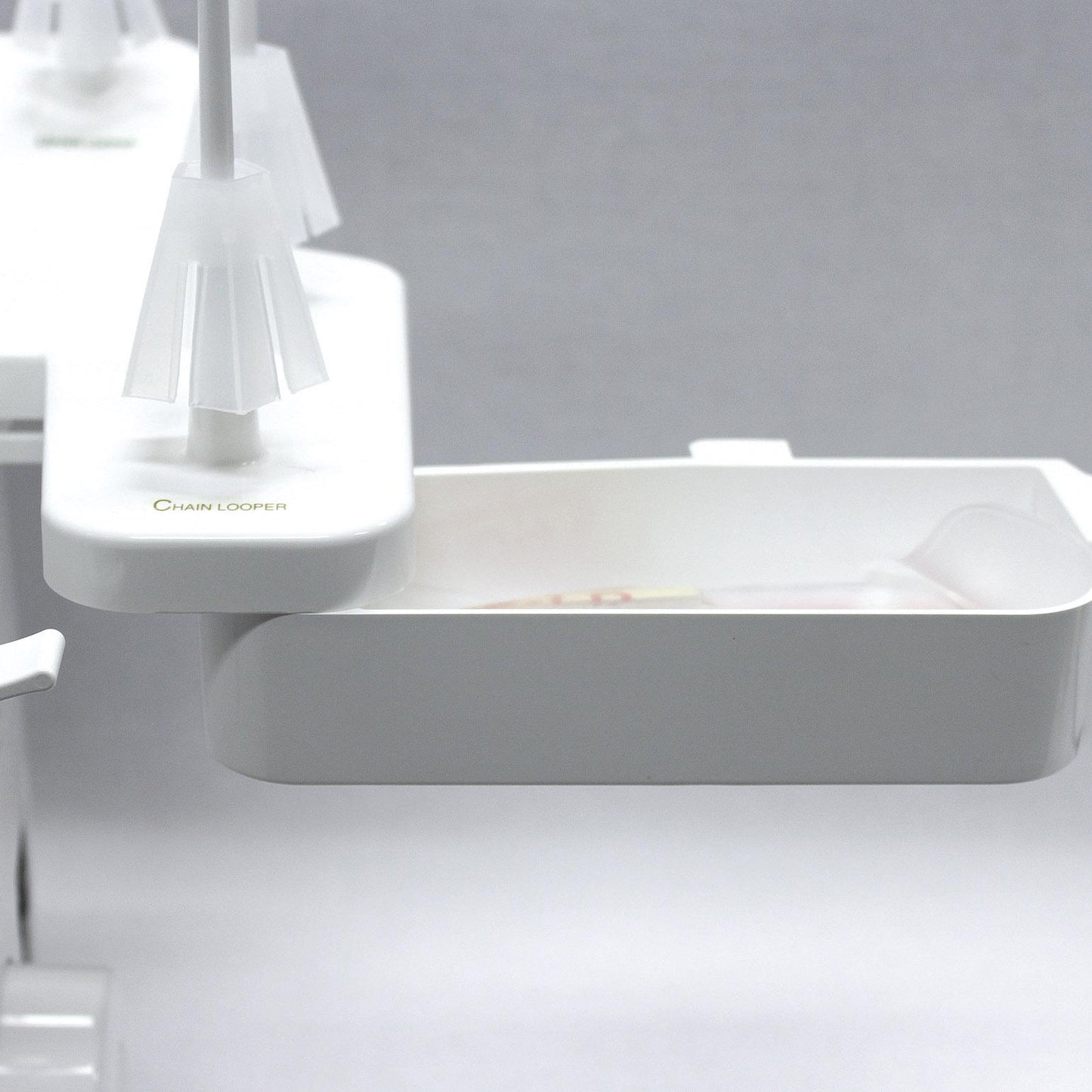

Needle Drop Tray ✔+ Magnet
Electronic Foot Control ✔Separate from power cord
Other Features
Needle Type EL 705 CF
Machine Weight 12.5KG
Made in Japan & 5 Year Conditional Warranty ✔
Optional Accessories
Optional Feet Available 16
Optional Attachments 19
Compatibility with Knit Binders/Lap Seam Binder ✔
Clear Extension Table Compatibility CT-5
