Evolve

Evolve

BLE8-2

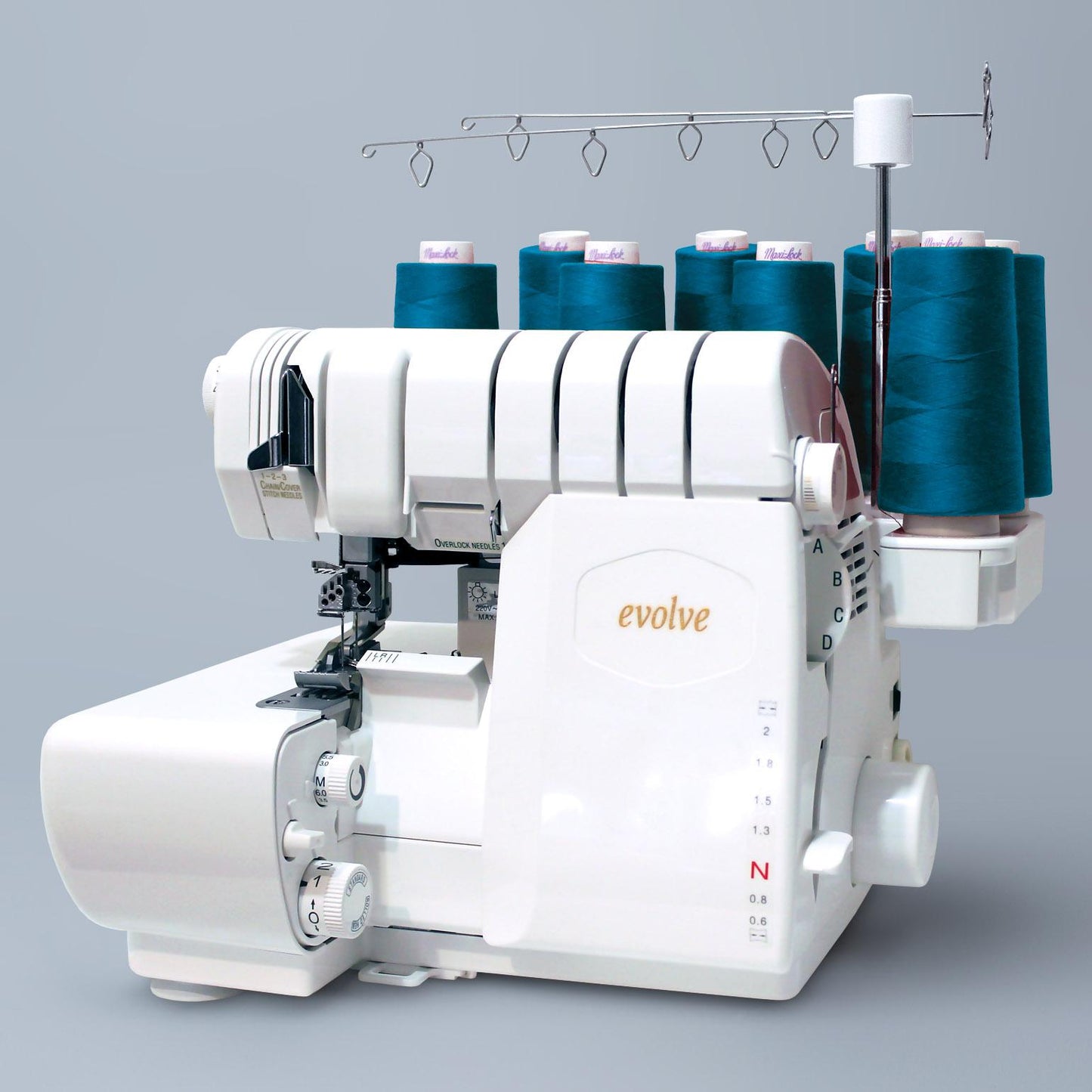

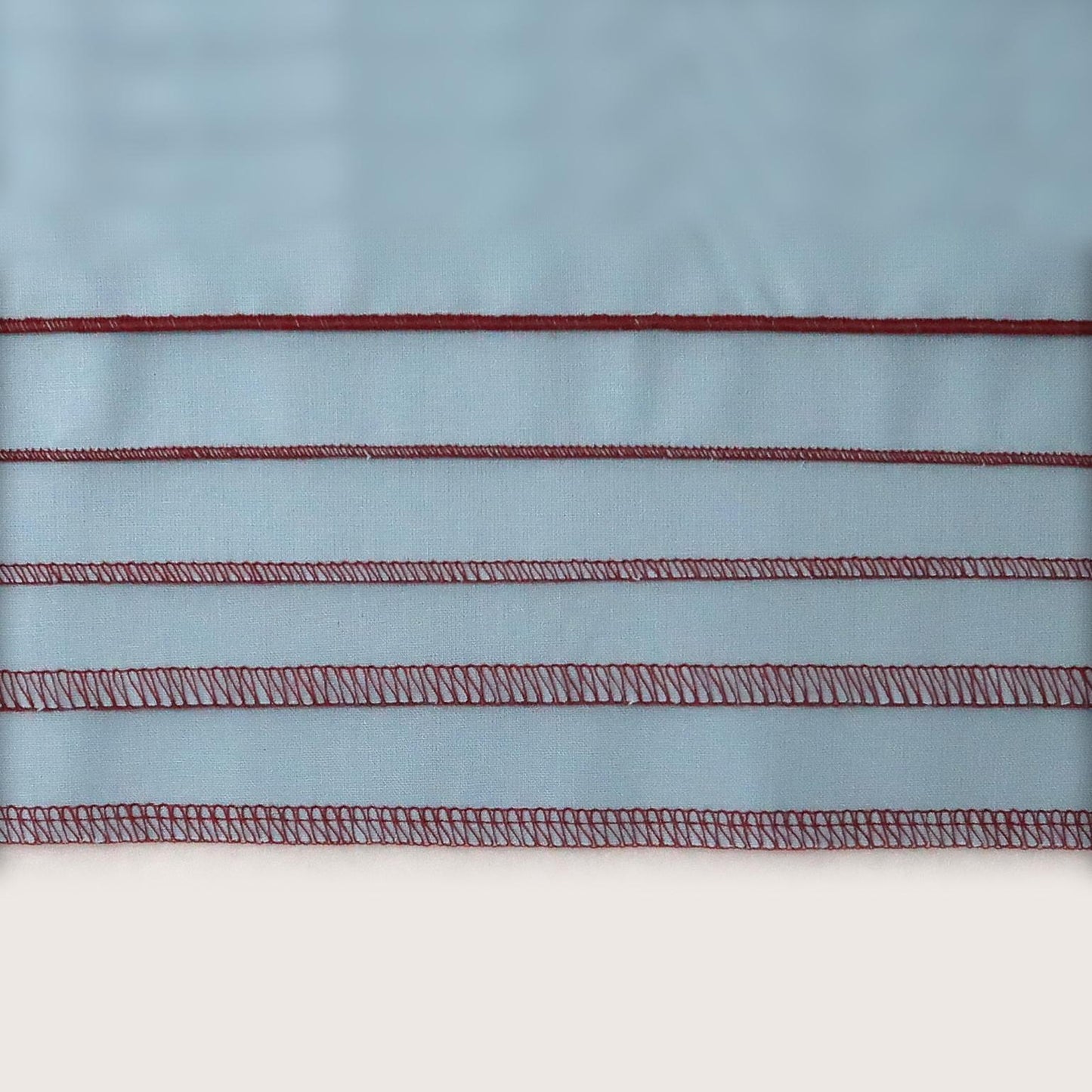

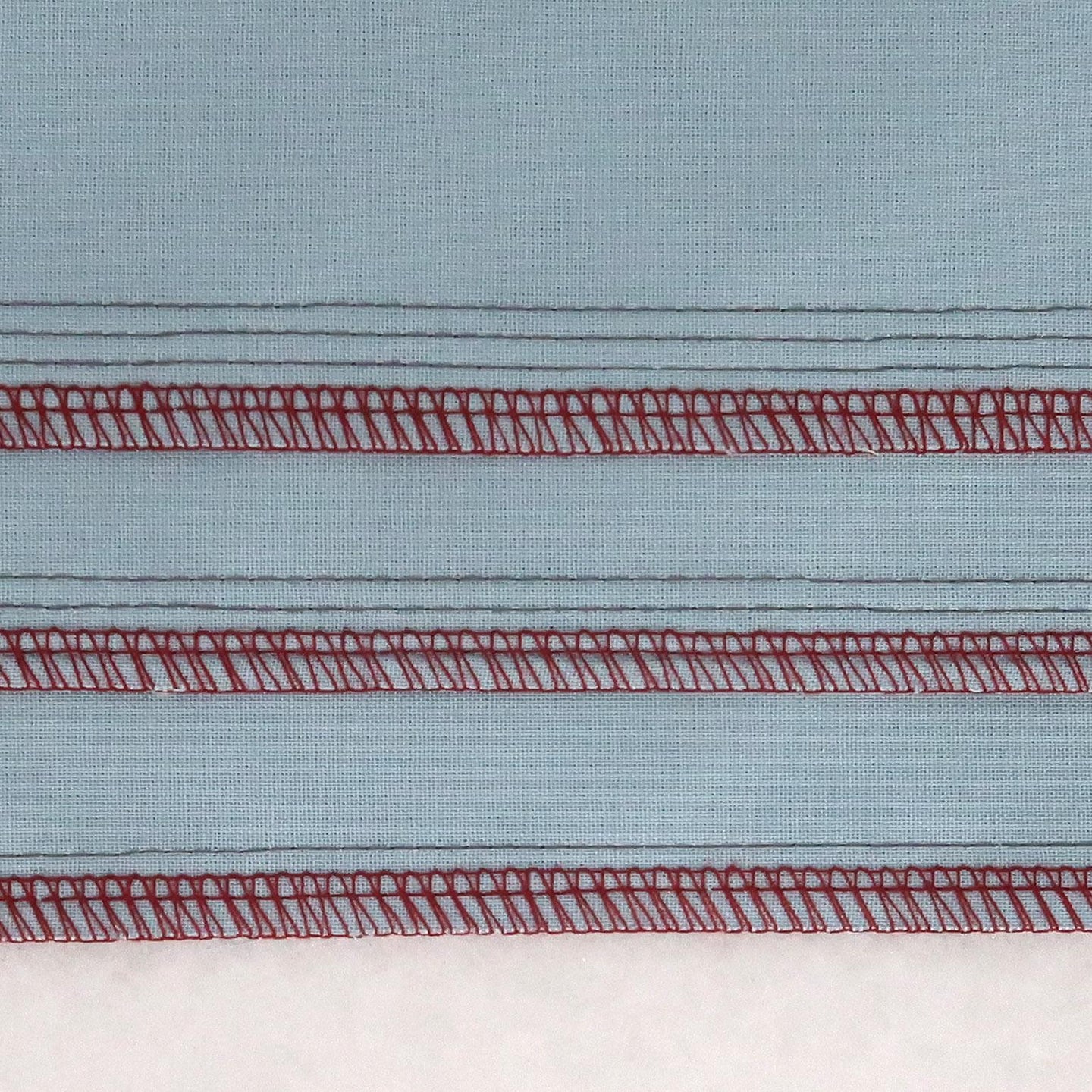

The Evolve is a combination 8-thread overlocker/coverstitch machine that offers an amazing 66 stitch options. Combine overlock, coverstitch and chain stitches to form expressive 5,6,7 and 8 thread stitches.

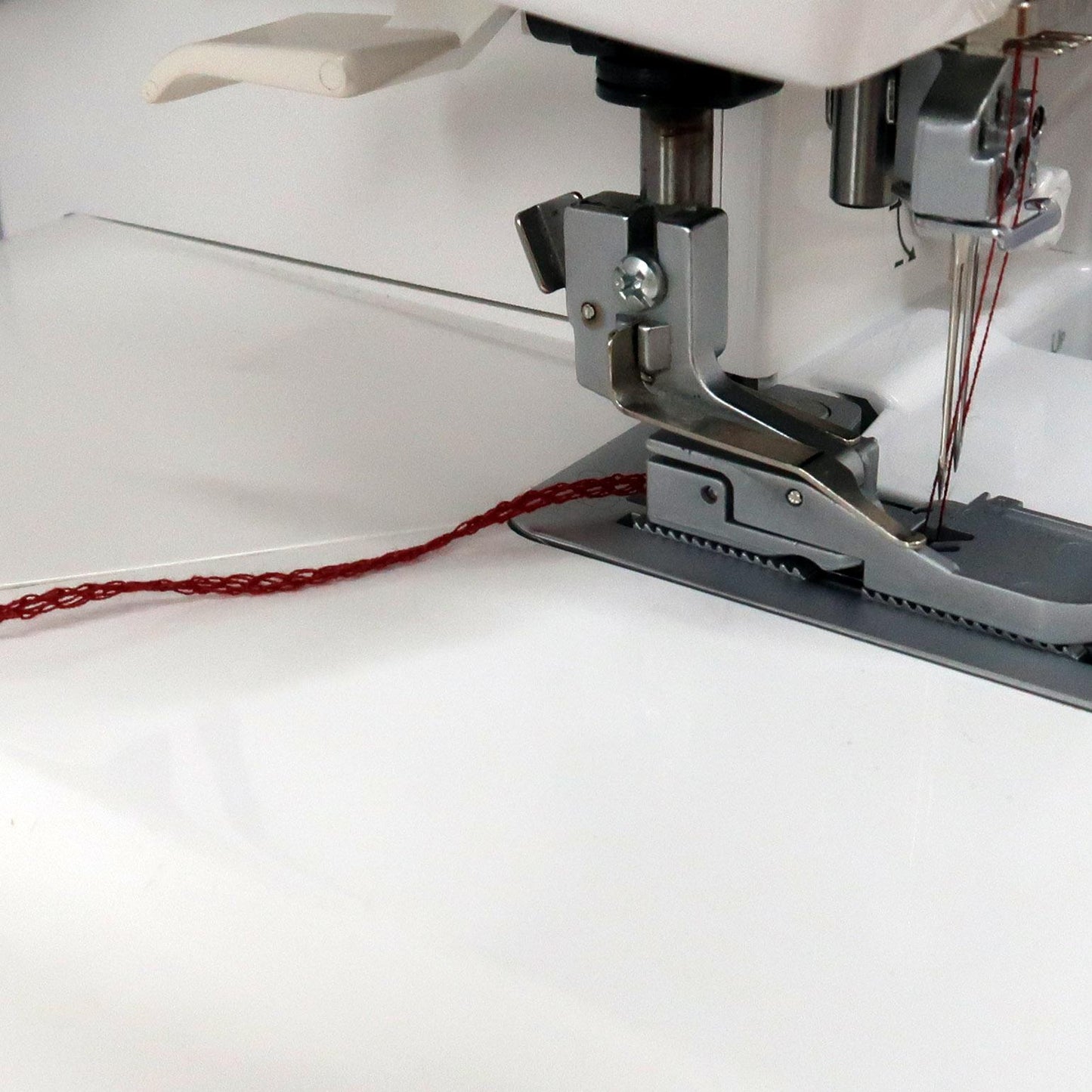

The Evolve has all the patented features you would expect on a Baby Lock including JetAir™ Threading, Automatic Thread Delivery (ATD) System, tubular loopers, automatic cover stitch chain off and much more. There's no need to worry about keeping track of eight threads - the Evolve can be threaded in any order - in fact, the Evolve can be easily threaded in under one minute!

Converting the Evolve from Overlocking to coverstitch and back is just 4 easy steps.

Evolve features:

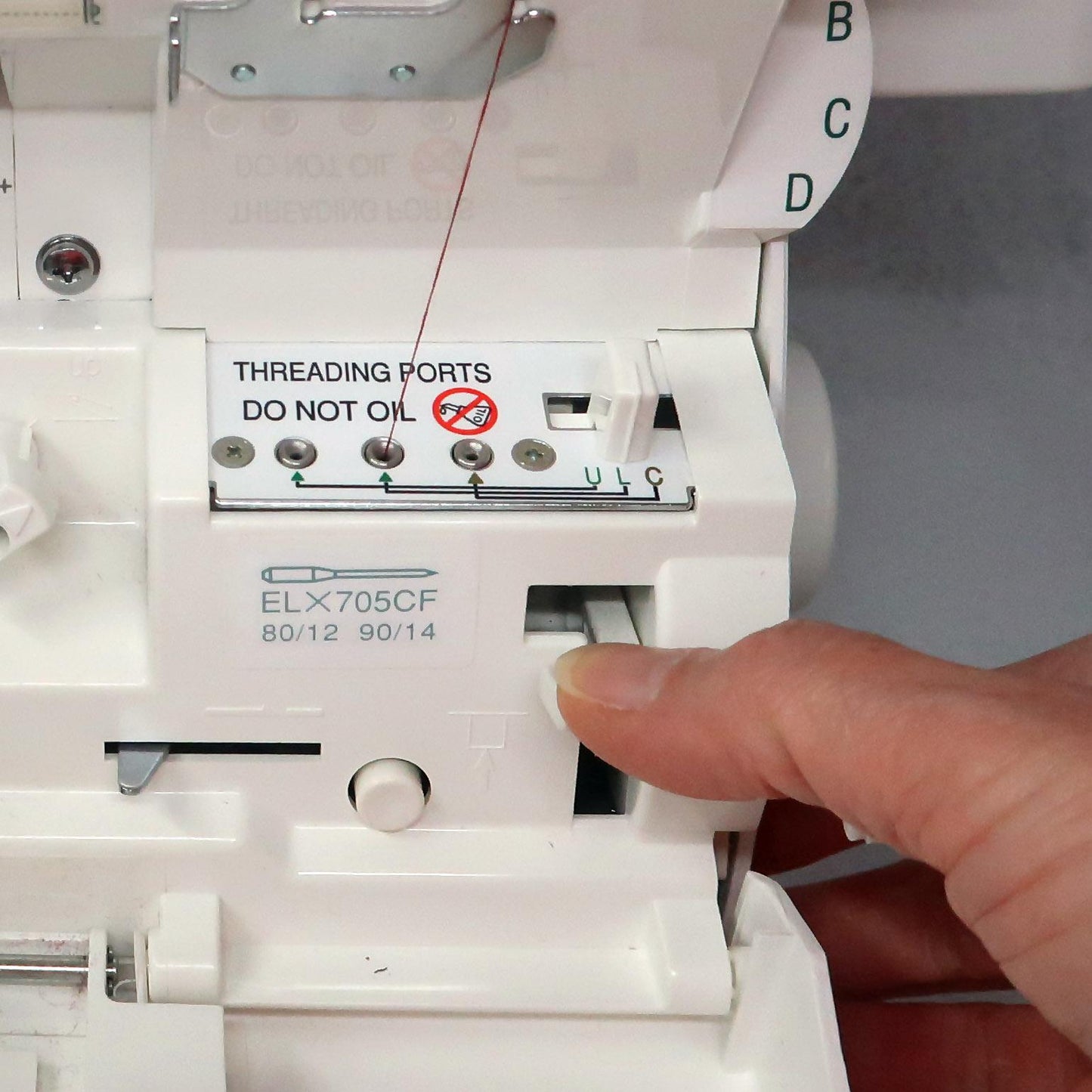

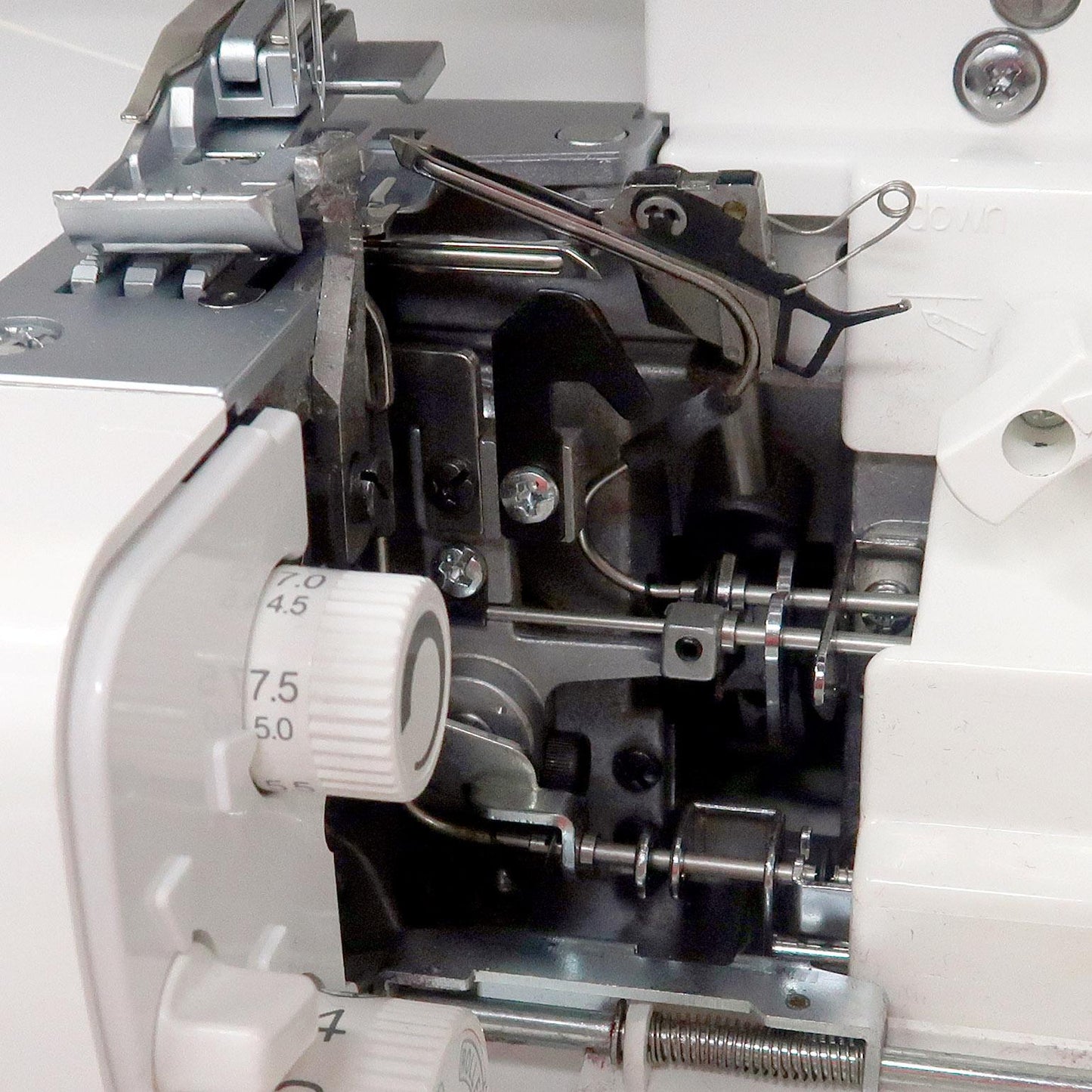

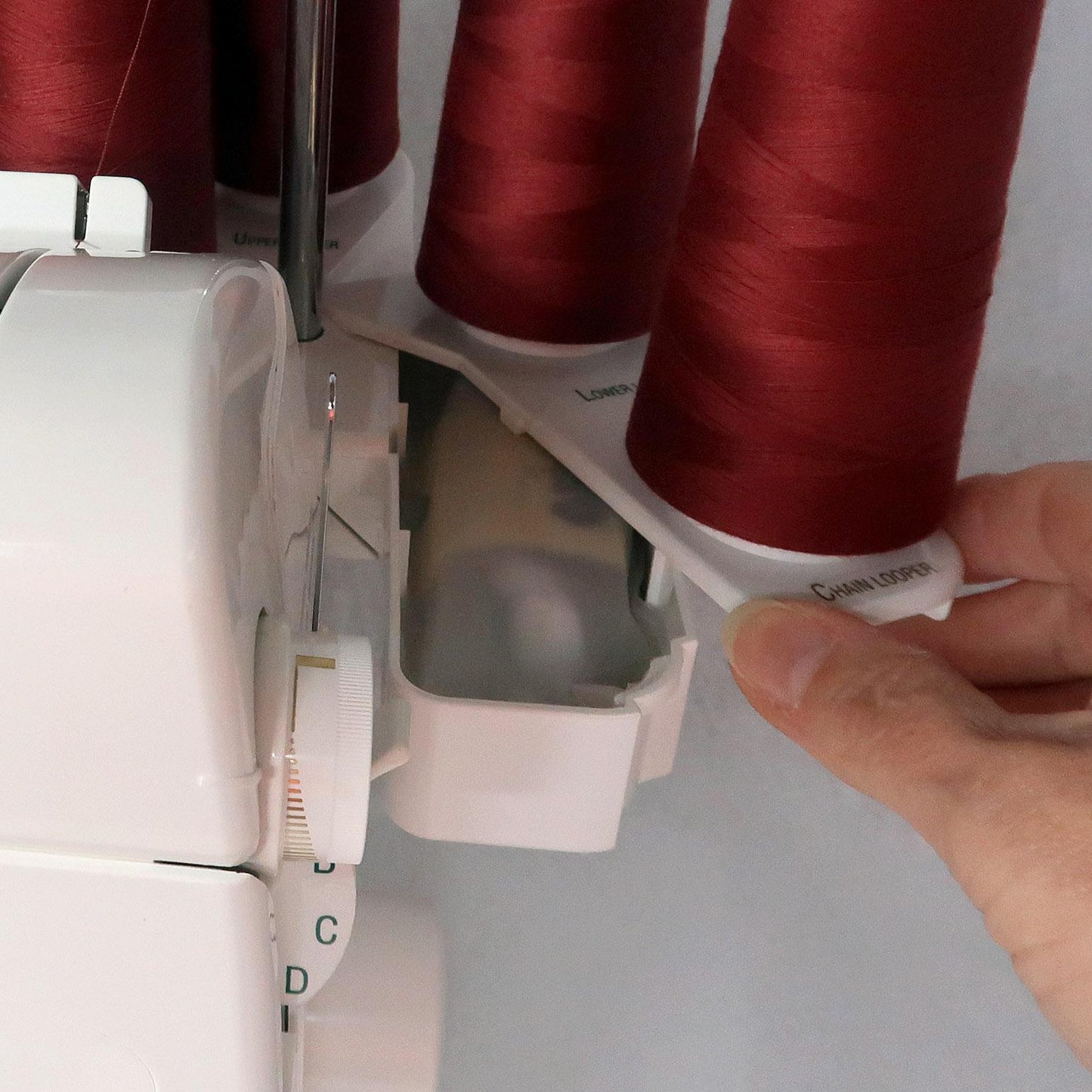

  • JetAir™ Threading for loopers
  • Automatic Thread Delivery (ATD) System - no tensions
  • True 2 to 1 ratio differential feed
  • Automatic rolled hem stitch

What's in the box

  • Instruction manual
  • Quick reference threading guide
  • Combination foot control & power cord
  • Package of assorted sized needles Organ ELx705CF
  • Flat table for chain/cover stitching
  • 2 x Guide fixing screws for table
  • Lint brush/needle insert tool
  • Manual needle threader
  • Allen screwdriver
  • Tweezers
  • Upper cutting blade for replacement
  • Screwdriver
  • Looper threading tool
  • 2 x Overlock needle screws
  • 2 x Chain/cover stitch needle screws
  • 8 x Thread nets
  • 8 x Spool caps with sponge
  • 8 x Spool caps
  • Machine cover
  • 8 x Cone holders
  • Standard grooved presser foot
  • Thread stand extension
  • Thread guide extension

Downloads

Evolve Specifications

Specifications
Machine Type 8-Thread Overlocker
Machine Type Coverstitch
Threading System JetAir™
Key Technology
Number of Threads 8
RevolutionAir™ Threading – Needles & Loopers ✘
ExtraordinAir™ Threading ✘
NEW JetAir™ (easier looper threader engagement) ✘
JetAir™ Threading ✔
Tension System Auto Thread Delivery (ATD) System
Lighting Standard Globe
Throat Space -
True 2 to 1 ratio differential feed - ranging from 0.6 to 2 ✔
Knee Lift (Presser Foot) ✘
Variable Speed Control (easily set the maximum speed) ✘
Exclusive Fabric Support System ✔
Vertical Needle System – minimises needle deflection ✔
Advanced Features
Combination Stitch Options 66

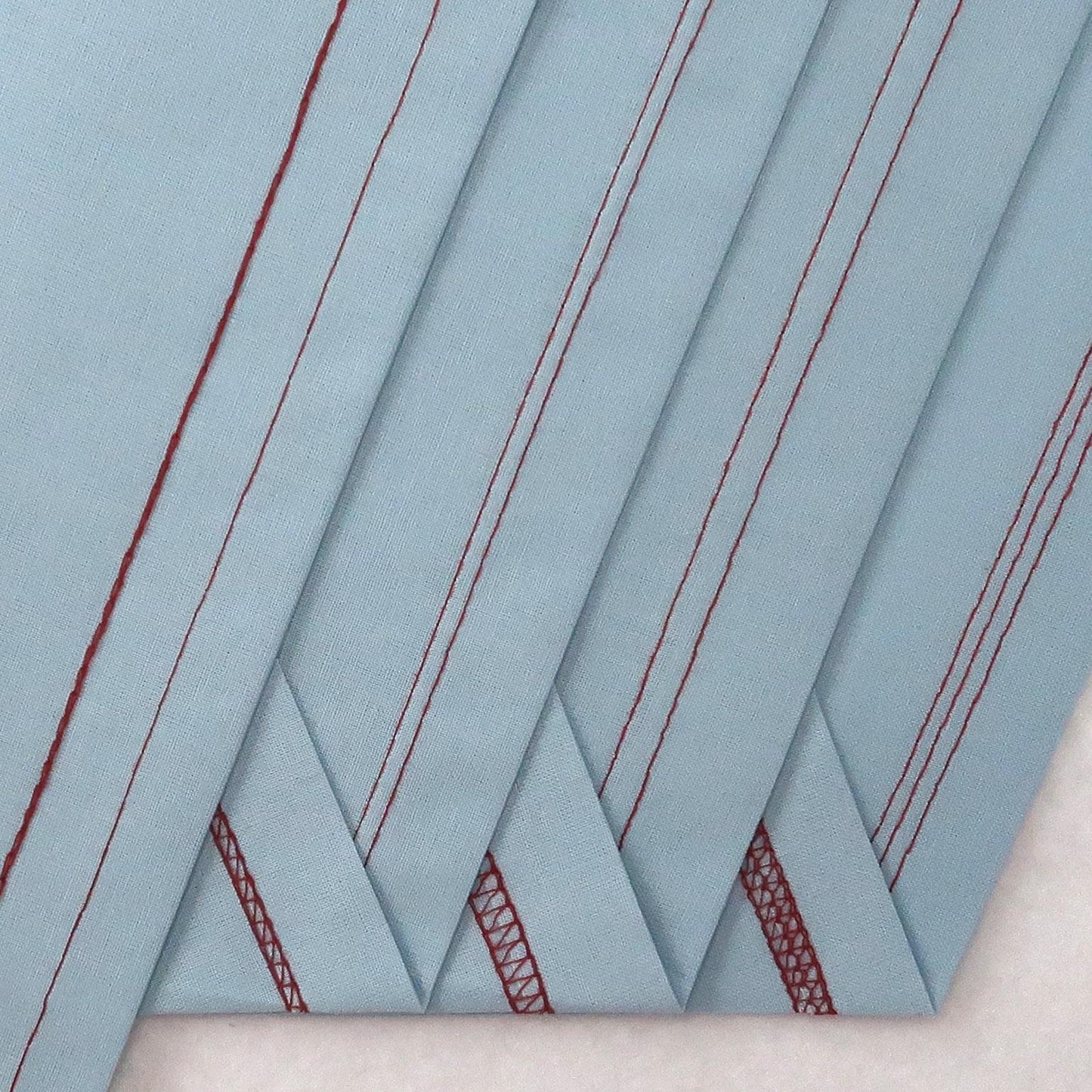

Coverstitch: triple, wide (6mm), narrow (3mm) & single chain stitch ✔
Overlocking stitch Options: 4/3/2 Thread ✔
Exclusive Wave Stitch and Reverse Wave Stitch ✘

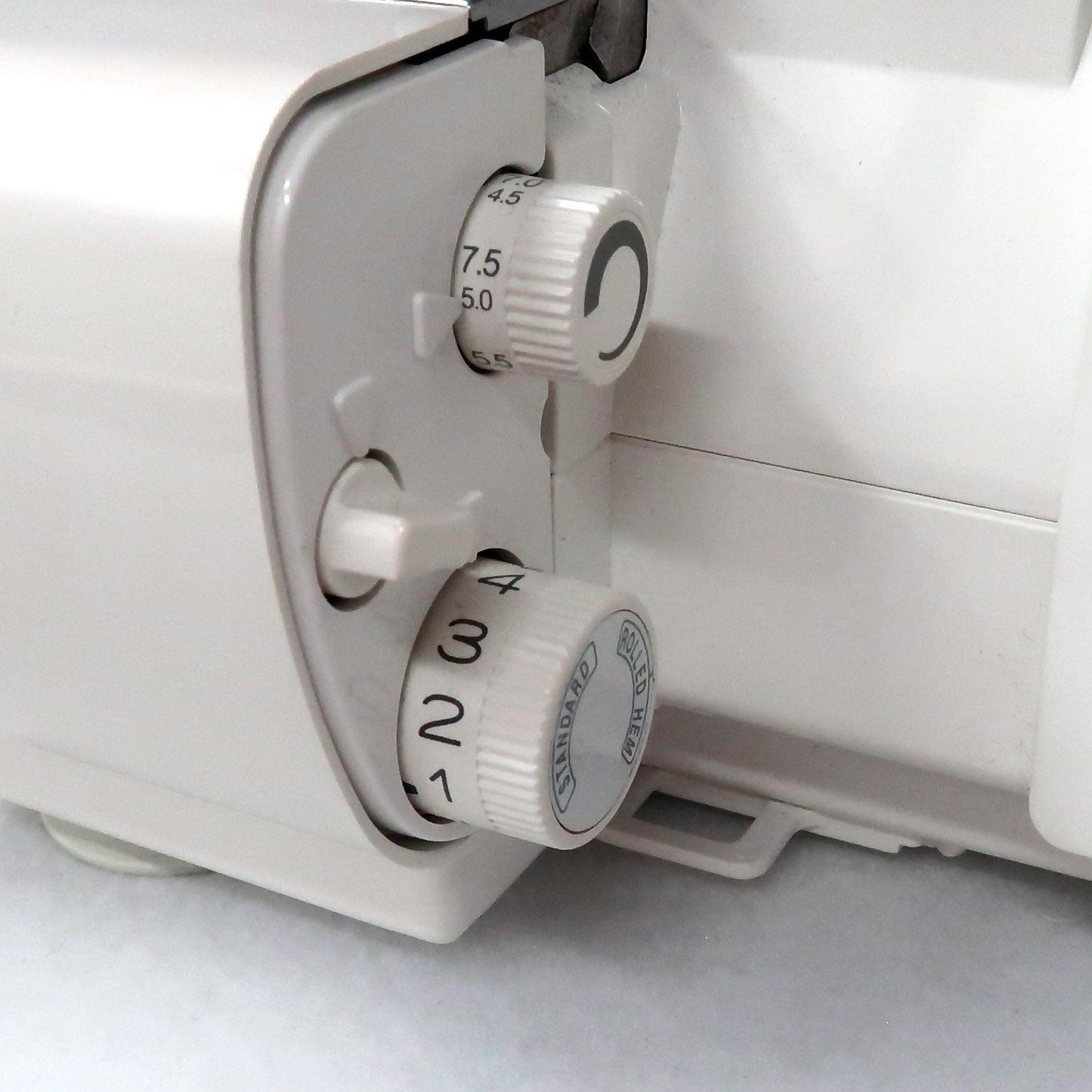

Automatic rolled hem stitch with the turn of a dial ✔
Flatlock stitch option for seaming and decorative effects ✔
Stitch Length 0.75 to 4mm
Stitch Width – Overlocking 1.5 to 7.5mm
Stitch Width – Expressive (overlocking & coverstitch combined) Up to 16mm
Heavy duty cutting system – cut thick fabrics easily ✔
Presser Foot Pressure Adjustment Adjustable Screw
Presser Foot Height 4.5mm
Sewing speed (stitches per minute) up to 1500
Convenience Features
Thread Stand Tray with Magnet ✘
Colour Coded Quick Reference Threading Guide ✔
Built-in Manual Needle Threader ✘
Position of presser foot lever Rear
Included Foot Grooved Foot
Built in Thread Cutter ✔
Guard plate for needle screws ✘
Built in Accessory Storage ✔
Safety Switches 3
Needle Drop Tray ✔
Electronic Foot Control ✔
Other Features
Needle Type EL 705 CF
Machine Weight 8.3KG
Made in Japan & 5 Year Conditional Warranty ✔
Optional Accessories
Optional Feet Available 16
Optional Attachments 13
Compatibility with Knit Binders/Lap Seam Binder ✘
Clear Extension Table Compatibility CT-1
