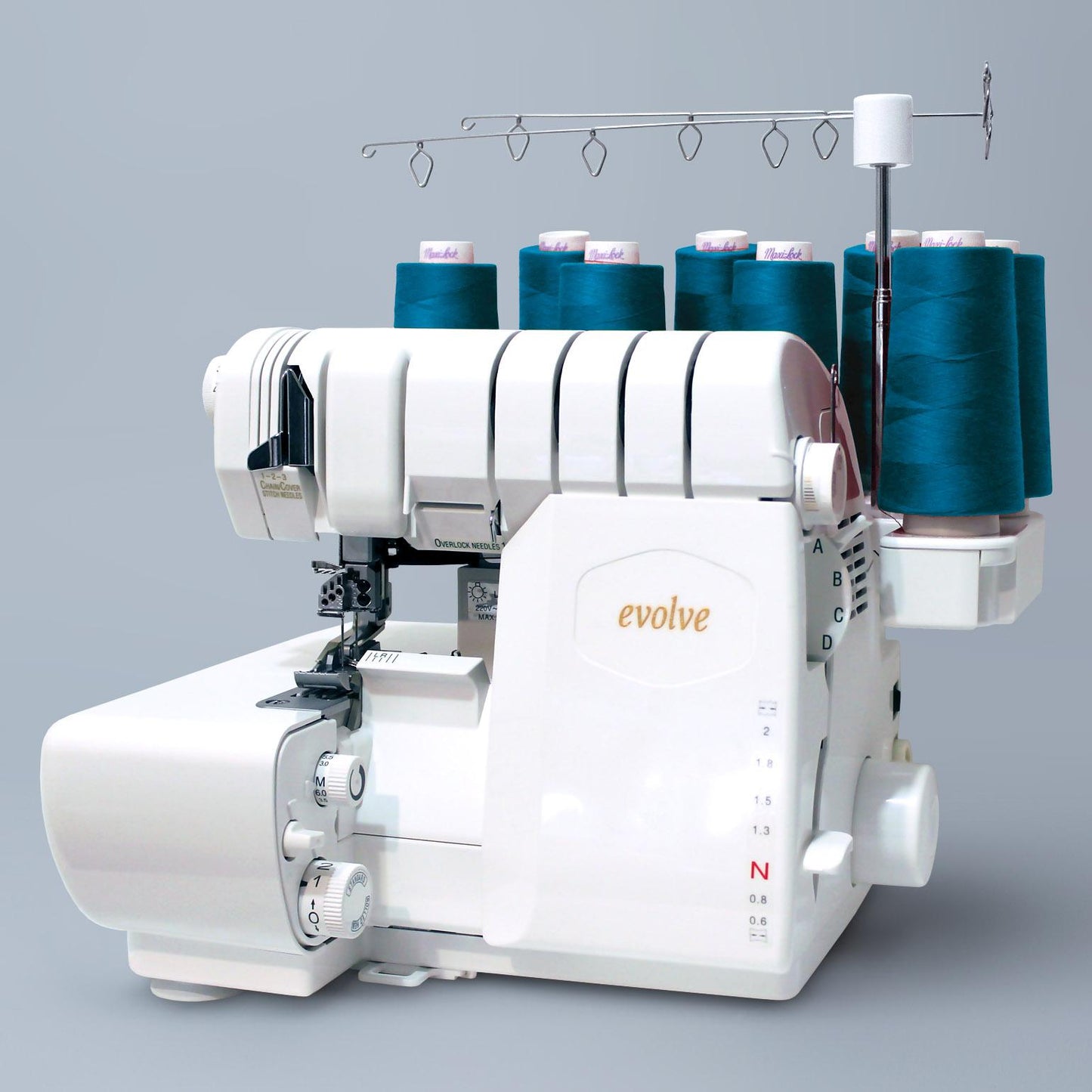

The Evolve is a combination 8-thread overlocker/coverstitch machine that offers an amazing 66 stitch options. Combine overlock, coverstitch and chain stitches to form expressive 5,6,7 and 8 thread stitches.
The Evolve has all the patented features you would expect on a Baby Lock including JetAir™ Threading, Automatic Thread Delivery (ATD) System, tubular loopers, automatic cover stitch chain off and much more. There's no need to worry about keeping track of eight threads - the Evolve can be threaded in any order - in fact, the Evolve can be easily threaded in under one minute!
Converting the Evolve from Overlocking to coverstitch and back is just 4 easy steps.
Evolve features:

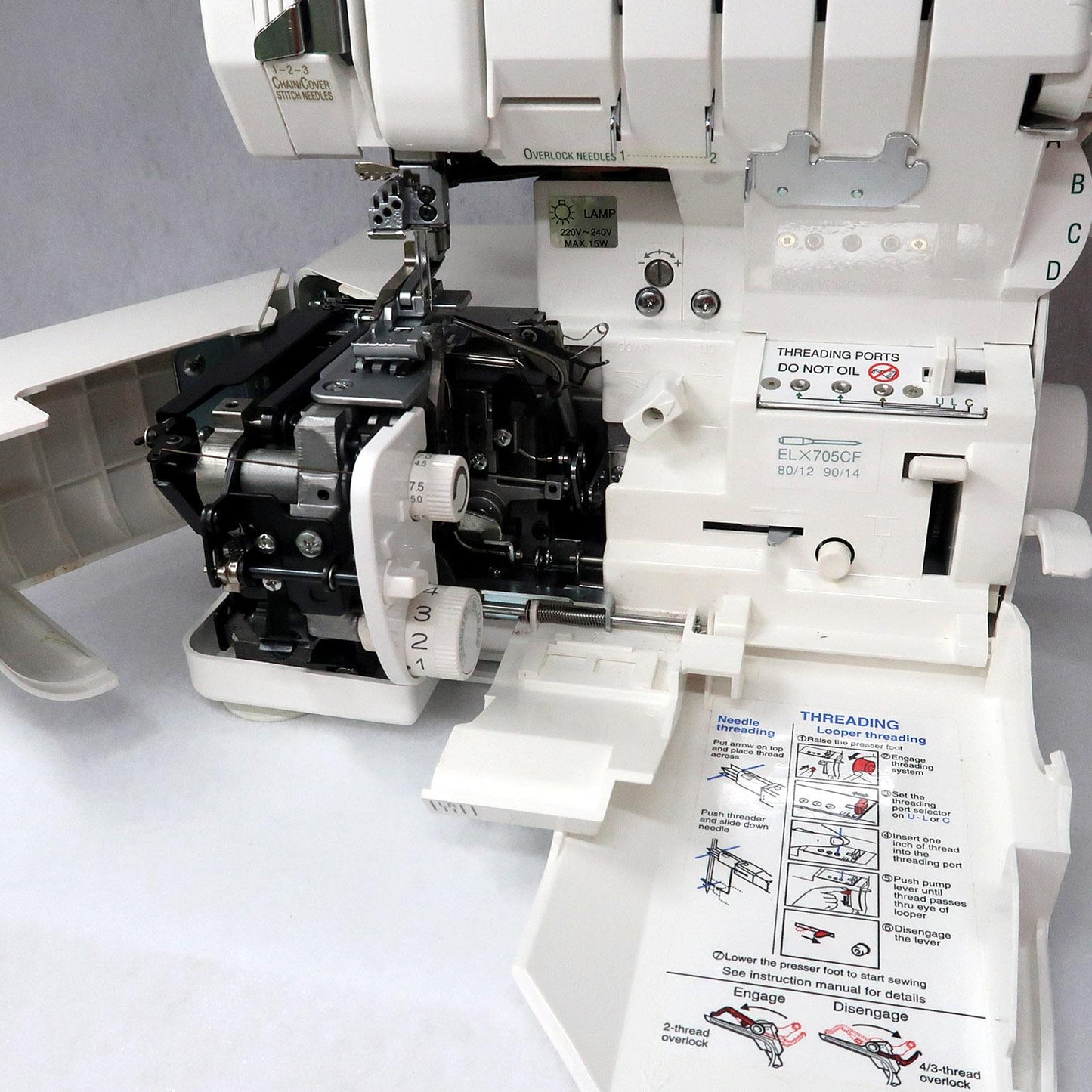

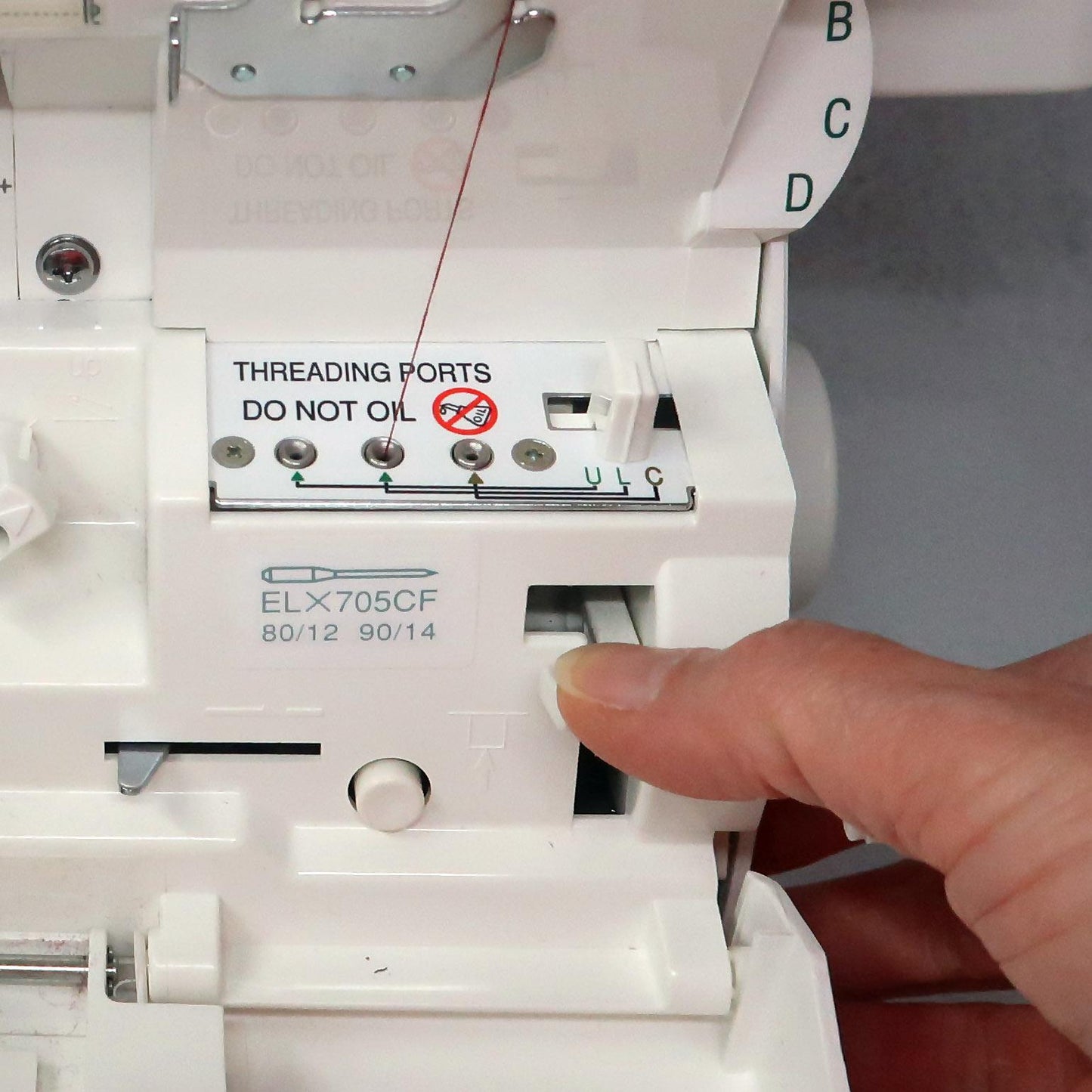

- JetAir™ Threading for loopers
- Automatic Thread Delivery (ATD) System - no tensions

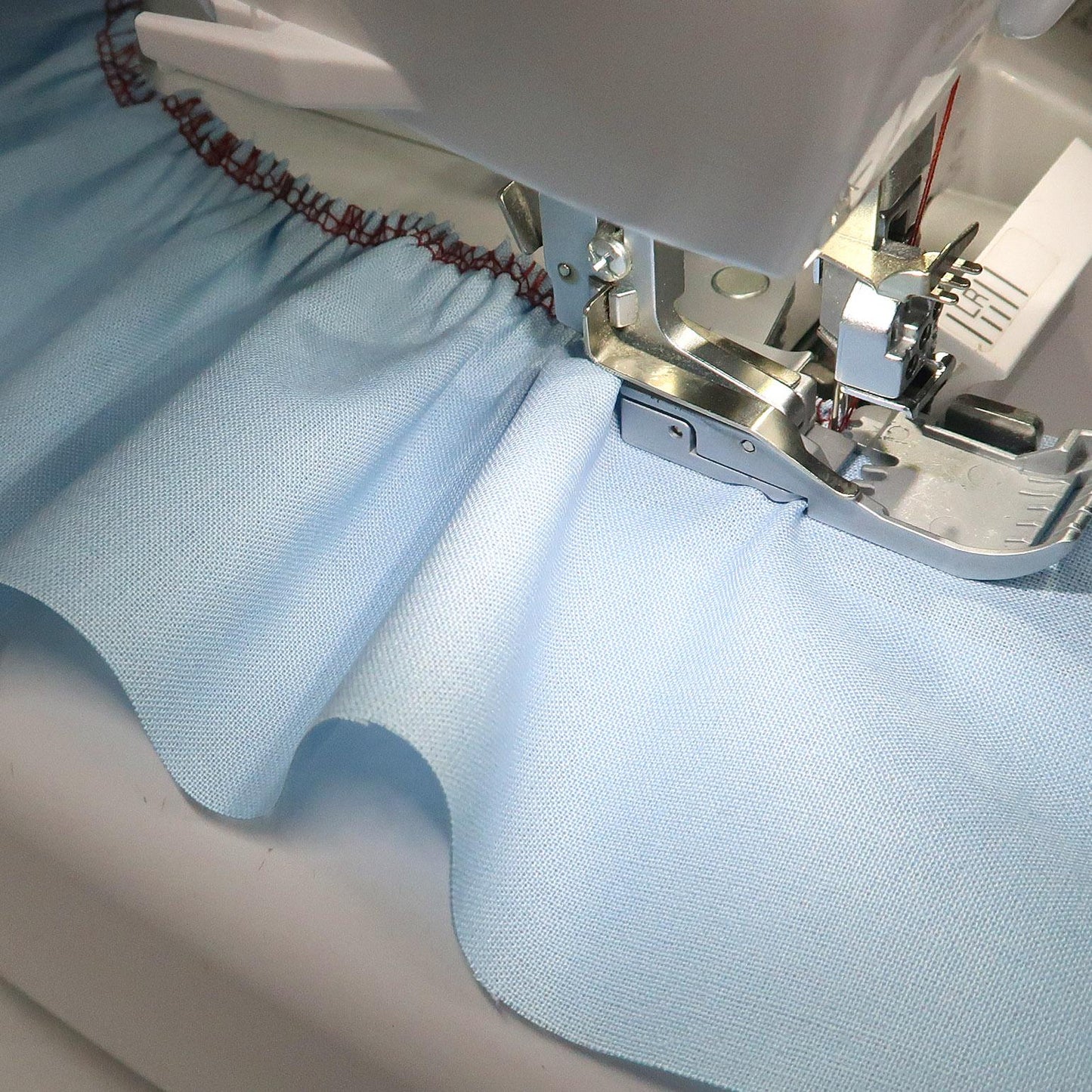

- True 2 to 1 ratio differential feed
- Automatic rolled hem stitch
What's in the box
What's in the box
Downloads
Downloads
Evolve Specifications
| Specifications | |
|---|---|
| Machine Type | 8-Thread Overlocker |
| Machine Type | Coverstitch |
| Threading System | JetAir™ |
| Key Technology | |
| Number of Threads | 8 |
| RevolutionAir™ Threading – Needles & Loopers | ✘ |
| ExtraordinAir™ Threading | ✘ |
| NEW JetAir™ (easier looper threader engagement) | ✘ |
| JetAir™ Threading | ✔ |
| Tension System | Auto Thread Delivery (ATD) System |
| Lighting | Standard Globe |
| Throat Space | - |
| True 2 to 1 ratio differential feed - ranging from 0.6 to 2 | ✔ |
| Knee Lift (Presser Foot) | ✘ |
| Variable Speed Control (easily set the maximum speed) | ✘ |
| Exclusive Fabric Support System | ✔ |
| Vertical Needle System – minimises needle deflection | ✔ |
| Advanced Features | |
| Combination Stitch Options | 66 |
| Coverstitch: triple, wide (6mm), narrow (3mm) & single chain stitch | ✔ |
| Overlocking stitch Options: 4/3/2 Thread | ✔ |
| Exclusive Wave Stitch and Reverse Wave Stitch | ✘ |

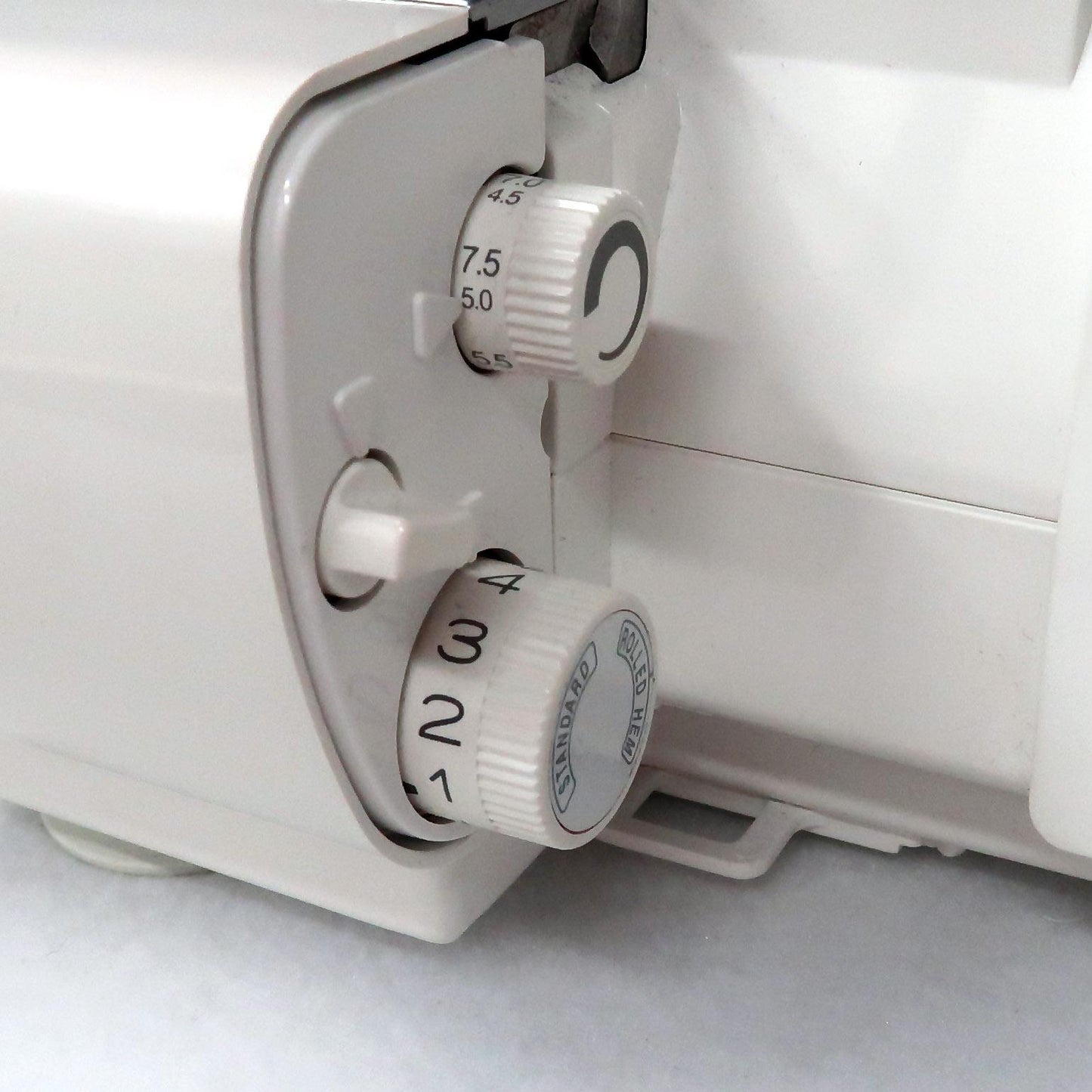

| Automatic rolled hem stitch with the turn of a dial | ✔ |
| Flatlock stitch option for seaming and decorative effects | ✔ |
| Stitch Length | 0.75 to 4mm |
| Stitch Width – Overlocking | 1.5 to 7.5mm |
| Stitch Width – Expressive (overlocking & coverstitch combined) | Up to 16mm |
| Heavy duty cutting system – cut thick fabrics easily | ✔ |
| Presser Foot Pressure Adjustment | Adjustable Screw |
| Presser Foot Height | 4.5mm |
| Sewing speed (stitches per minute) | up to 1500 |
| Convenience Features | |
| Thread Stand Tray with Magnet | ✘ |
| Colour Coded Quick Reference Threading Guide | ✔ |
| Built-in Manual Needle Threader | ✘ |
| Position of presser foot lever | Rear |
| Included Foot | Grooved Foot |
| Built in Thread Cutter | ✔ |
| Guard plate for needle screws | ✘ |
| Built in Accessory Storage | ✔ |
| Saftey Switches | 3 |
| Needle Drop Tray | ✔ |
| Electronic Foot Control | ✔ |
| Other Features | |
| Needle Type | EL 705 CF |
| Machine Weight | 8.3KG |
| Made in Japan & 5 Year Conditional Warranty | ✔ |
| Optional Accessories | |
| Optional Feet Available | 16 |
| Optional Attachments | 13 |
| Compatibility with Knit Binders/Lap Seam Binder | ✘ |
| Clear Extension Table Compatibility | CT-1 |
-
