Euphoria
Euphoria
SKU:BLC4

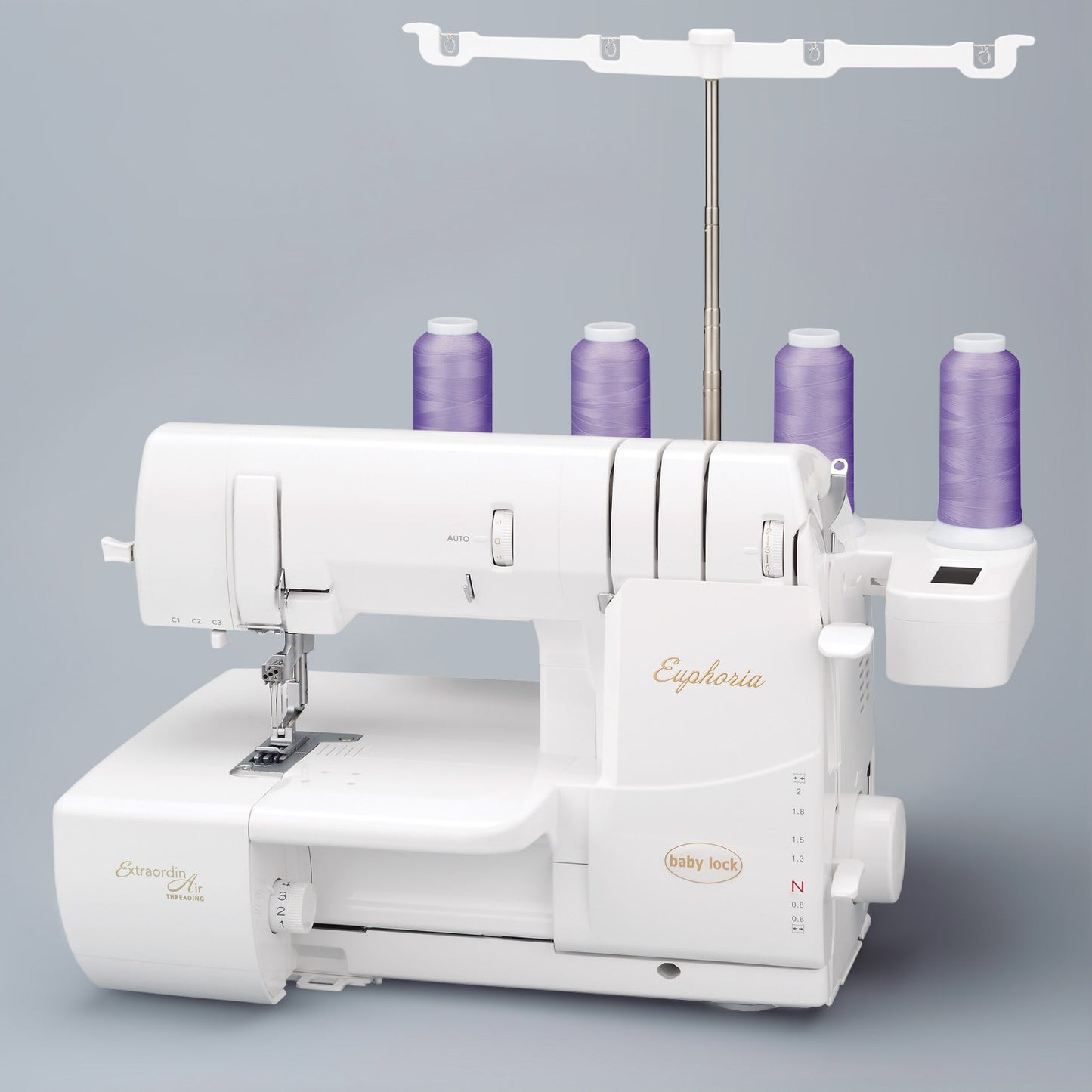

The Euphoria Coverstitch machine is the perfect partner for your 4-thread overlocker, and features the Needle ATD System for a perfectly balanced stitch. It enables sewers to achieve a professional finish on all your garments - perfect for active knitwear and home decor projects.

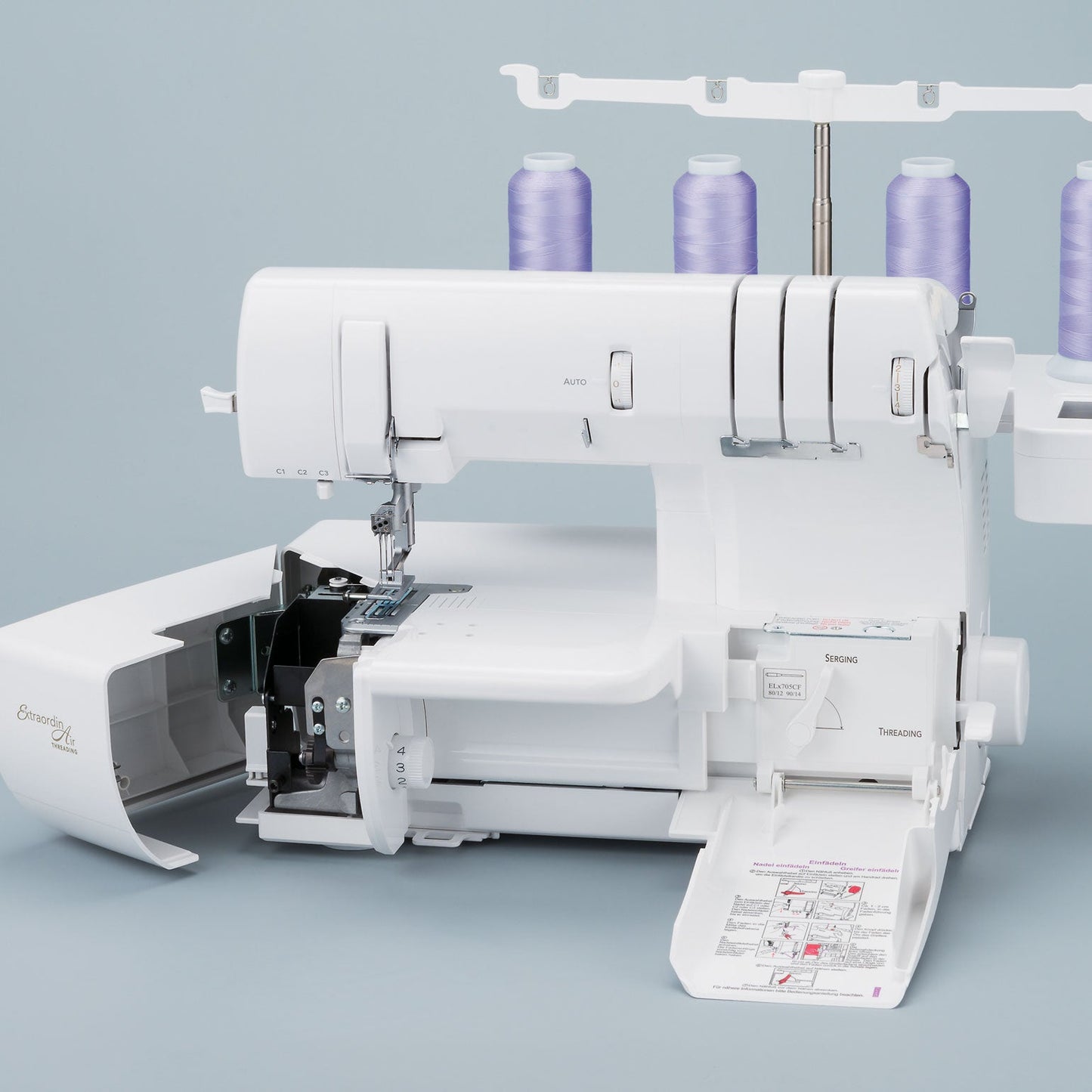

Featuring exclusive Baby Lock features such as ExtraordinAirª Looper Threading, Needle Automatic Thread Delivery (ATD) System, a wide throat space, LED lighting and presser foot knee-lift, you'll enjoy your sewing time with the Euphoria. The Euphoria effortlessly creates triple, wide and narrow coverstitch or chain stitch and offers a professional finish on hems, belt loops, bindings and much more.
Coverstitch features:
- Achieve a professional finish with the Euphoria coverstitch

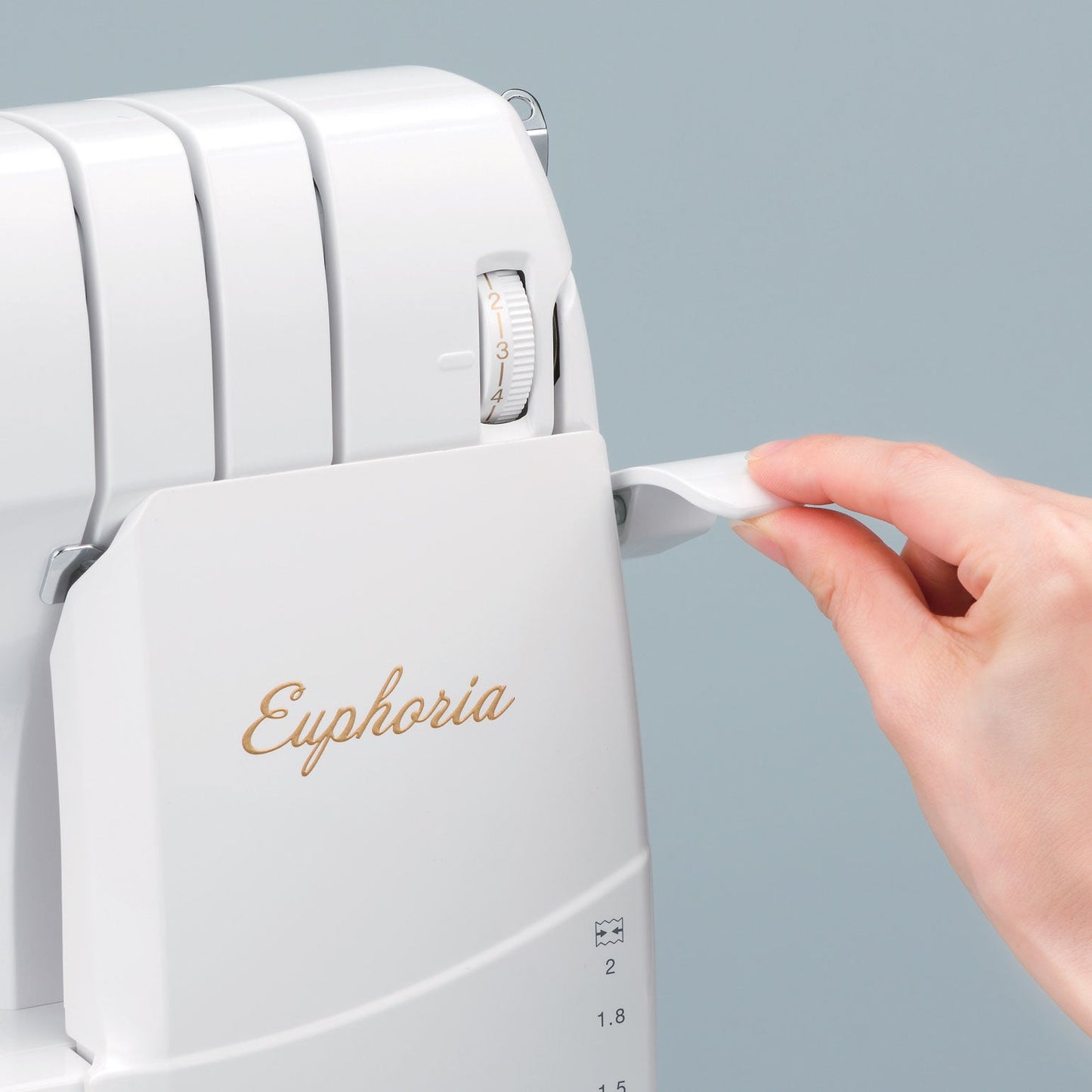

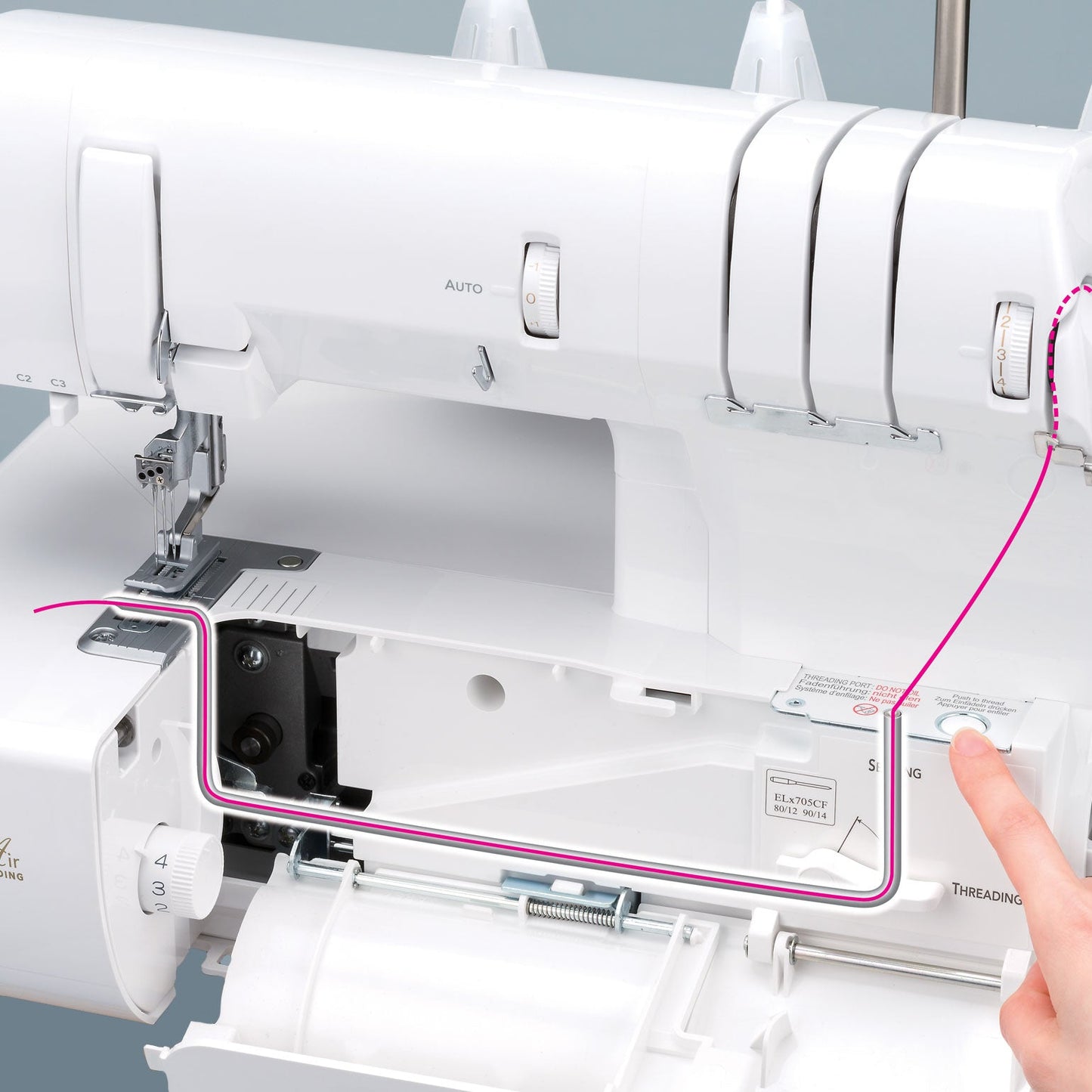

- ExtraordinAirª Threading for chain looper
- Needle Automatic Thread Delivery (ATD) - no tension adjustment for needles
- Wide 5" throat space

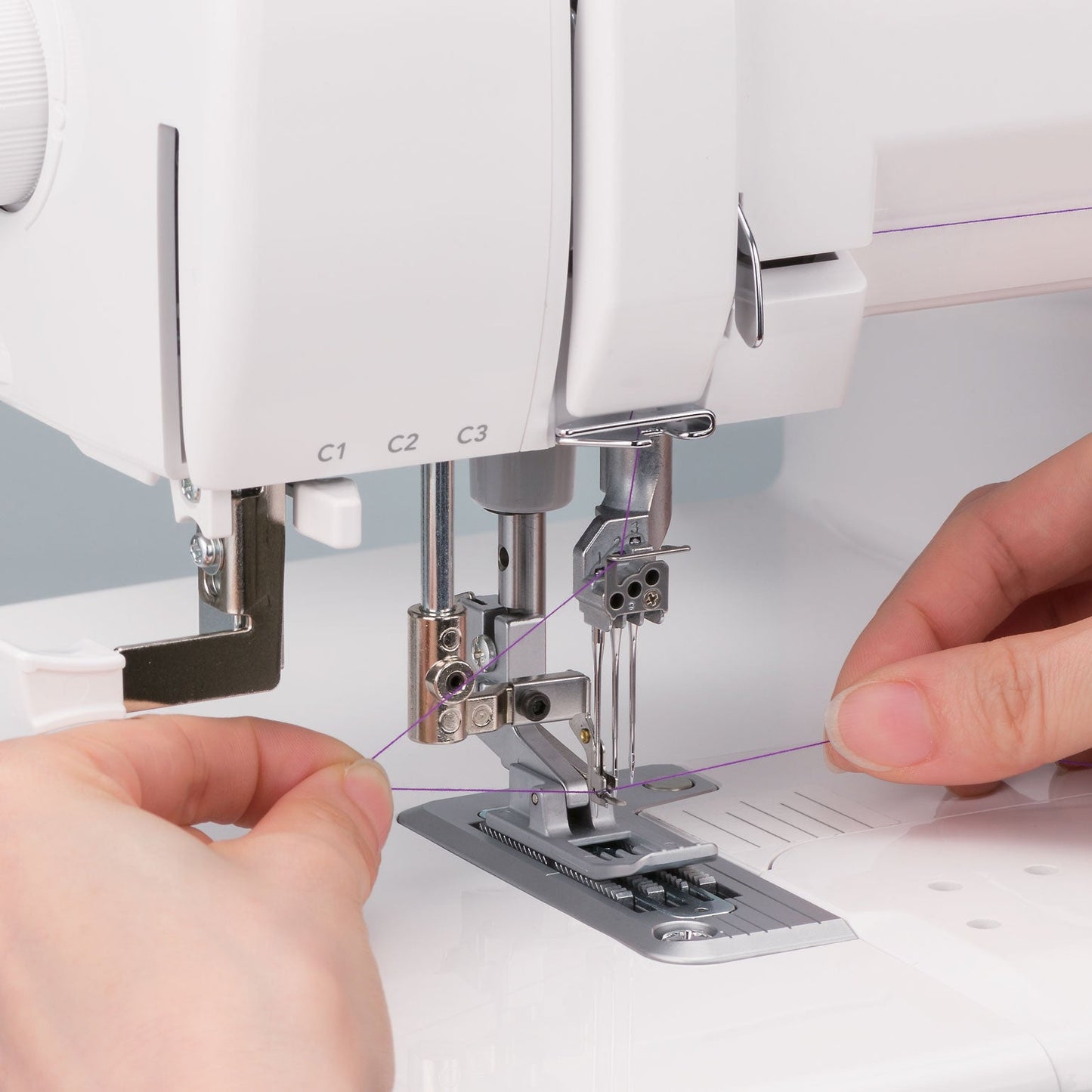

- Built-in needle threader

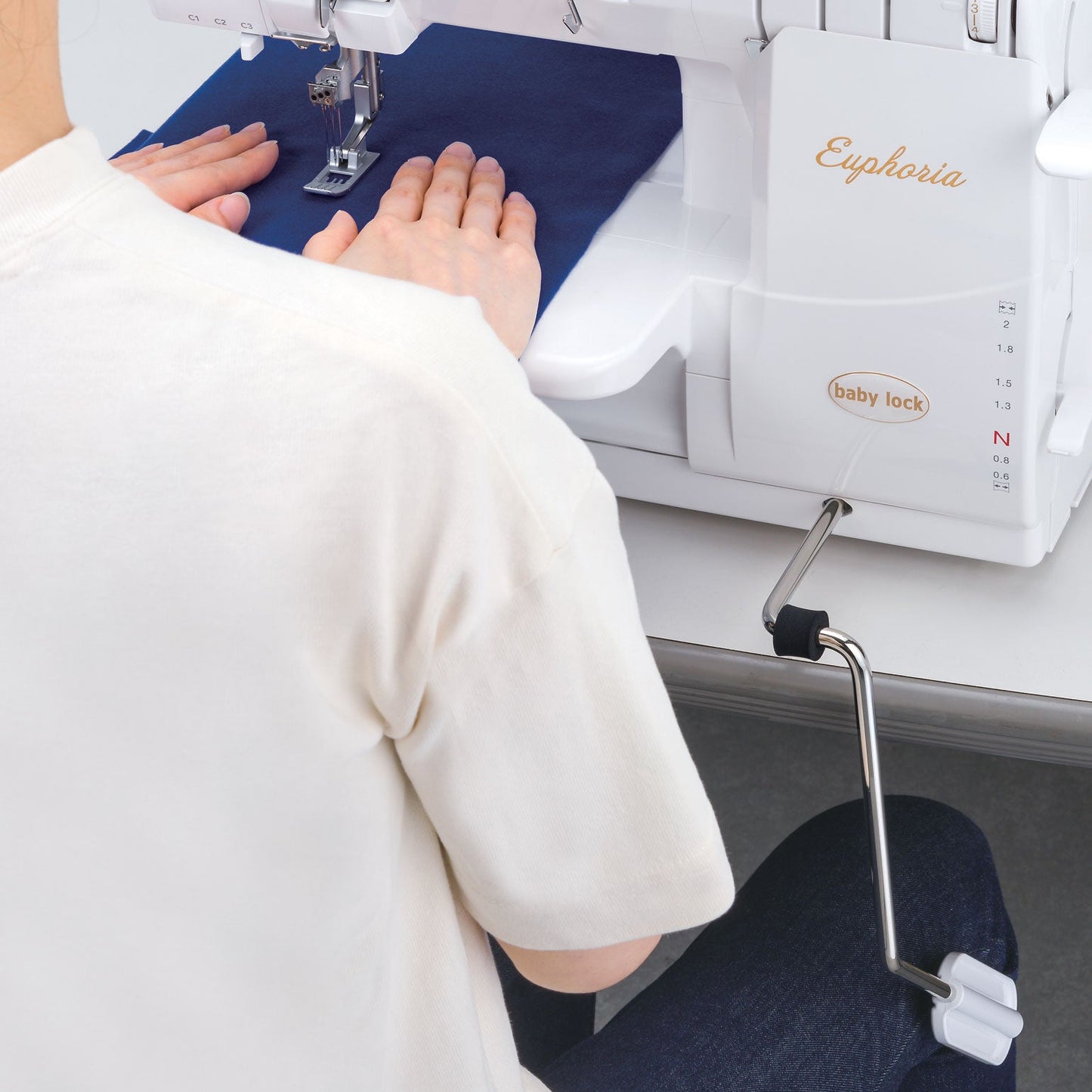

- Presser foot knee-lift

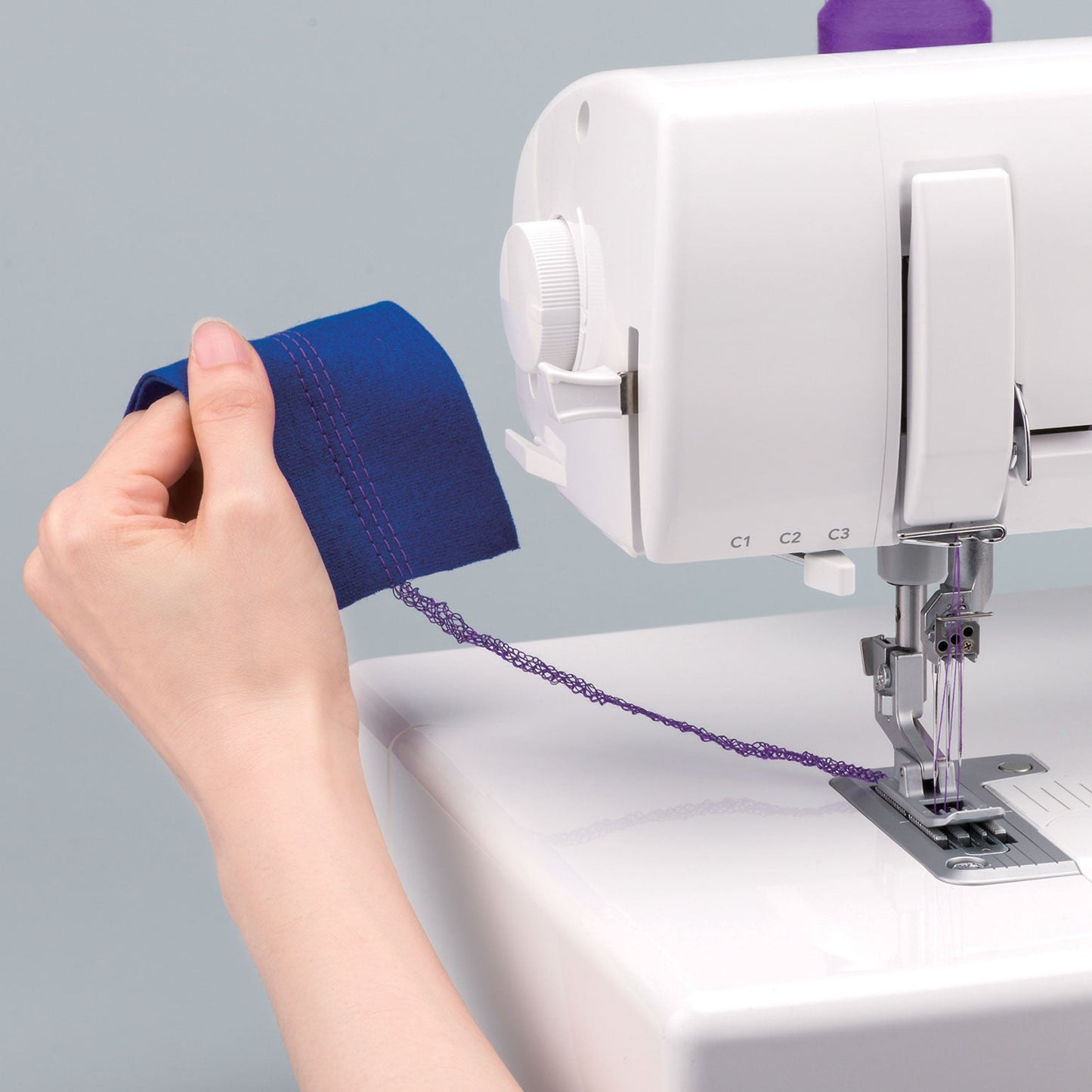

- The ability to continually chain off
What's in the box
What's in the box
Downloads
Downloads
Euphoria Specifications
| Specifications | |
|---|---|
| Machine Type | Coverstitch |
| Threading System | ExtraordinAir™ |
| Key Technology | |
| Number of Threads | 4 |
| RevolutionAir™ Threading – Needles & Loopers | ✘ |
| ExtraordinAir™ Threading | ✔ |
| NEW JetAir™ (easier looper threader engagement) | ✘ |
| JetAir™ Threading | ✘ |
| Tension System | Needle Auto Thread Delivery (ATD) System |

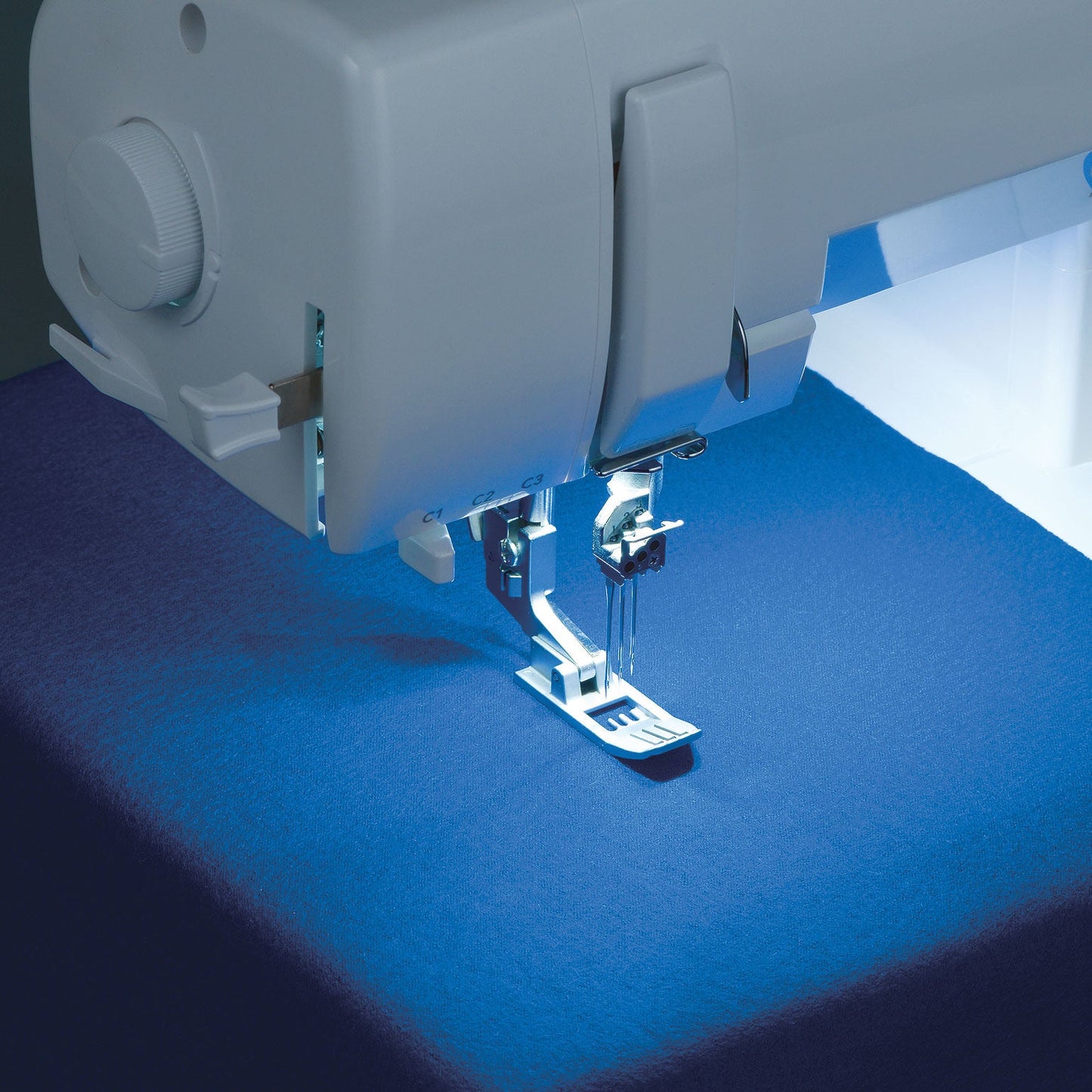

| Lighting | 3 LED |
| Throat Space | 5" |

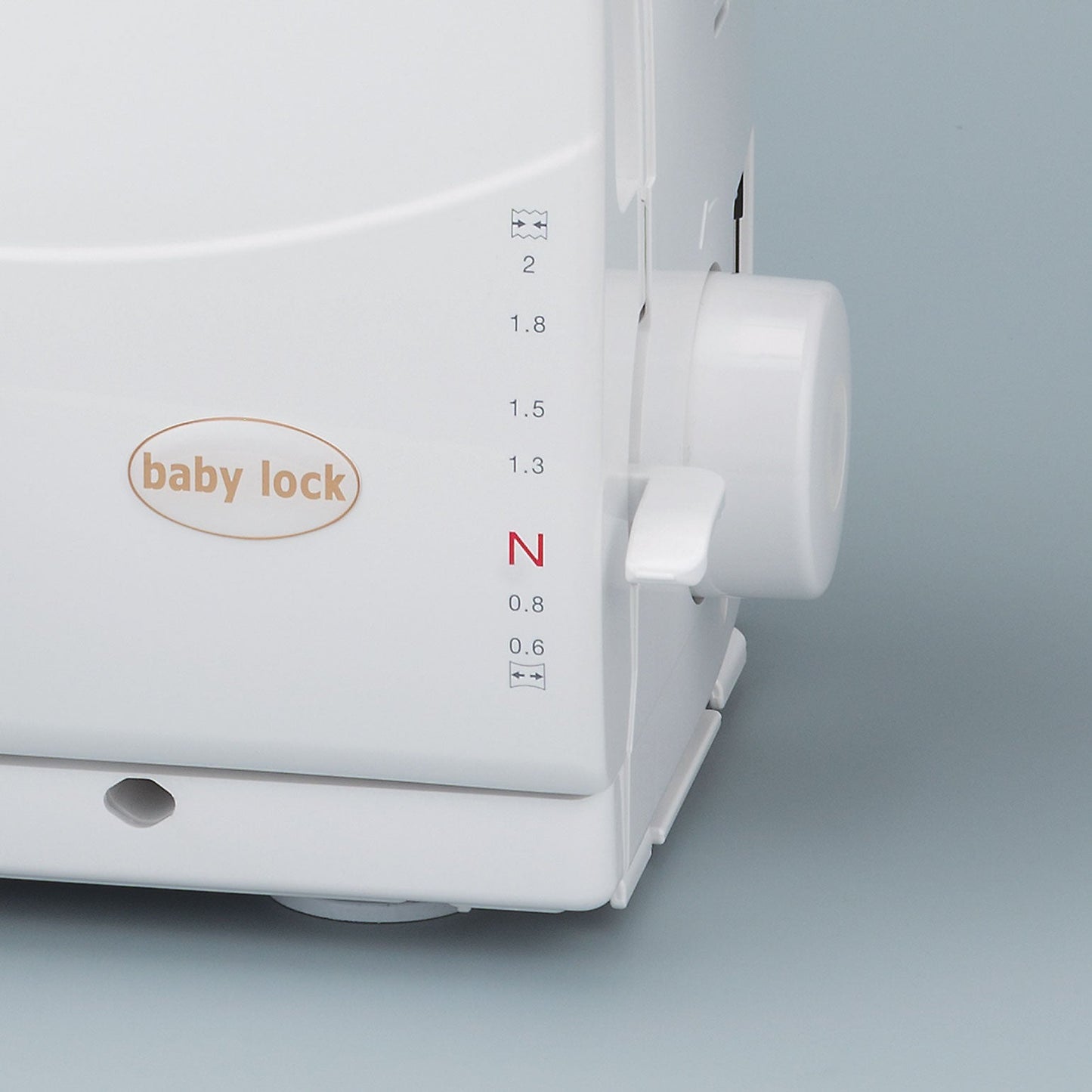

| True 2 to 1 ratio differential feed - ranging from 0.6 to 2 | ✔ |
| Knee Lift (Presser Foot) | ✔ |
| Variable Speed Control (easily set the maximum speed) | ✘ |
| Exclusive Fabric Support System | ✘ |
| Vertical Needle System – minimises needle deflection | ✔ |
| Advanced Features | |
| Combination Stitch Options | - |

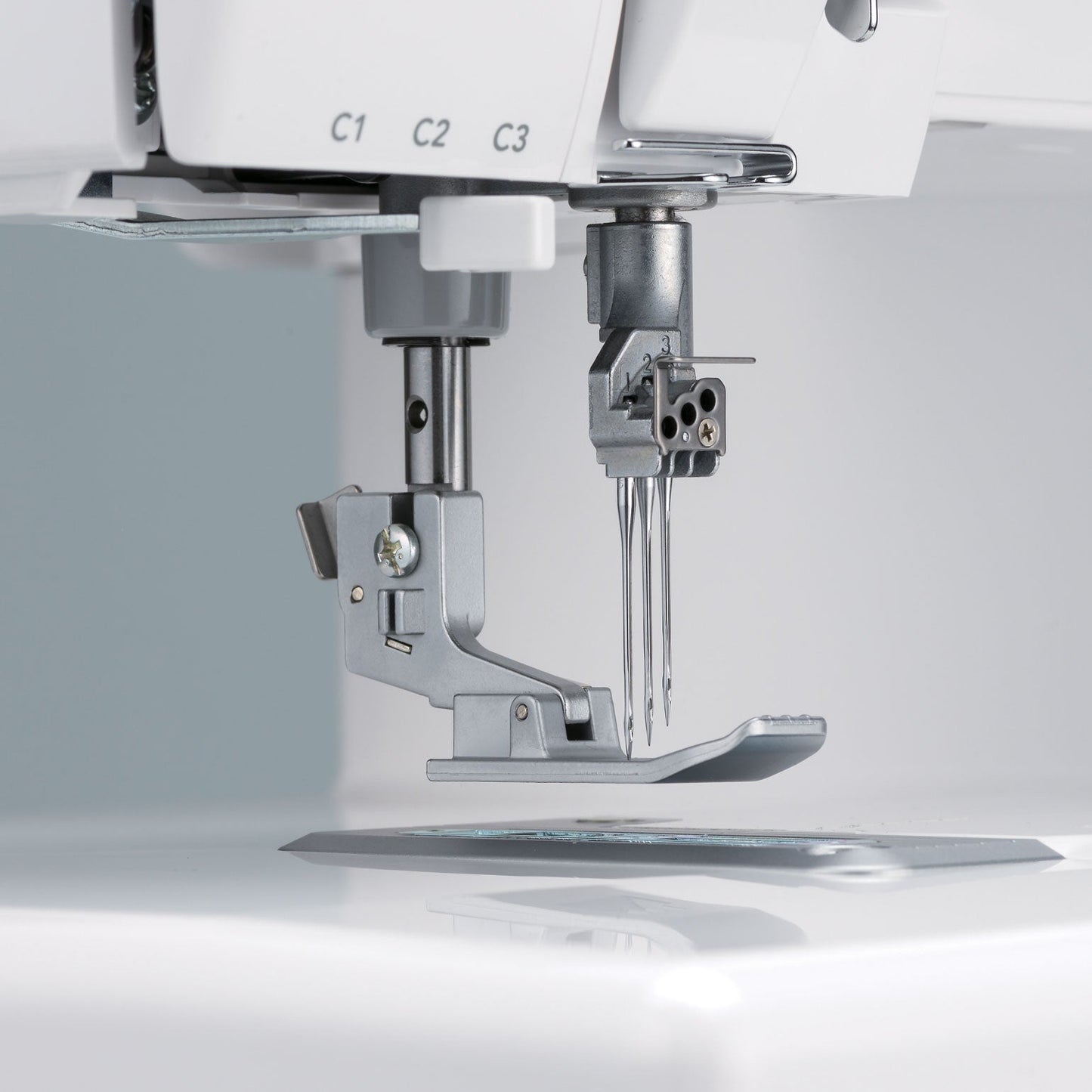

| Coverstitch: triple, wide (6mm), narrow (3mm) & single chain stitch | ✔ |
| Overlocking stitch Options: 4/3/2 Thread | ✘ |
| Exclusive Wave Stitch and Reverse Wave Stitch | ✘ |
| Automatic rolled hem stitch with the turn of a dial | ✘ |
| Flatlock stitch option for seaming and decorative effects | ✘ |
| Stitch Length | 1 to 4mm |
| Stitch Width – Overlocking | - |
| Stitch Width – Expressive (overlocking & coverstitch combined) | - |
| Heavy duty cutting system – cut thick fabrics easily | ✘ |
| Presser Foot Pressure Adjustment | Easy Dial |
| Presser Foot Height | 5.5mm |
| Sewing speed (stitches per minute) | up to 1500 |
| Convenience Features | |

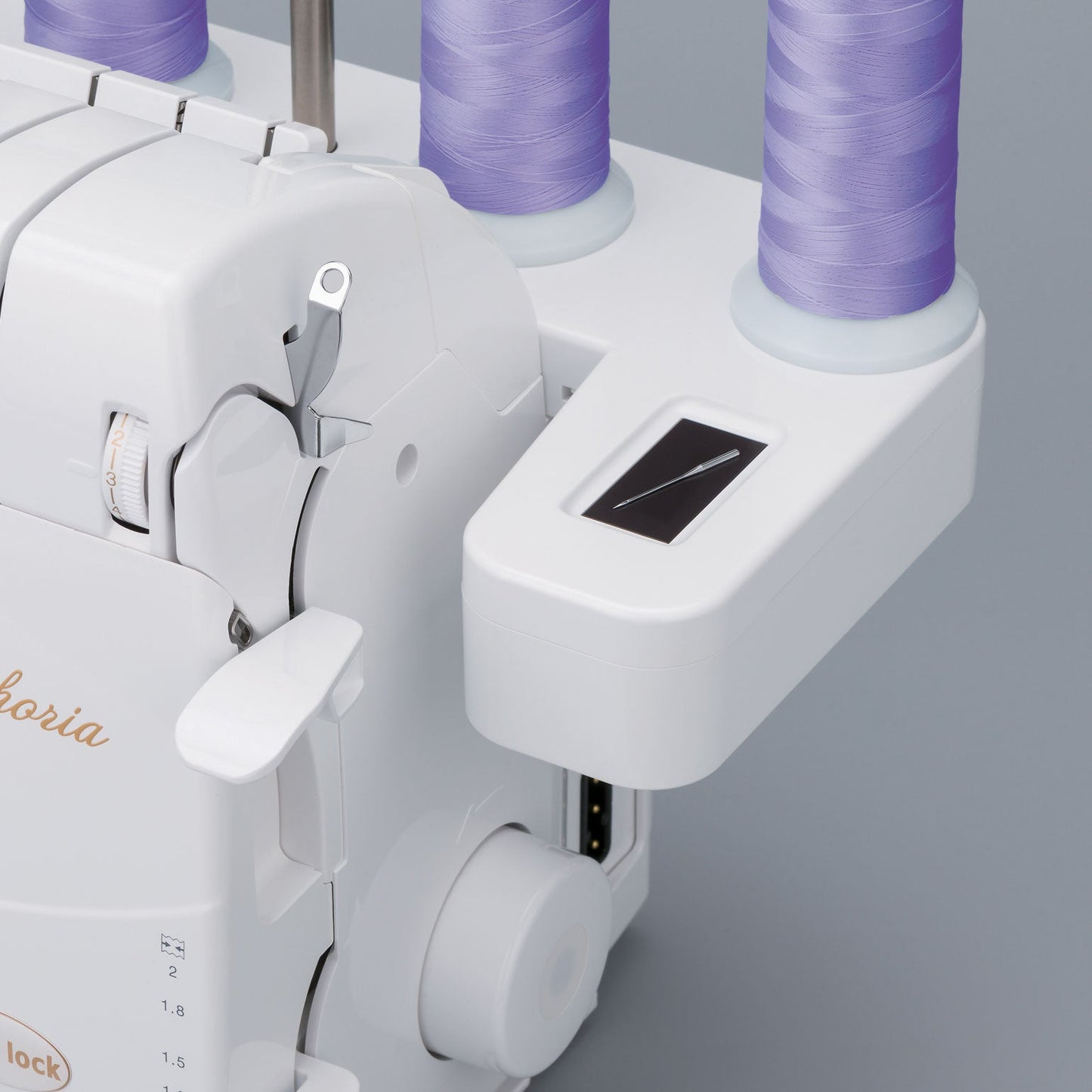

| Thread Stand Tray with Magnet | ✔ |
| Colour Coded Quick Reference Threading Guide | ✘ |
| Built-in Manual Needle Threader | ✔ |
| Position of presser foot lever | Right Side |
| Included Foot | Flat Sole Foot |
| Built in Thread Cutter | ✔ |
| Guard plate for needle screws | ✔ |
| Built in Accessory Storage | ✔ |
| Saftey Switches | 3 |
| Needle Drop Tray | ✔ + Magnet |
| Electronic Foot Control | ✔ |
| Other Features | |
| Needle Type | EL 705 CF |
| Machine Weight | 11.6KG |
| Made in Japan & 5 Year Conditional Warranty | ✔ |
| Optional Accessories | |
| Optional Feet Available | 7 |
| Optional Attachments | 20 |
| Compatibility with Knit Binders/Lap Seam Binder | ✔ |
| Clear Extension Table Compatibility | CT-5S |
-
