Enlighten
Enlighten
SKU:BLE3ATW-2

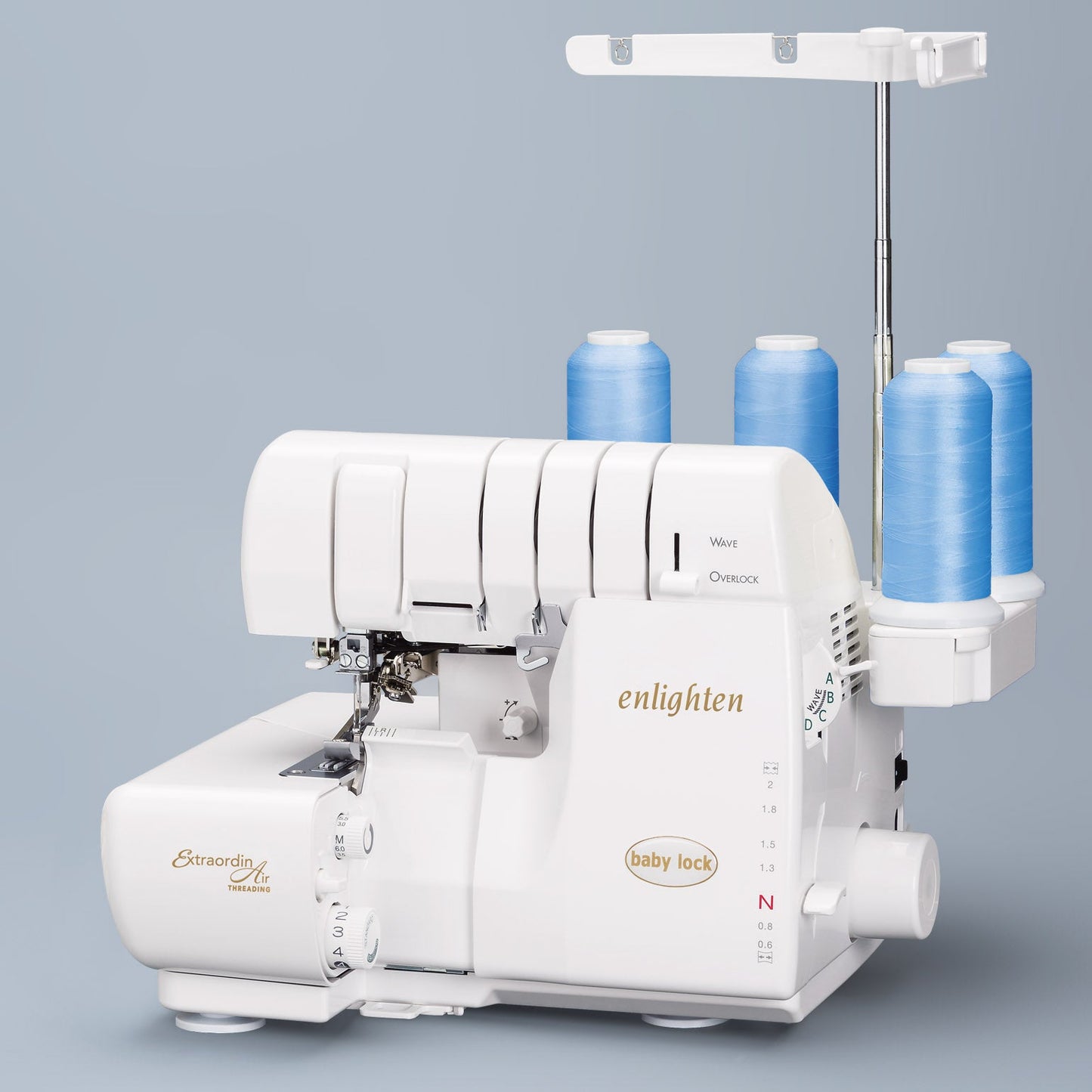

The Enlighten is an amazing 4-thread overlocker designed for unrivalled ease-of-use, with 11 patented features exclusive to Baby Lock such as the ExtraordinAir™ Threading - with just the push of a button, both loopers are threaded instantly!
The Enlighten has had a revamp - in addition to its already amazing features, the Enlighten now has a 6mm presser foot height, which makes overlocking on thicker fabrics a breeze.
The Enlighten also offers time-saving features like built-in needle threaders, tubular loopers and Automatic Thread Delivery (ATD) System, as well as the beautiful exclusive wave stitch for fabulous decorative finishes.
Enlighten features:

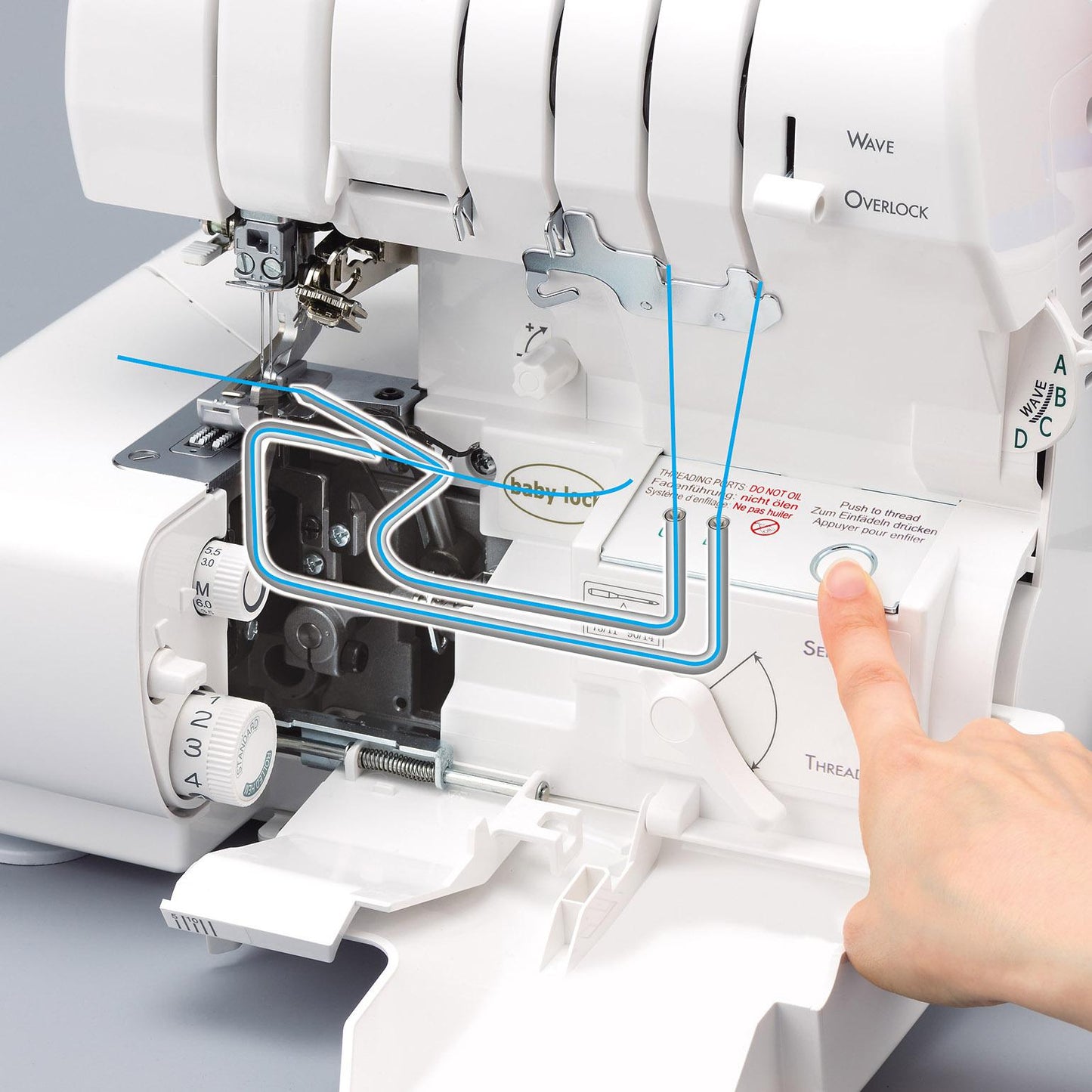

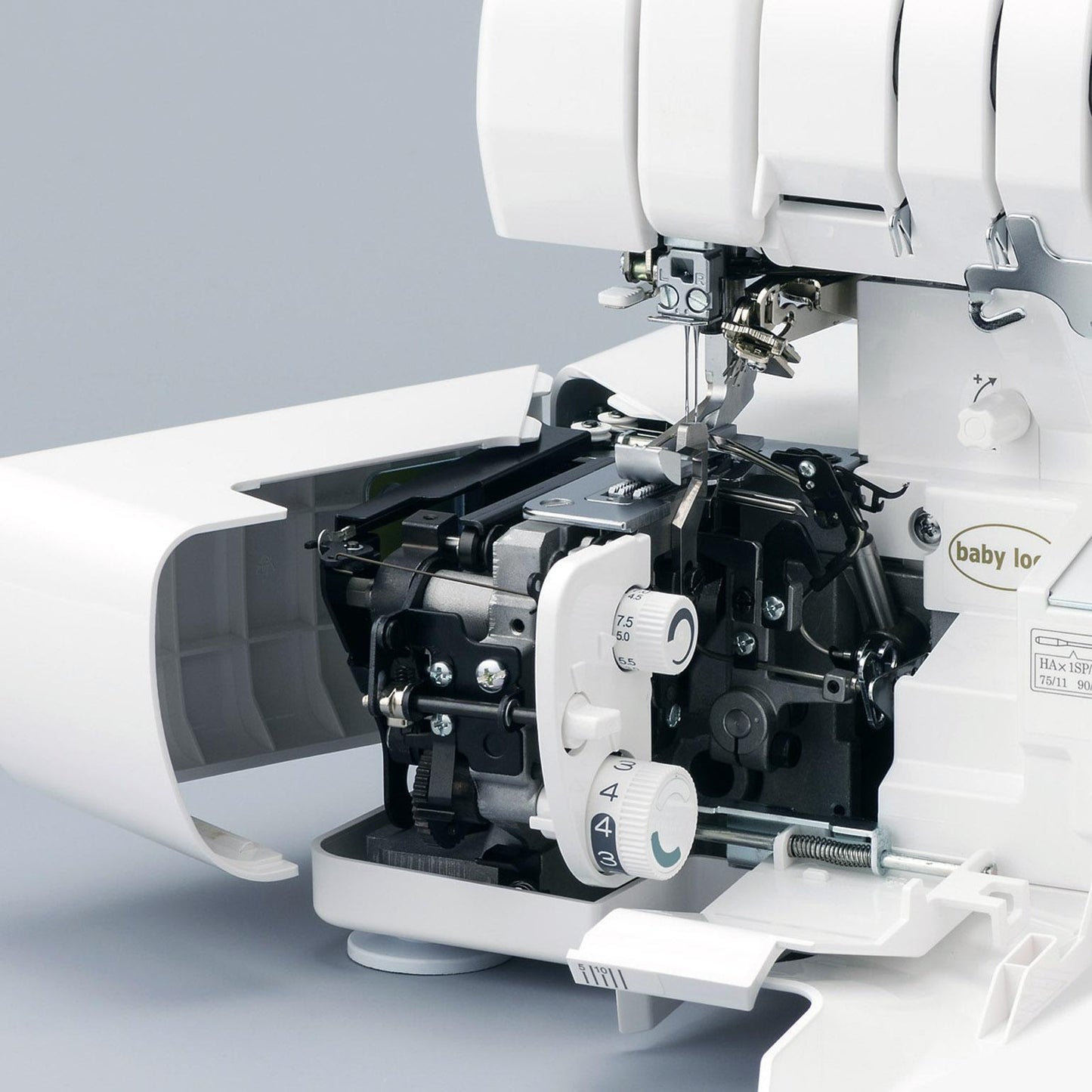

- ExtraordinAirª Threading for loopers
- Automatic Thread Delivery (ATD) System - no tensions

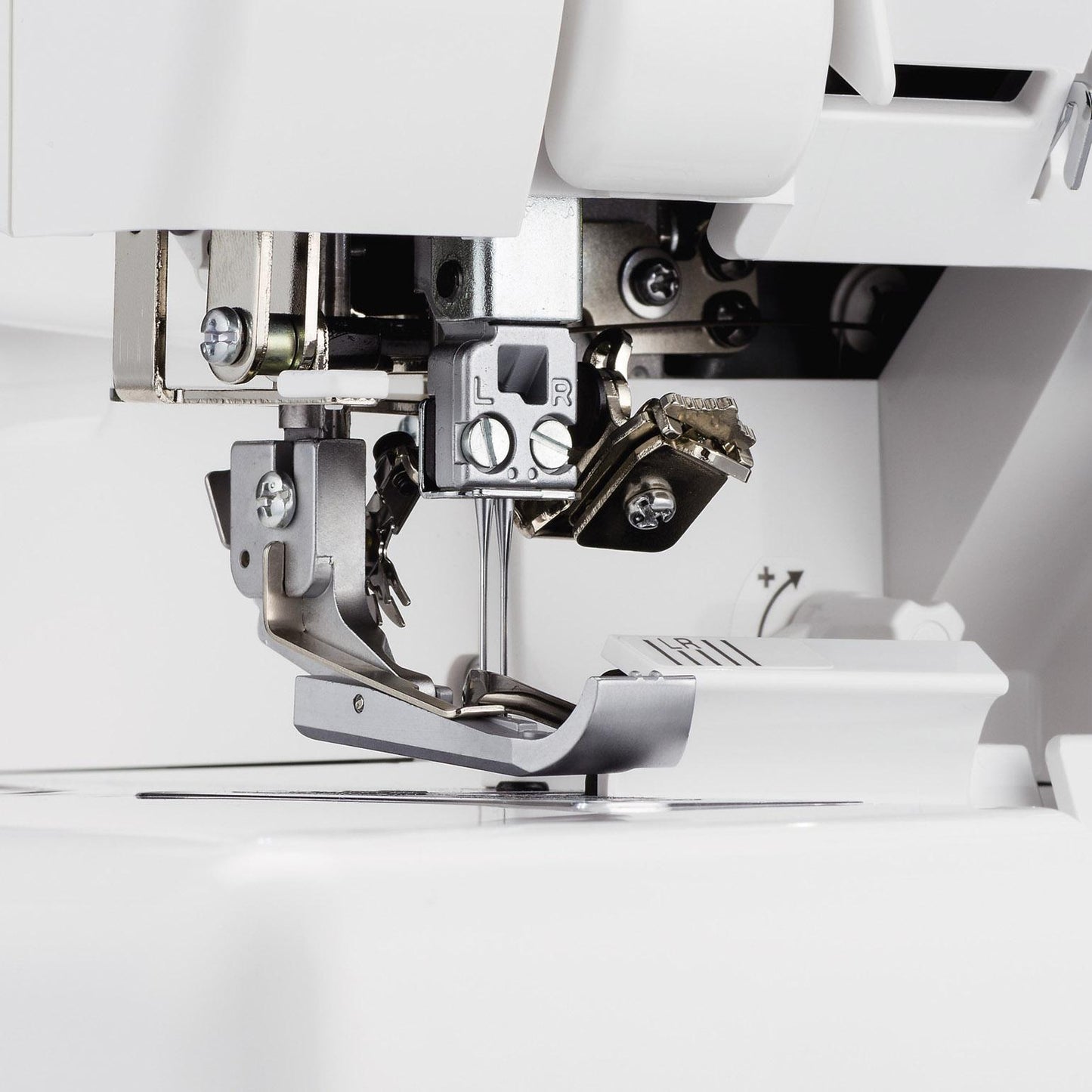

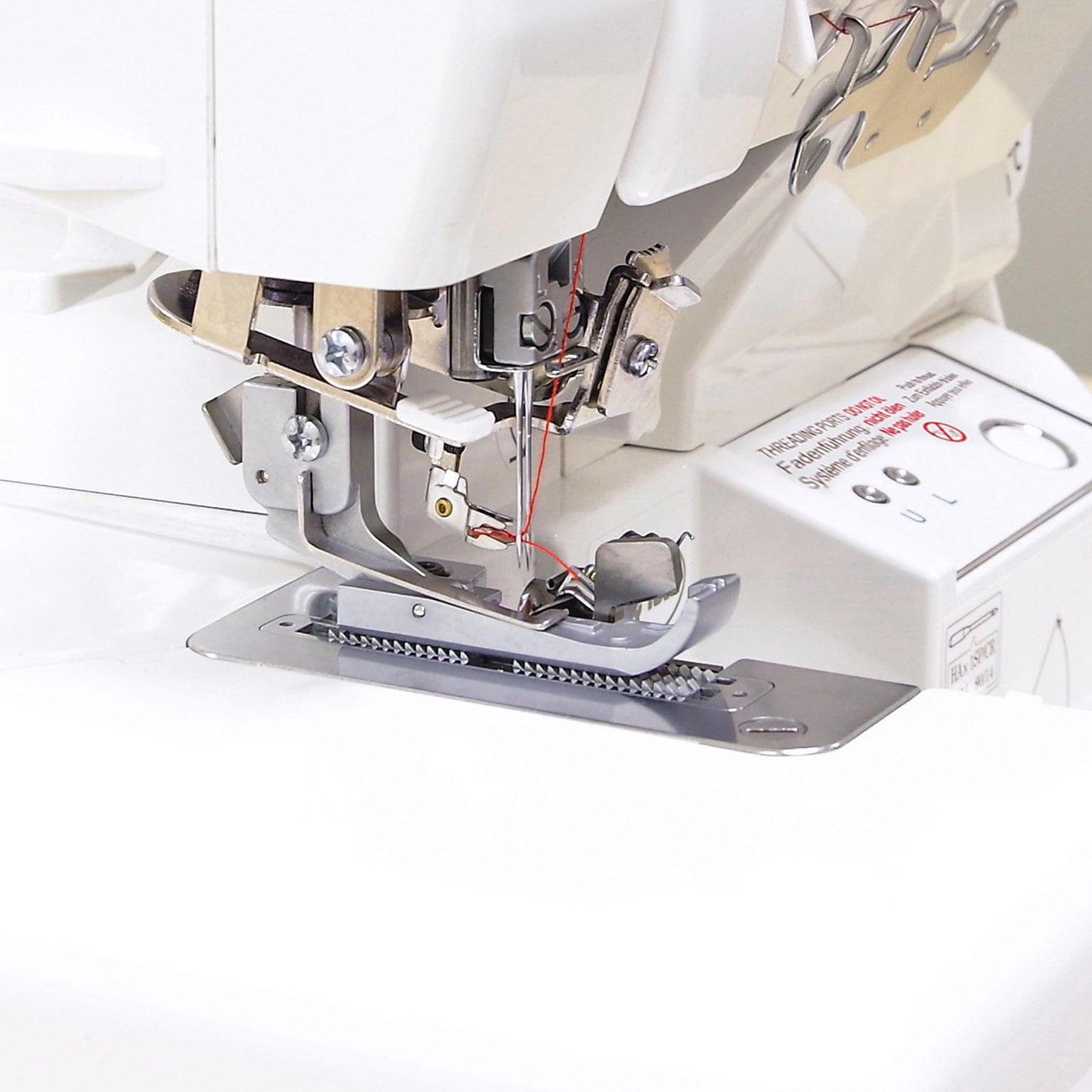

- 6mm Presser foot height
- Built-in needle threader

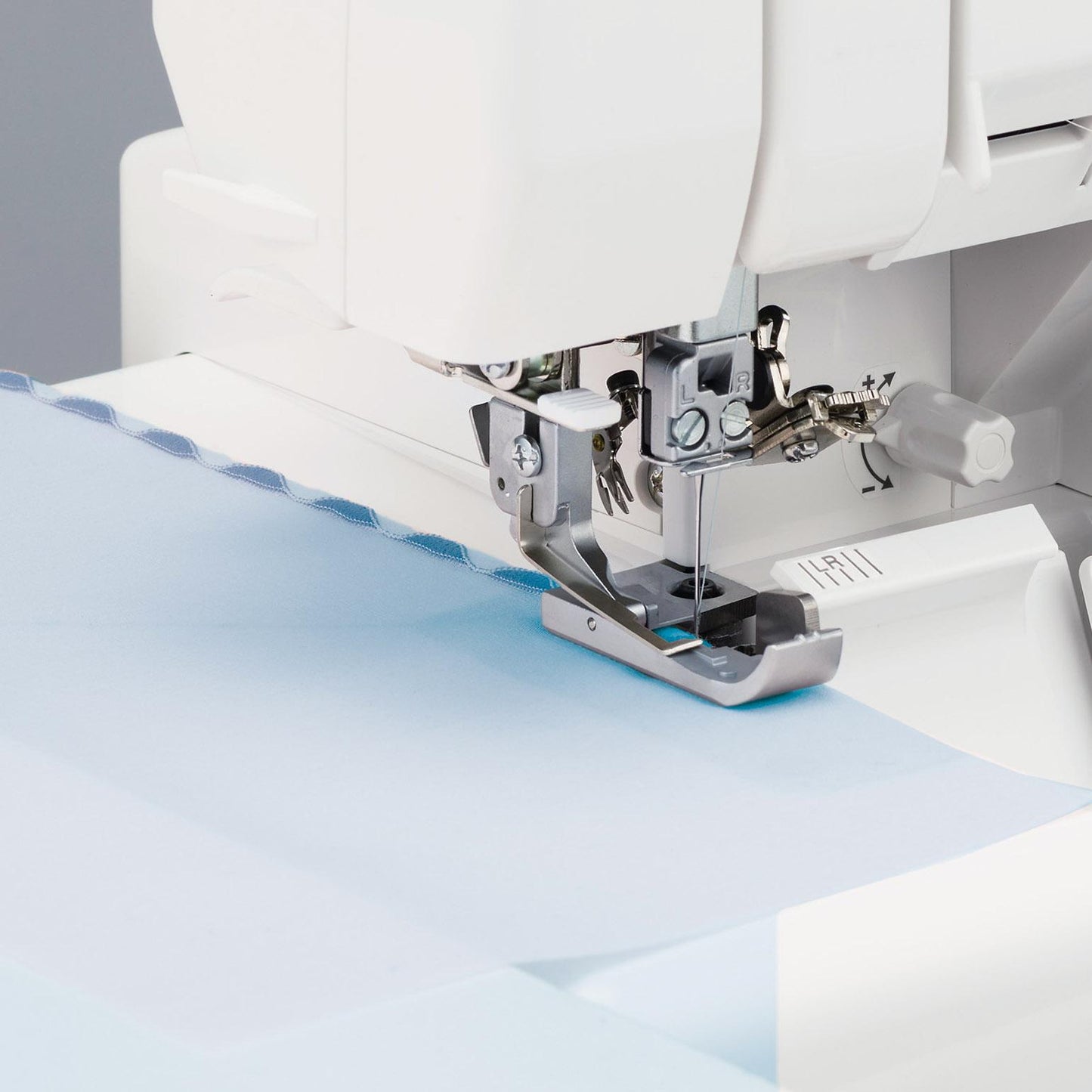

- Exclusive wave and reverse wave stitch
What's in the box
What's in the box
Downloads
Downloads
Enlighten Specifications
| Specifications | |
|---|---|
| Machine Type | 4-Thread Overlocker |
| Threading System | ExtraordinAir™ |
| Key Technology | |
| Number of Threads | 4 |
| RevolutionAir™ Threading – Needles & Loopers | ✘ |
| ExtraordinAir™ Threading | ✔ |
| NEW JetAir™ (easier looper threader engagement) | ✘ |
| JetAir™ Threading | ✘ |
| Tension System | Auto Thread Delivery (ATD) System |

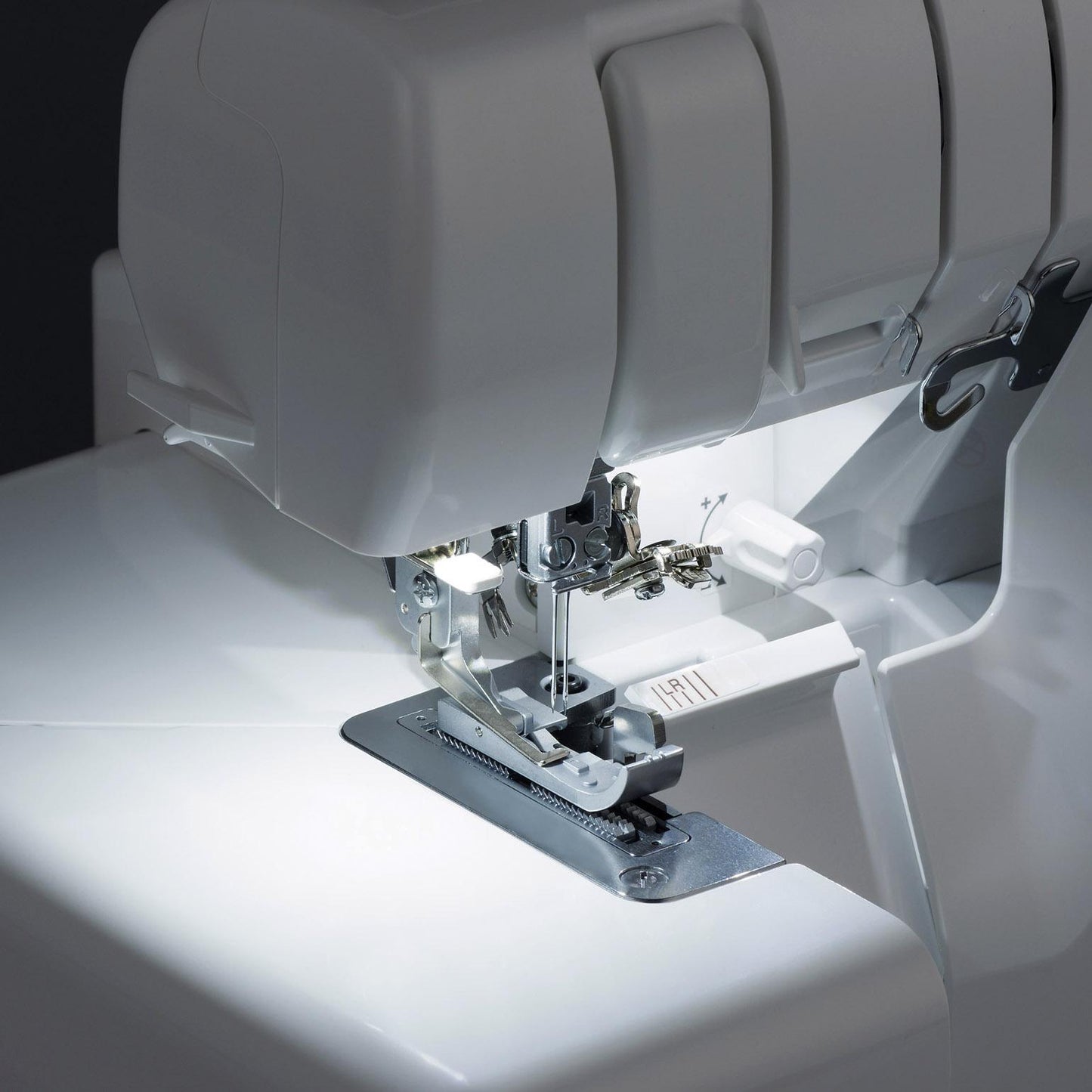

| Lighting | 3 LED |
| Throat Space | - |

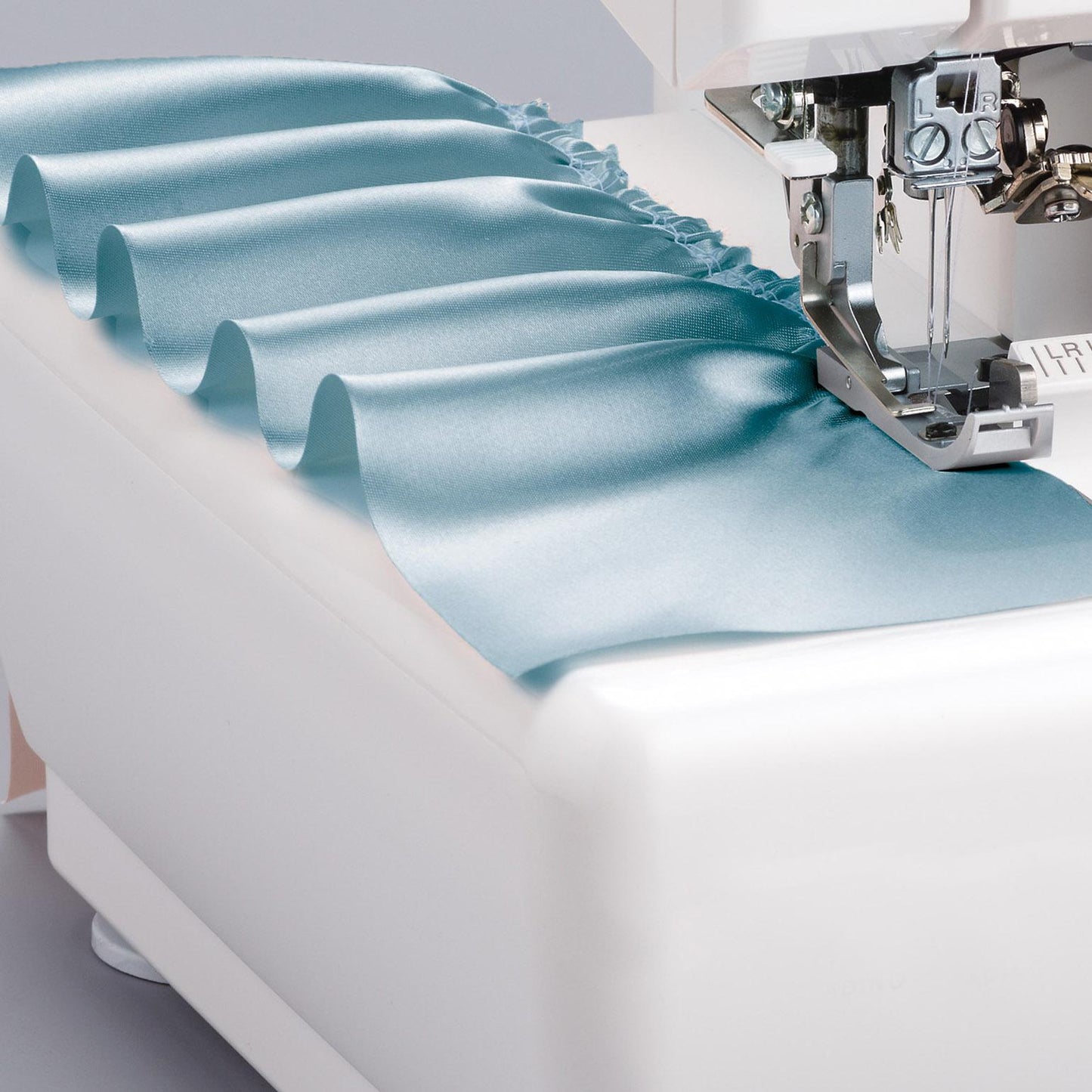

| True 2 to 1 ratio differential feed - ranging from 0.6 to 2 | ✔ |
| Knee Lift (Presser Foot) | ✘ |
| Variable Speed Control (easily set the maximum speed) | ✘ |
| Exclusive Fabric Support System | ✔ |
| Vertical Needle System – minimises needle deflection | ✔ |
| Advanced Features | |
| Combination Stitch Options | - |
| Coverstitch: triple, wide (6mm), narrow (3mm) & single chain stitch | - |
| Overlocking stitch Options: 4/3/2 Thread | ✔ |
| Exclusive Wave Stitch and Reverse Wave Stitch | ✔ |

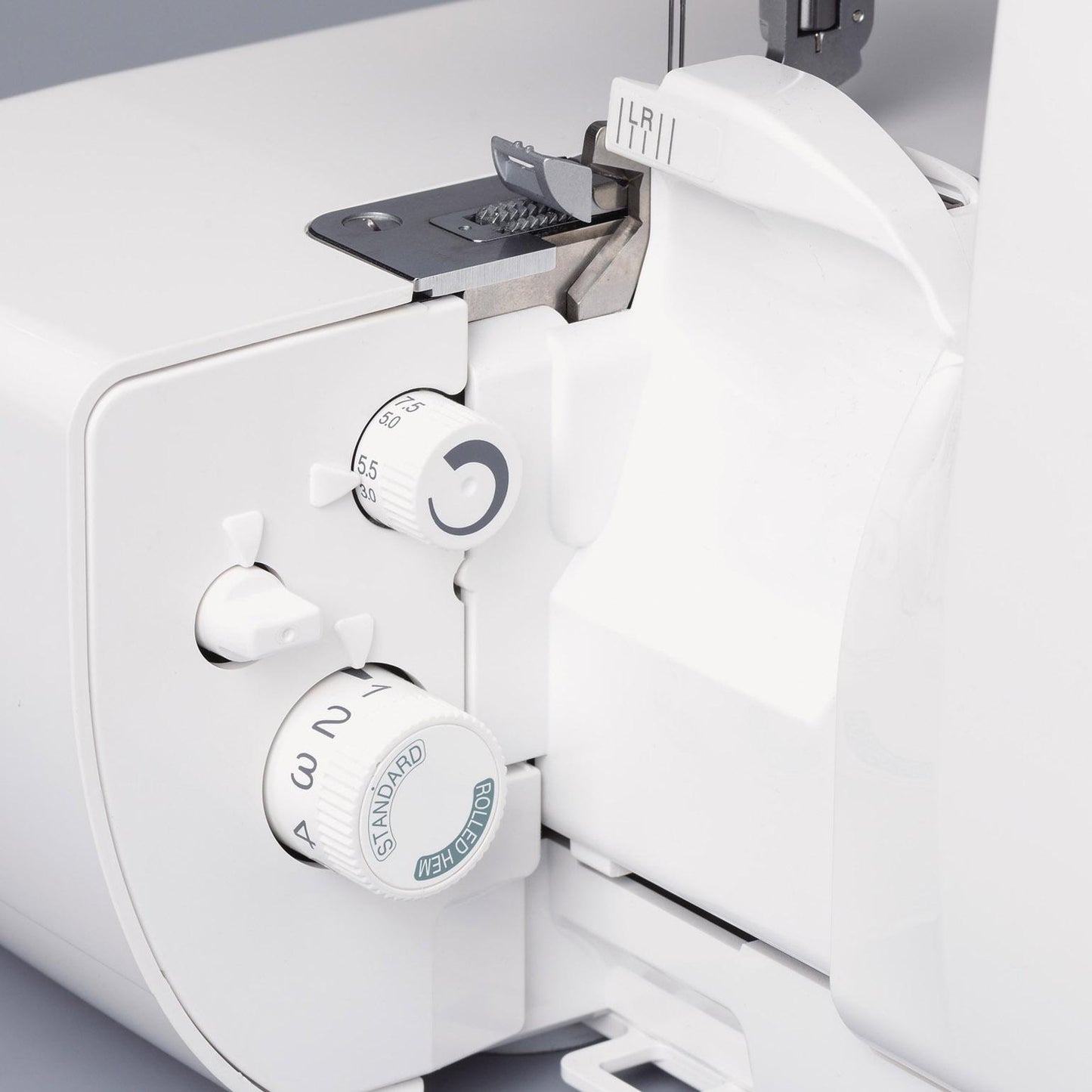

| Automatic rolled hem stitch with the turn of a dial | ✔ |
| Flatlock stitch option for seaming and decorative effects | ✔ |
| Stitch Length | 0.75 to 4mm |
| Stitch Width – Overlocking | 1.5 to 7.5mm |
| Stitch Width – Expressive (overlocking & coverstitch combined) | - |

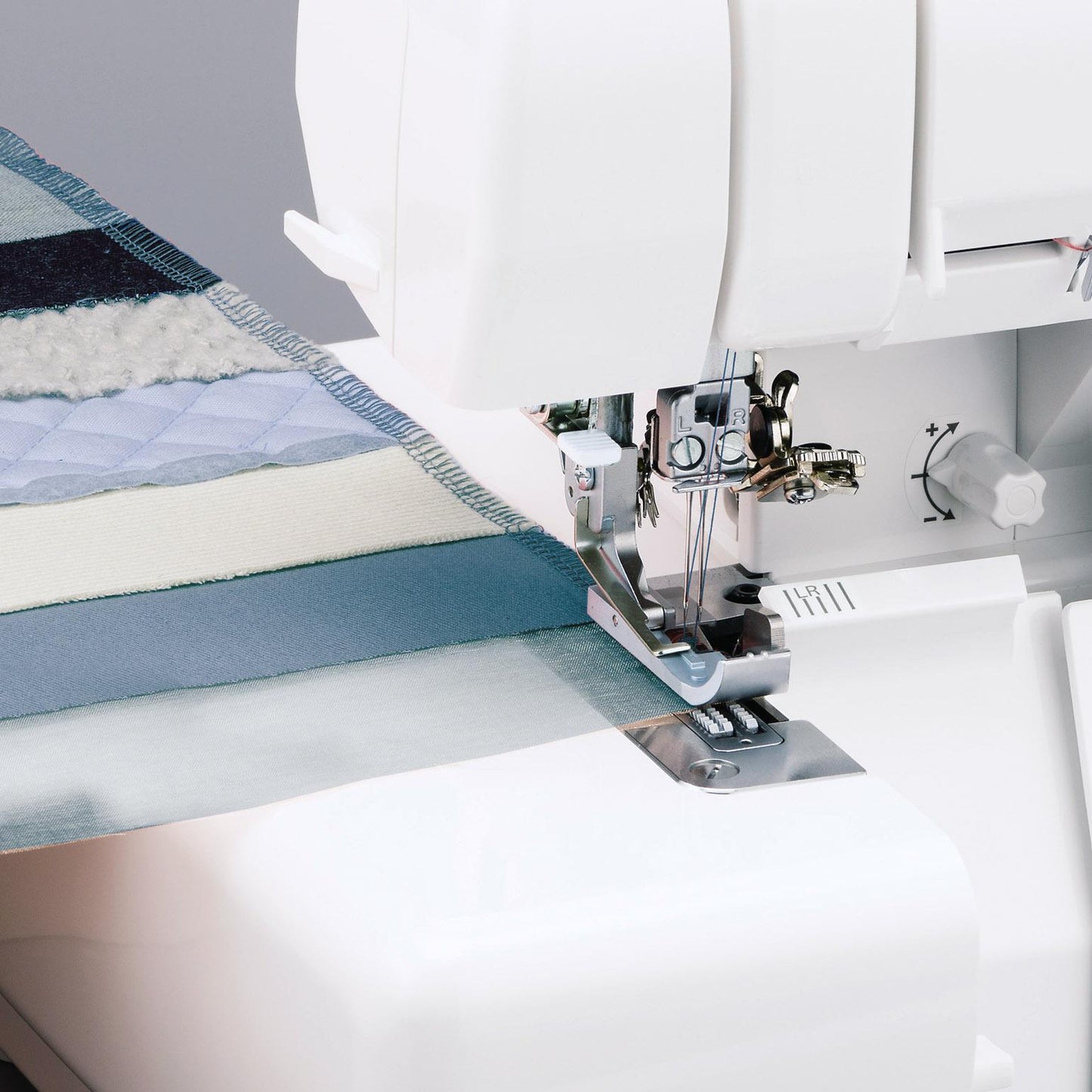

| Heavy duty cutting system – cut thick fabrics easily | ✔ |
| Presser Foot Pressure Adjustment | Adjustable Screw |
| Presser Foot Height | 6mm |
| Sewing speed (stitches per minute) | up to 1500 |
| Convenience Features | |
| Thread Stand Tray with Magnet | ✘ |
| Colour Coded Quick Reference Threading Guide | ✔ |
| Built-in Manual Needle Threader | ✔ |
| Position of presser foot lever | Rear |
| Included Foot | Grooved Foot |
| Built in Thread Cutter | ✔ |
| Guard plate for needle screws | ✘ |
| Built in Accessory Storage | ✔ |
| Safety Switches | 2 |
| Needle Drop Tray | ✔ |
| Electronic Foot Control | ✔ |
| Other Features | |
| Needle Type | HAx1SP |
| Machine Weight | 8.4KG |
| Made in Japan & 5 Year Conditional Warranty | ✔ |
| Optional Accessories | |
| Optional Feet Available | 11 |
| Optional Attachments | - |
| Compatibility with Knit Binders/Lap Seam Binder | - |
| Clear Extension Table Compatibility | CT-1 |
-
