Coverstitch

Coverstitch

BLCS-2

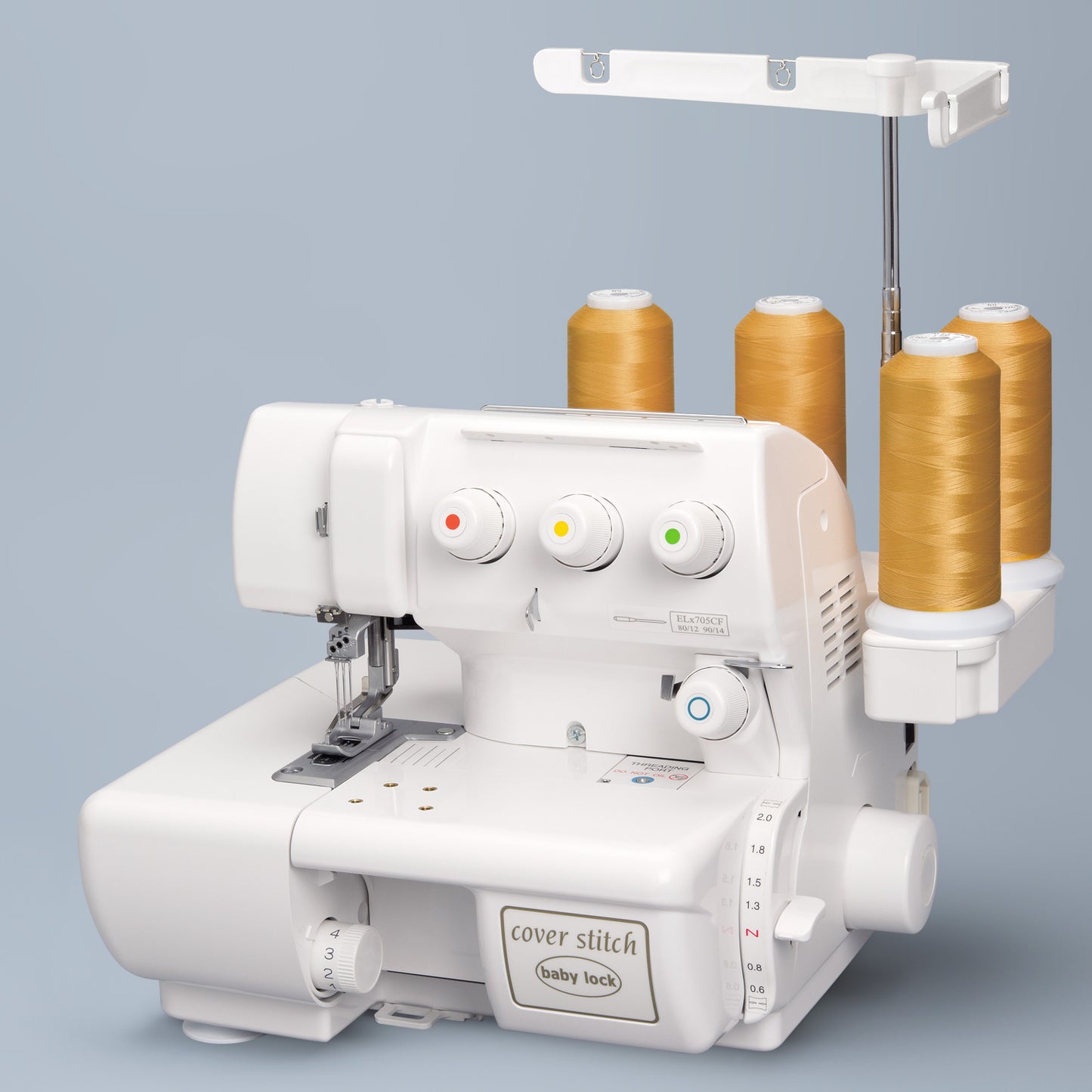

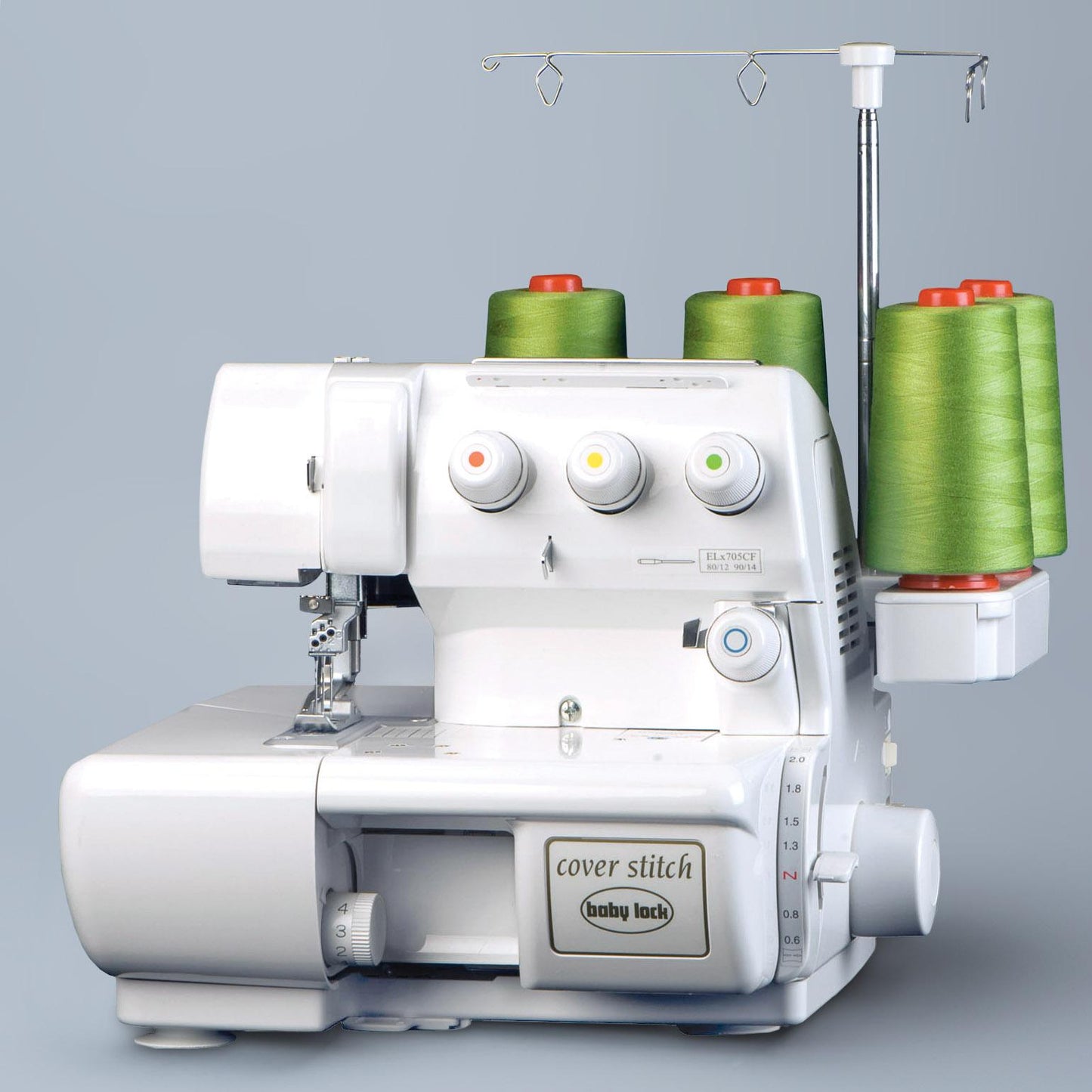

The Coverstitch is a 4-thread coverstitch/chain stitch machine that enables sewers to effortlessly create triple, wide and narrow coverstitch as well as chain stitch. It offers a professional finish on hems, belt loops, bindings and much more – it's the perfect partner to any overlocker or sewing machine.

The Coverstitch offers exclusive Baby Lock features such as JetAir™ Threading, tubular looper, full featured differential feed and the ability to chain off for ease-of-use. The chain off feature can also be used with decorative threads to create beautiful braids.

Coverstitch features:

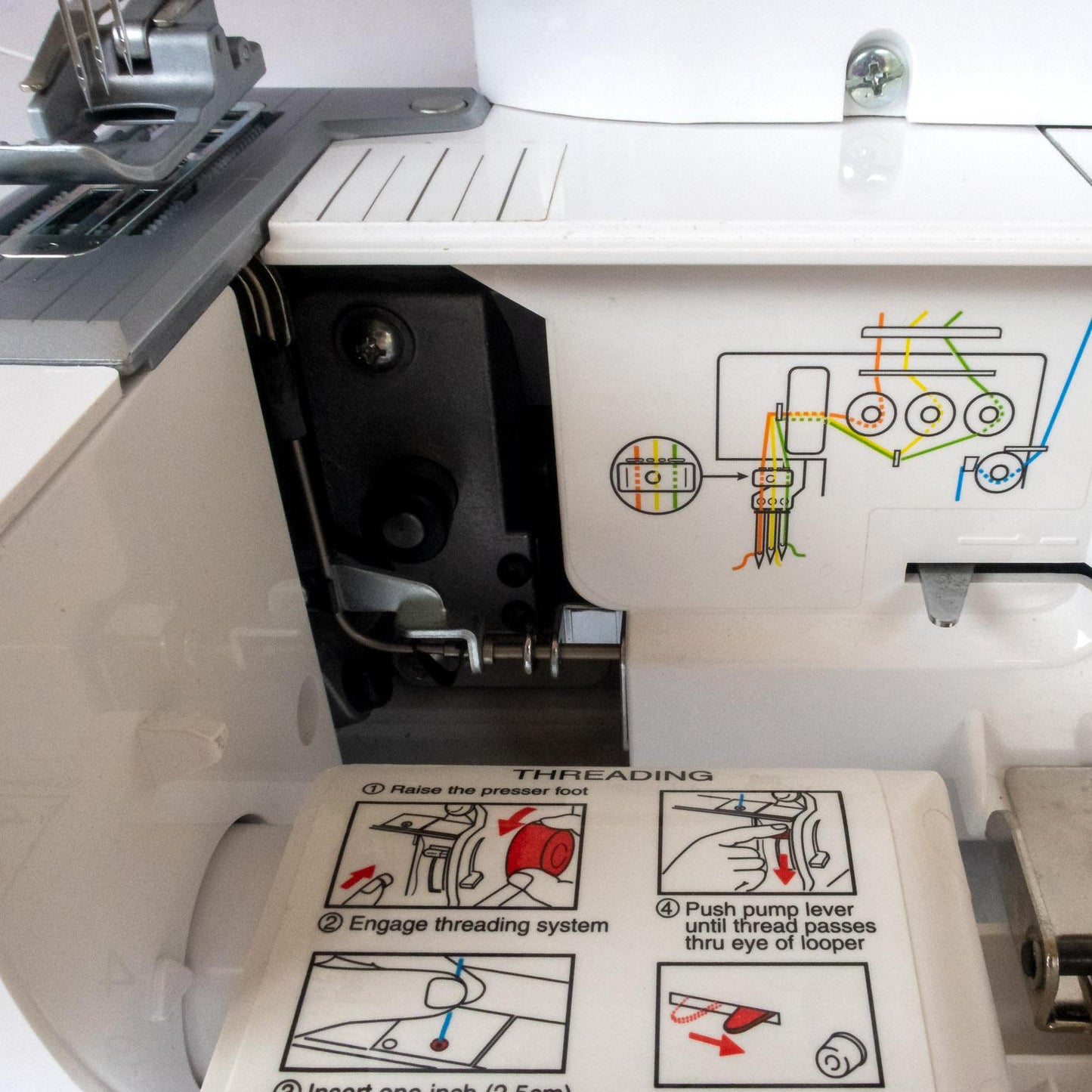

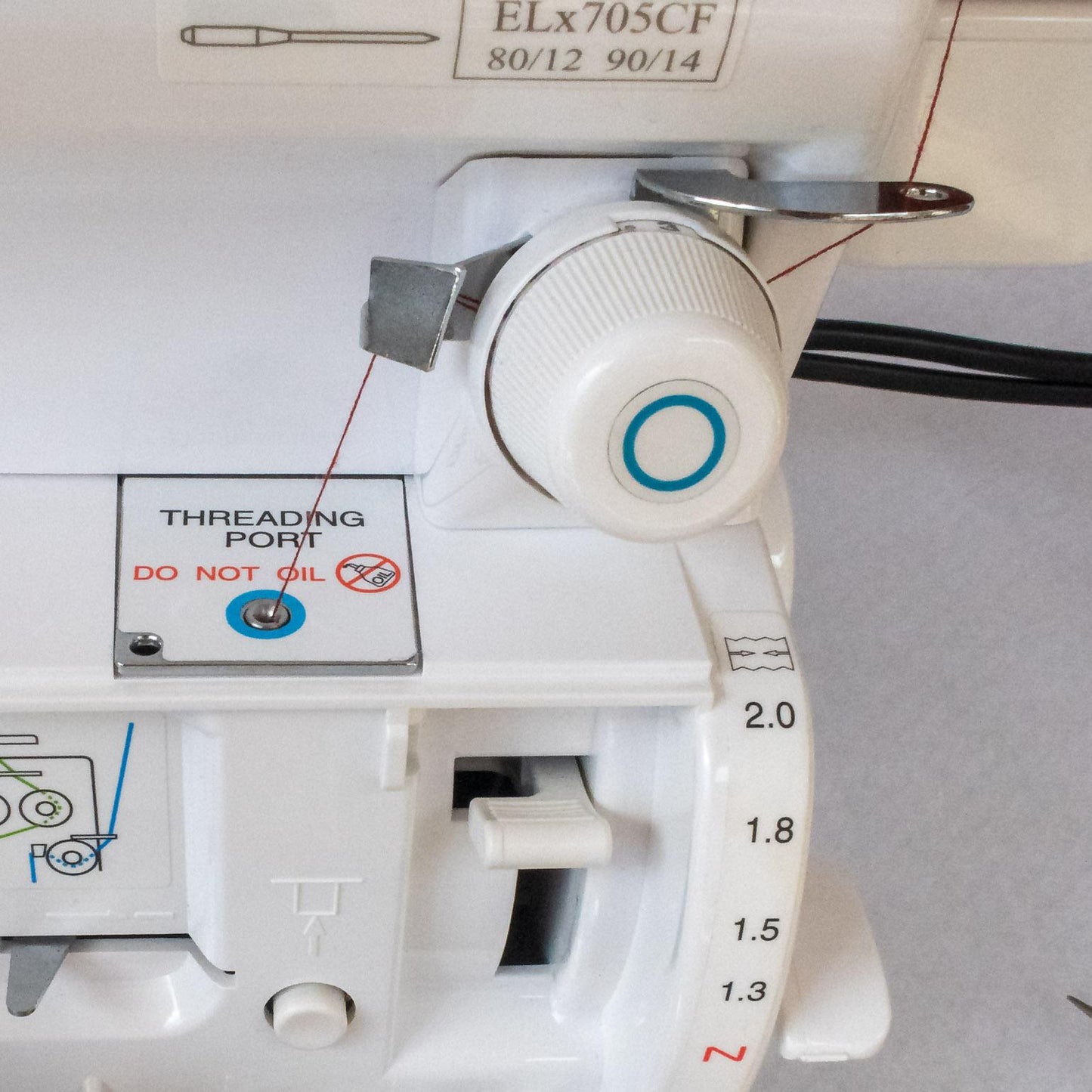

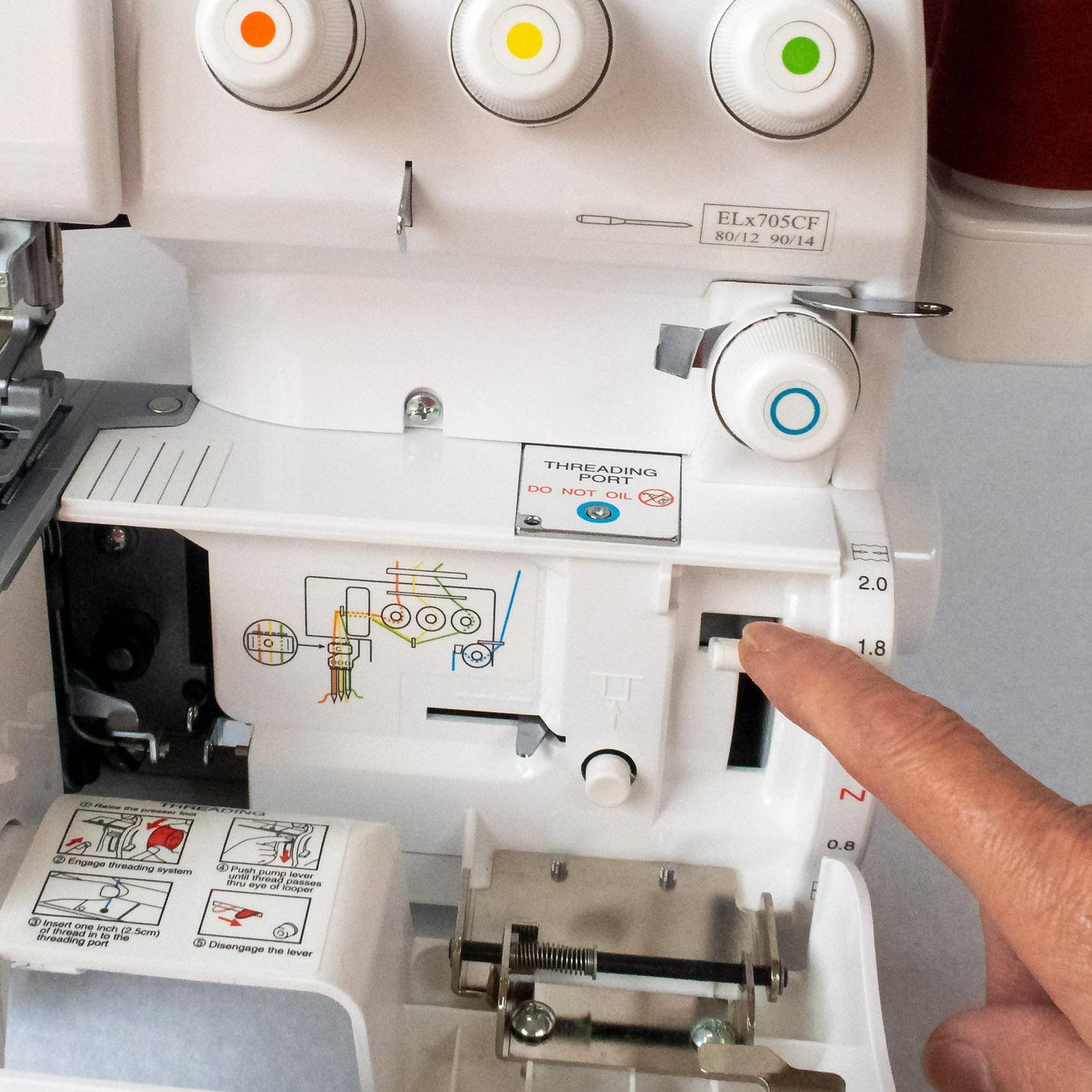

  • JetAir™ Threading for chain looper
  • Tension adjustments for each thread
  • 1,300 stitches per minute
  • True 2 to 1 ratio differential feed

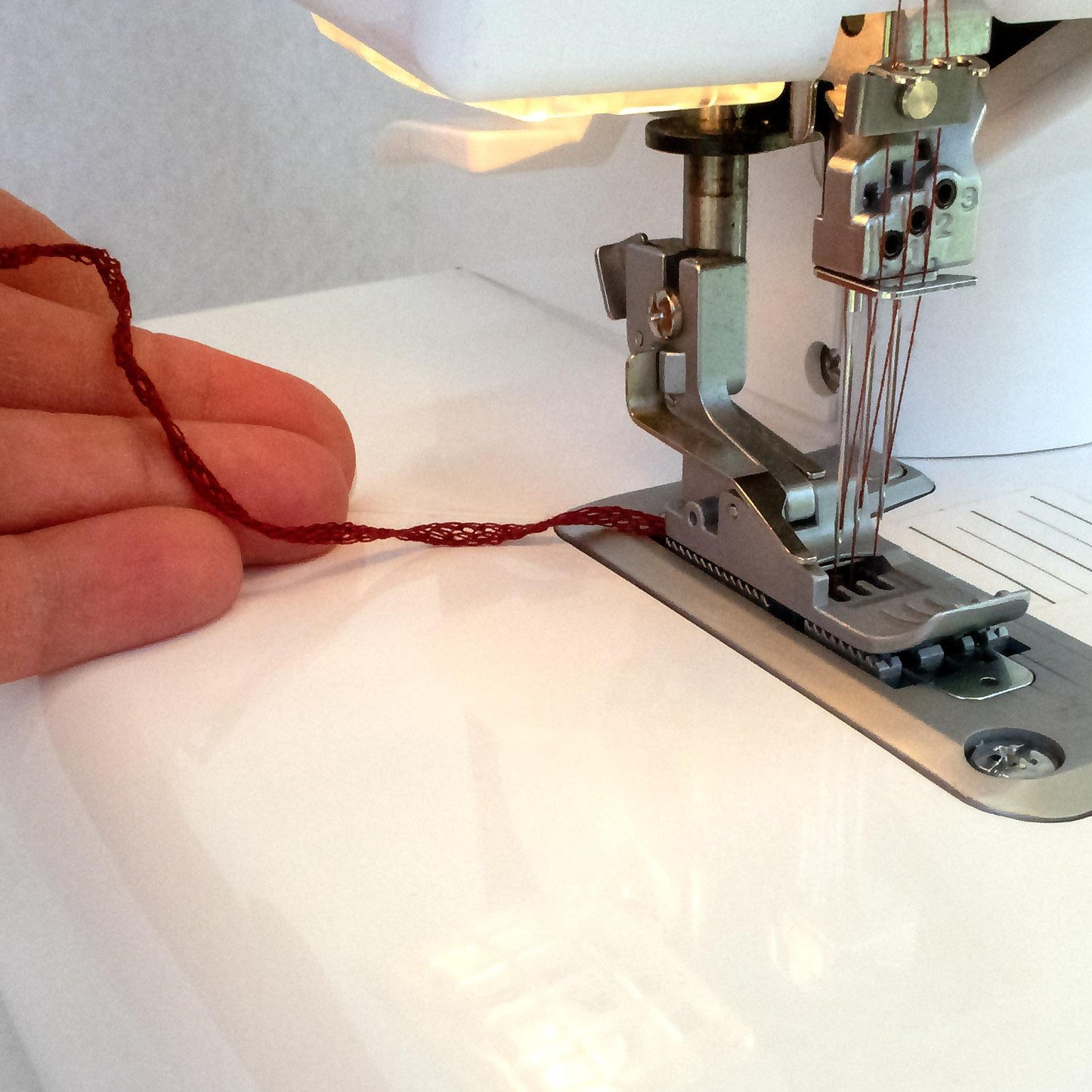

  • The ability to continually chain off

What's in the box

  • Instruction manual
  • Combination foot control & power cord
  • Package of assorted sized needles Organ ELx705CF
  • 2 x Guide fixing screws for table
  • Lint brush/needle insert tool
  • Manual needle threader
  • Allen screwdriver
  • Tweezers
  • Screwdriver
  • Looper threading tool
  • 2 x Chain/cover stitch needle screws
  • 4 x Thread nets
  • 4 x Spool caps with sponge
  • 4 x Spool caps
  • Machine cover
  • 4 x Cone holders
  • Standard presser foot
  • Accessory adaptor (used for optional attachments)

Downloads

Coverstitch Specifications

Specifications
Machine Type Coverstitch
Threading System JetAir™
Key Technology
Number of Threads 4
RevolutionAir™ Threading – Needles & Loopers ✘
ExtraordinAir™ Threading ✘
NEW JetAir™ (easier looper threader engagement) ✘
JetAir™ Threading ✔
Tension System Tension Discs
Lighting Standard Globe
Throat Space -

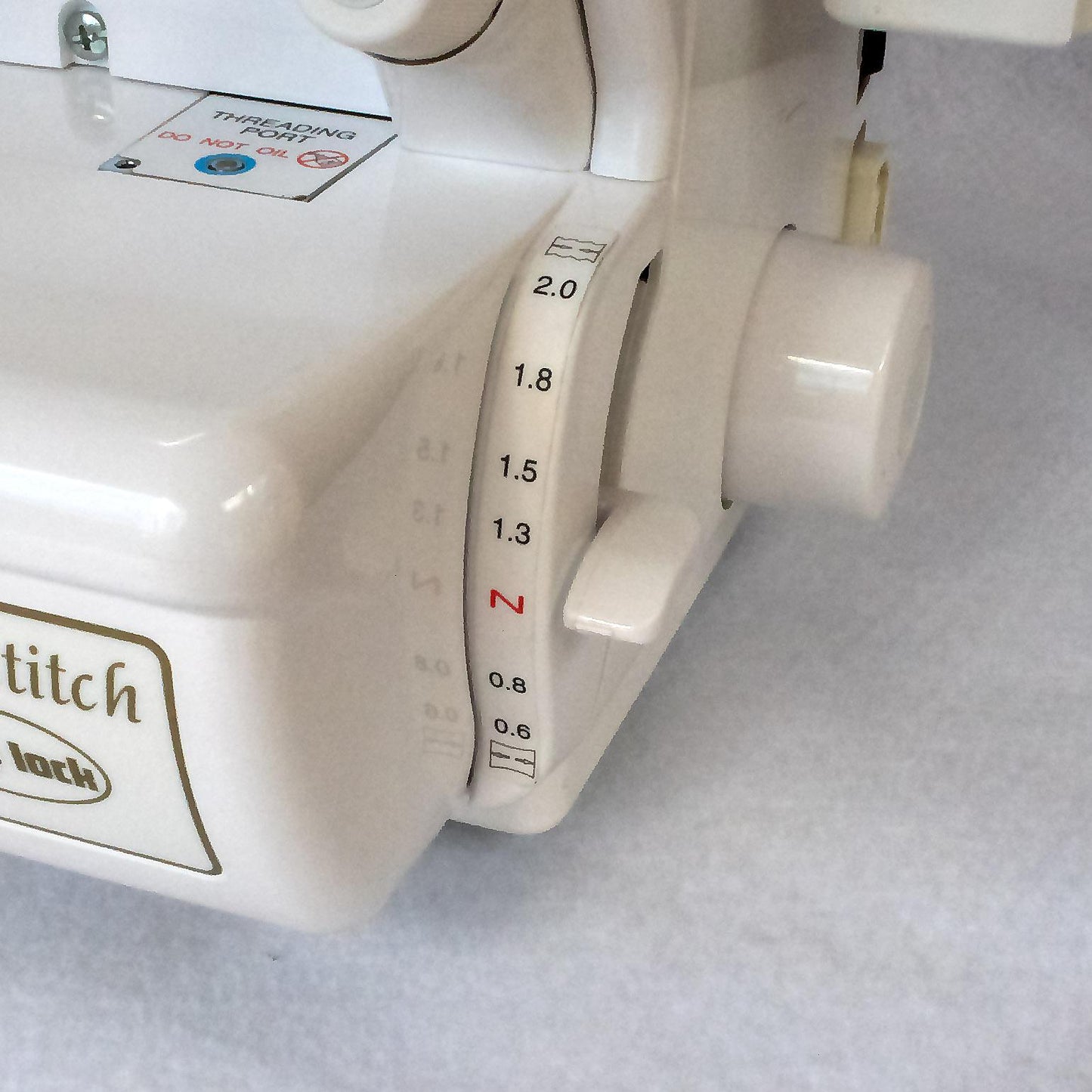

True 2 to 1 ratio differential feed - ranging from 0.6 to 2 ✔
Knee Lift (Presser Foot) ✘
Variable Speed Control (easily set the maximum speed) ✘
Exclusive Fabric Support System ✘

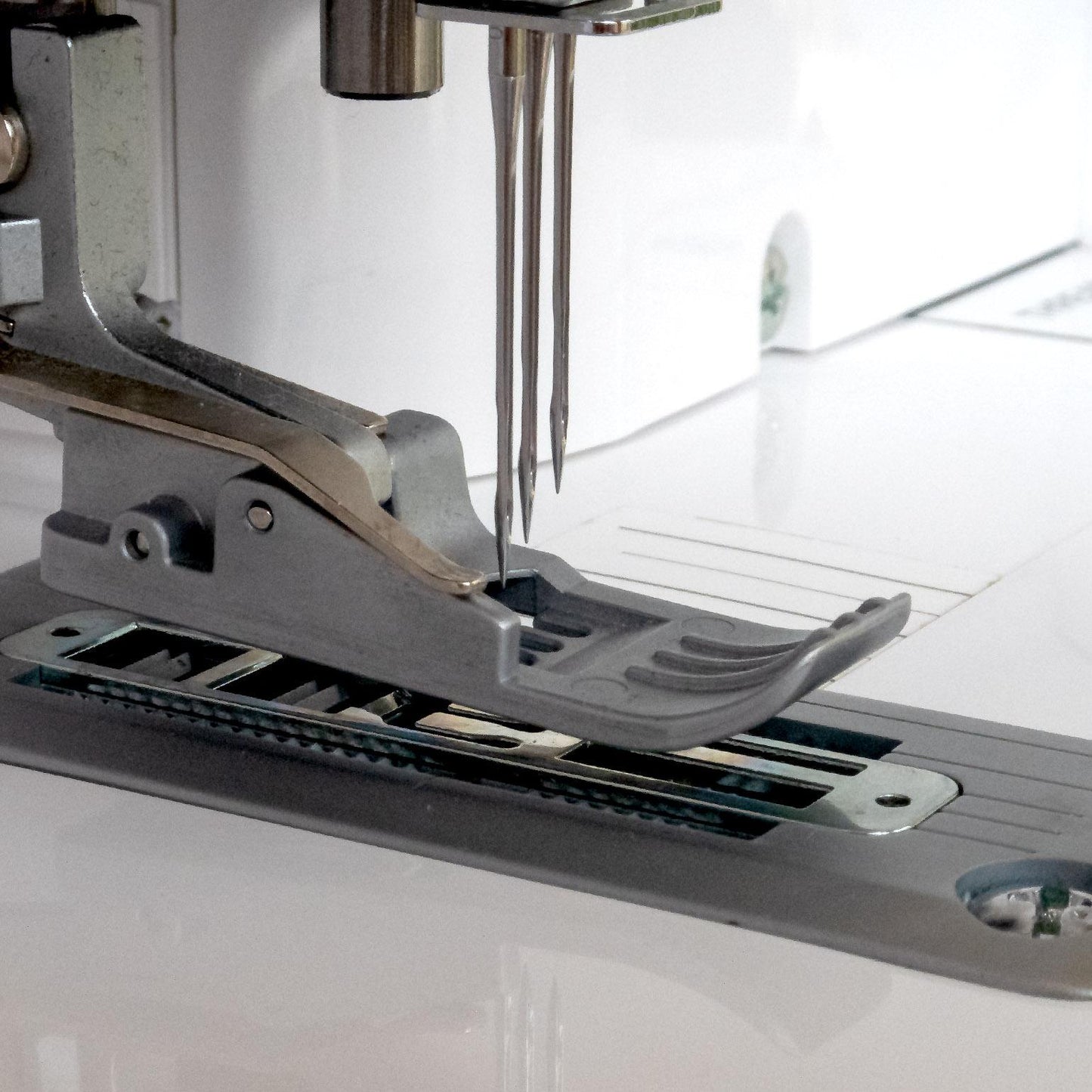

Vertical Needle System – minimises needle deflection ✔
Advanced Features
Combination Stitch Options -

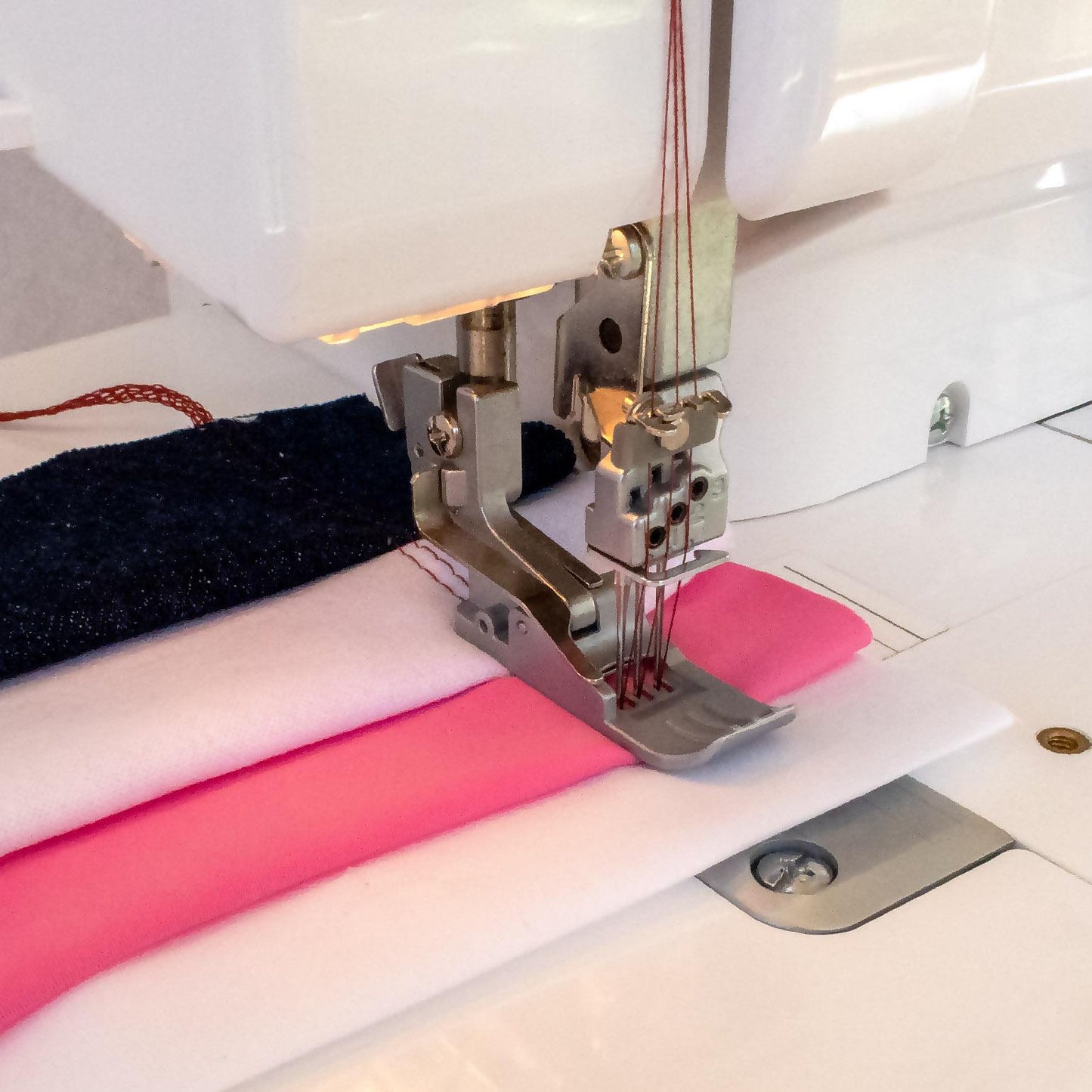

Coverstitch: triple, wide (6mm), narrow (3mm) & single chain stitch ✔
Overlocking stitch Options: 4/3/2 Thread ✘
Exclusive Wave Stitch and Reverse Wave Stitch ✘
Automatic rolled hem stitch with the turn of a dial ✘
Flatlock stitch option for seaming and decorative effects ✘
Stitch Length 1 to 4mm
Stitch Width – Overlocking -
Stitch Width – Expressive (overlocking & coverstitch combined) -
Heavy duty cutting system – cut thick fabrics easily ✘
Presser Foot Pressure Adjustment Adjustable Screw
Presser Foot Height 4.5mm
Sewing speed (stitches per minute) up to 1300
Convenience Features
Thread Stand Tray with Magnet ✘
Colour Coded Quick Reference Threading Guide ✘
Built-in Manual Needle Threader ✘
Position of presser foot lever Rear
Included Foot Flat Sole Foot
Built in Thread Cutter ✔
Guard plate for needle screws ✘
Built in Accessory Storage ✔
Safety Switches ✘
Needle Drop Tray ✔
Electronic Foot Control ✔
Other Features
Needle Type EL 705 CF
Machine Weight 7.3KG
Made in Japan & 5 Year Conditional Warranty ✔
Optional Accessories
Optional Feet Available 8
Optional Attachments 18
Compatibility with Knit Binders/Lap Seam Binder ✔
Clear Extension Table Compatibility CT-1
